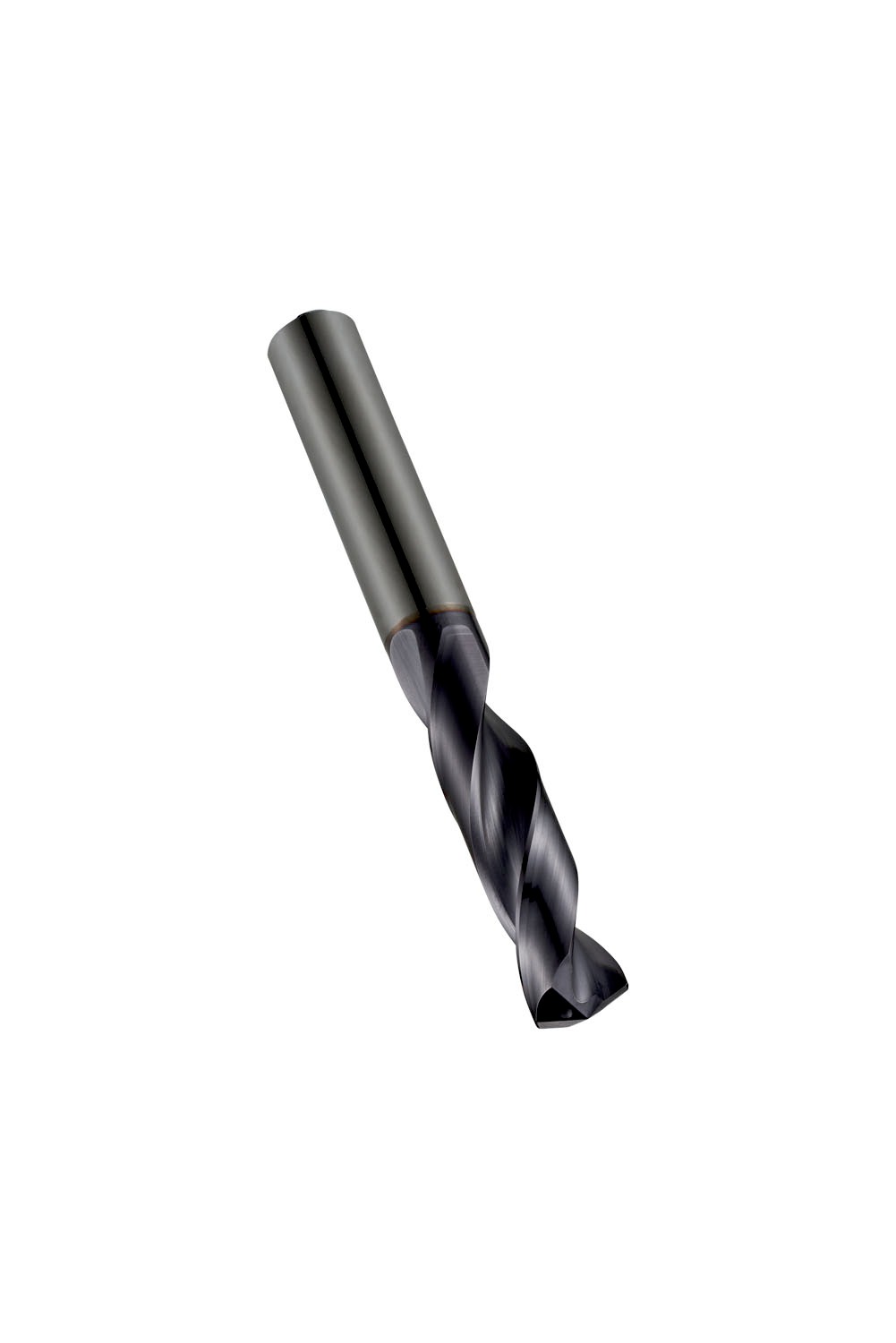

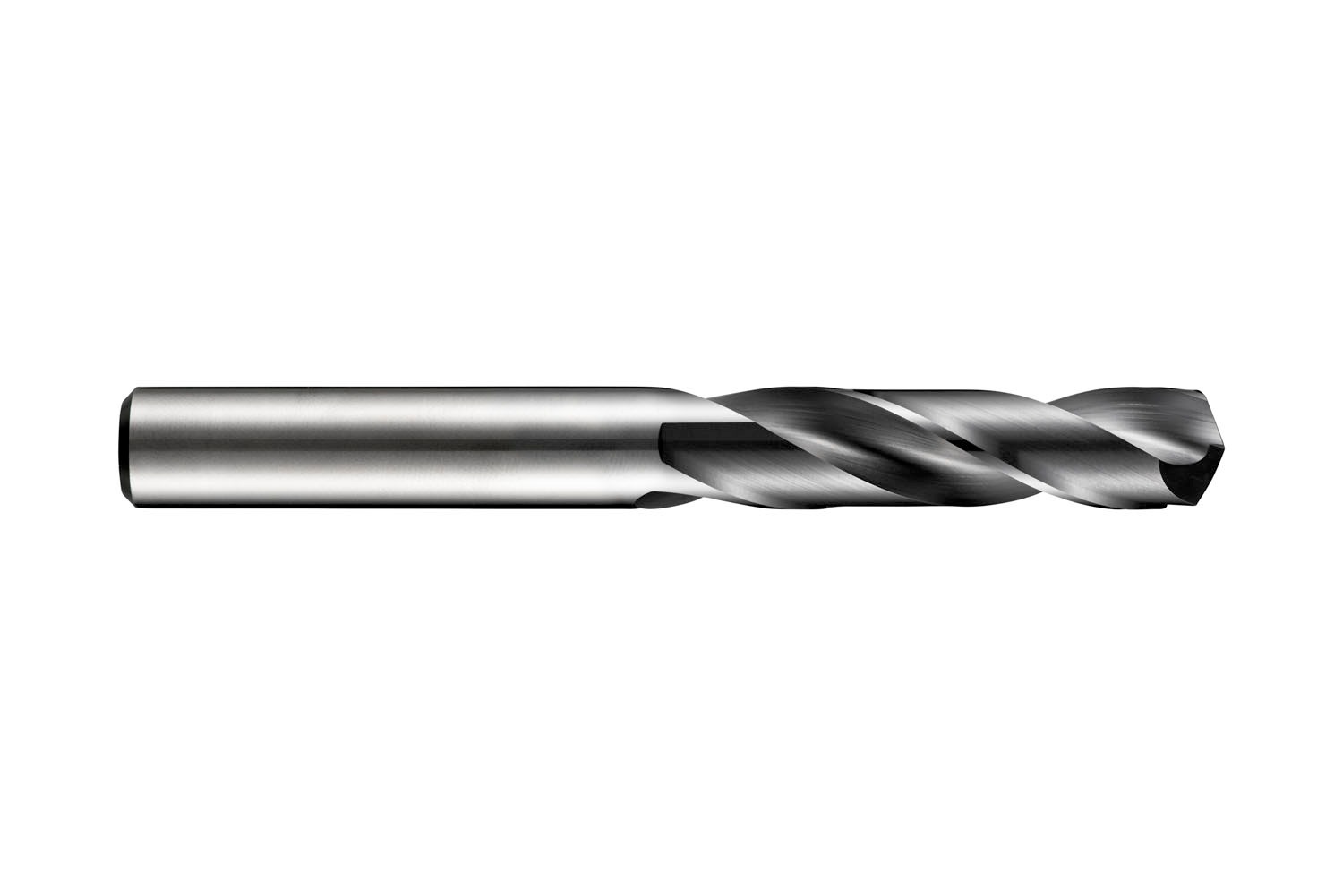

DORMER R45711.2 Carbide Drills

Product Code: R45711.2

$285.52$259.56 Ex. GST

Product Code: R45711.2 SKU R45711.2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

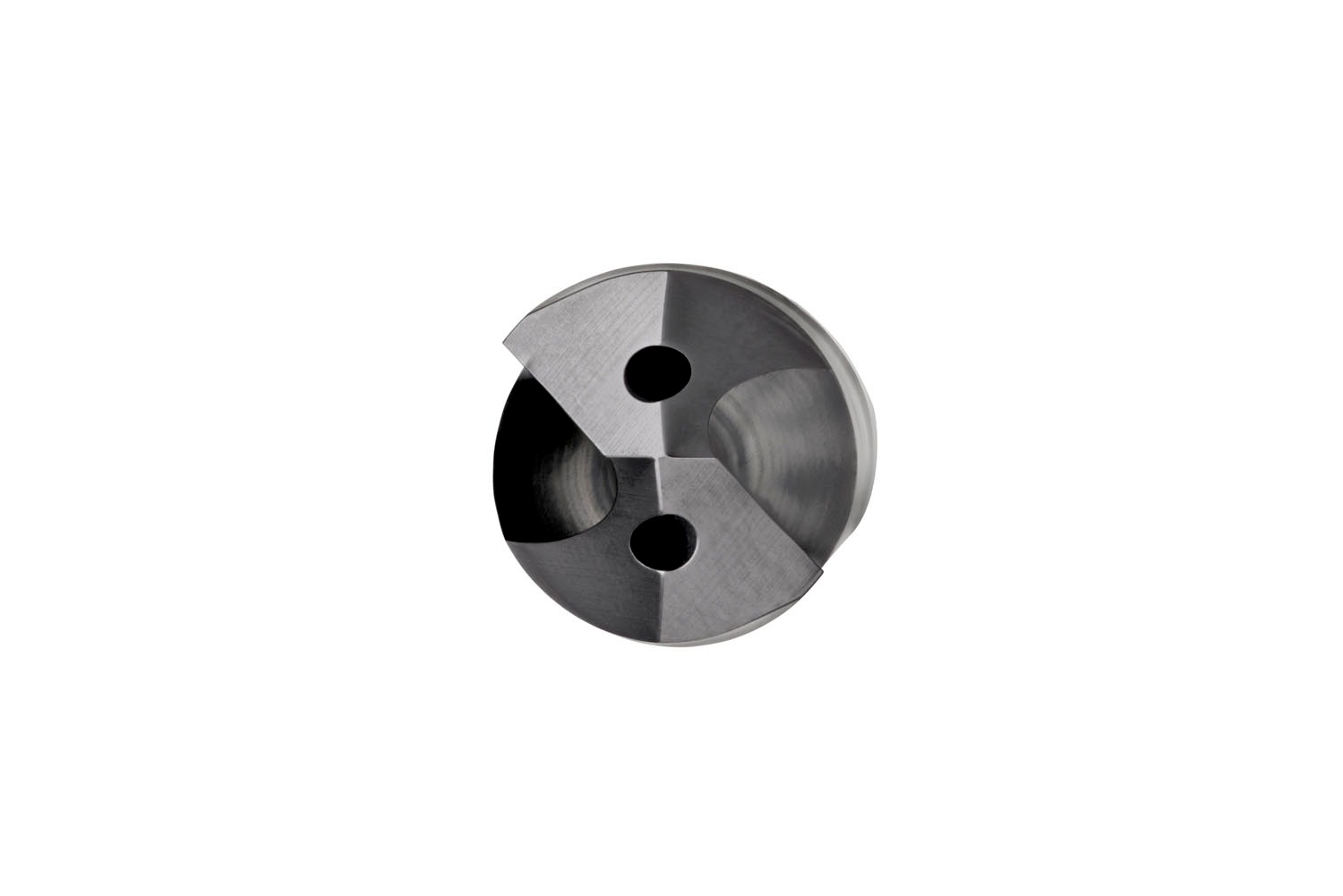

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 11.2mm with an overall length of 102mm and flute length of 55mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.2772 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760614754
Product number (SAP): 86019370
Ordering code ANSI: R45711.2
Product Line: FORCE X
Gross weight – grams: 121.3

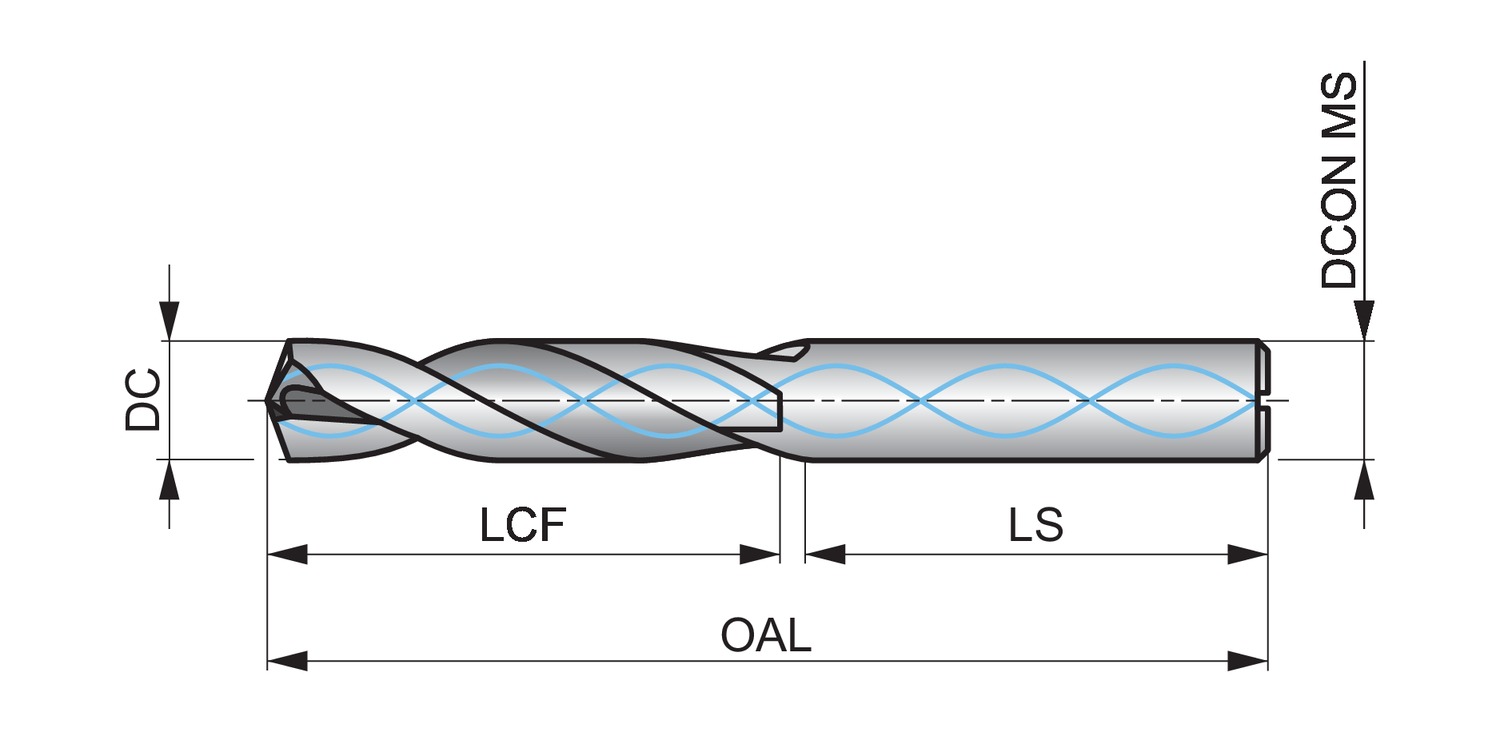

Cutting diameter – millimeter (DC): 11.2 mm
Cutting diameter – inch (DC): 0.4409 inch
Length chip flute – millimeter (LCF): 55 mm
Overall length – millimeter (OAL): 102 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 2.1654 inch
ISO: R45711.2

Brand

DORMER
