DORMER R45714.0 Carbide Drills

Product Code: R45714.0

$370.49$336.81 Ex. GST

Product Code: R45714.0 SKU R45714.0 Categories , ,
DORMER R45714.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

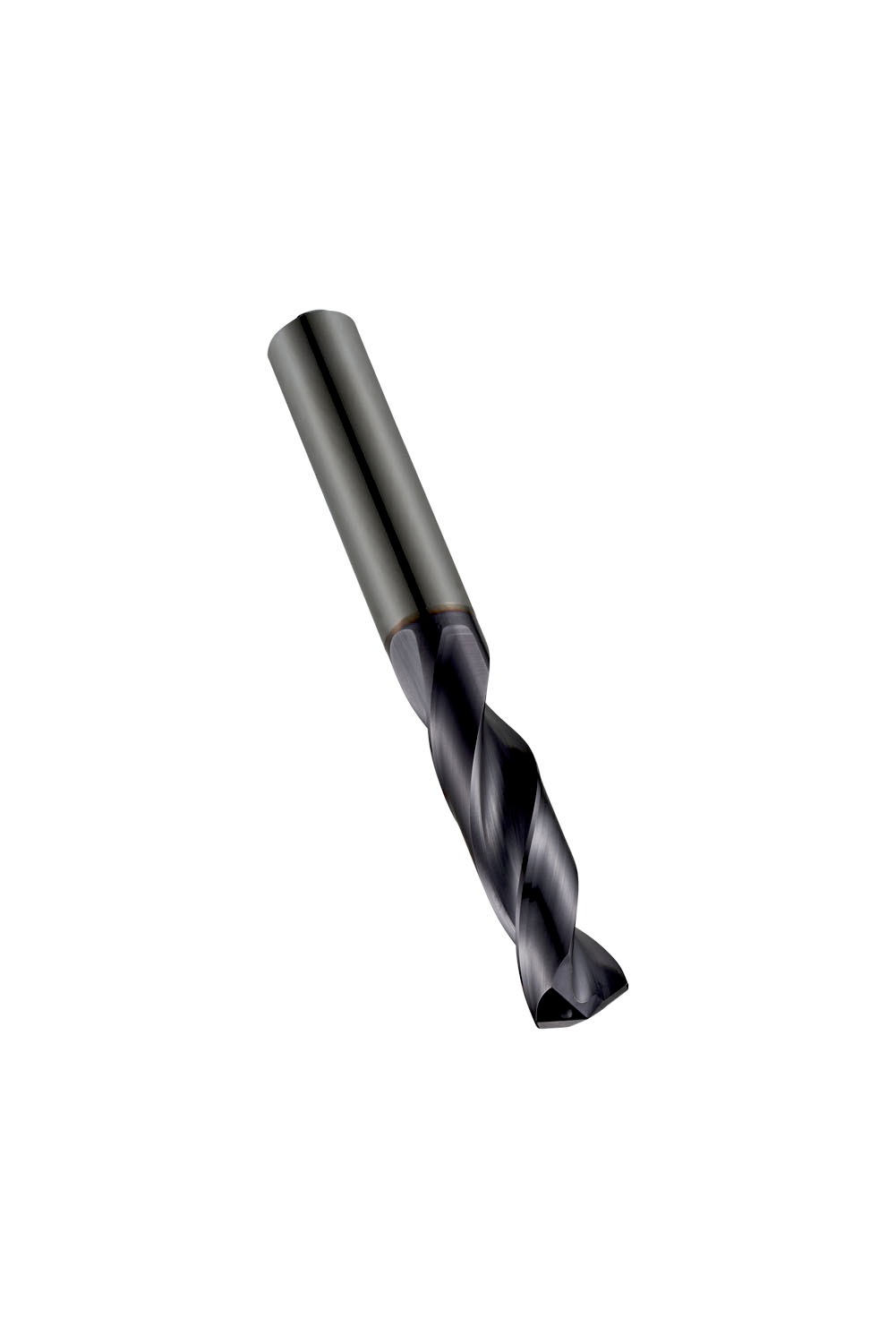

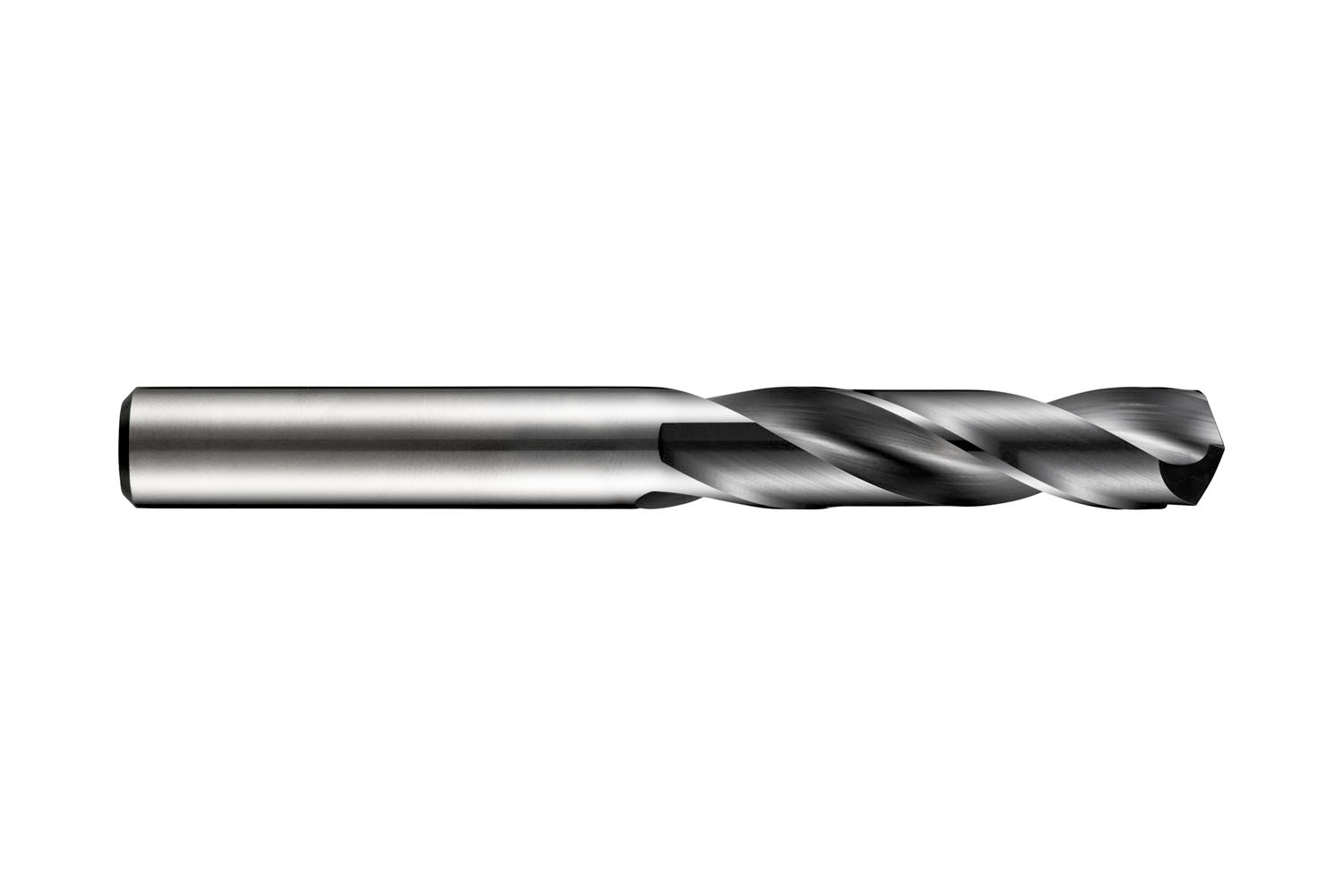

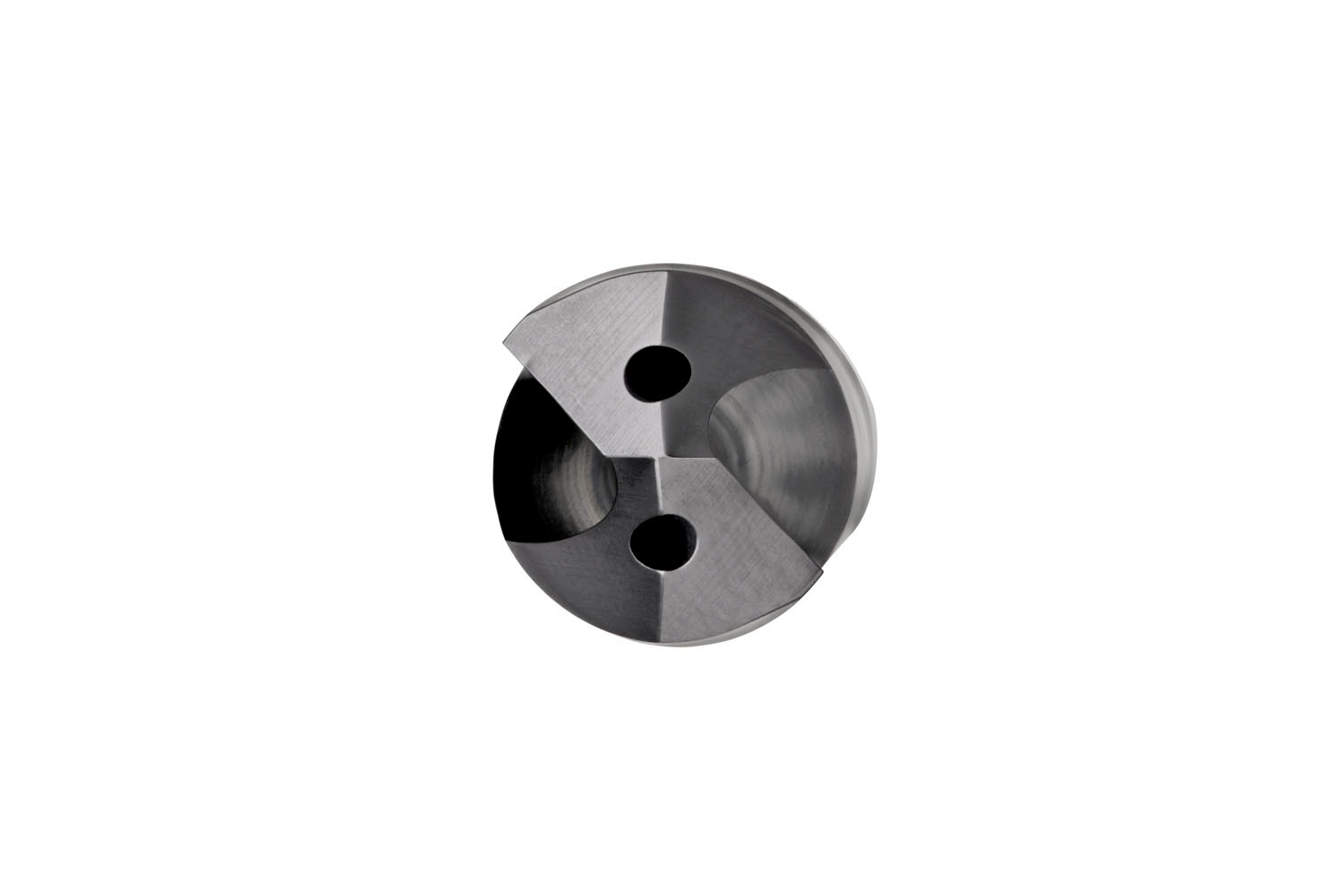

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 14mm with an overall length of 107mm and flute length of 60mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.3597 kg
Dimensions
barcode
Additional Information

Description: Value

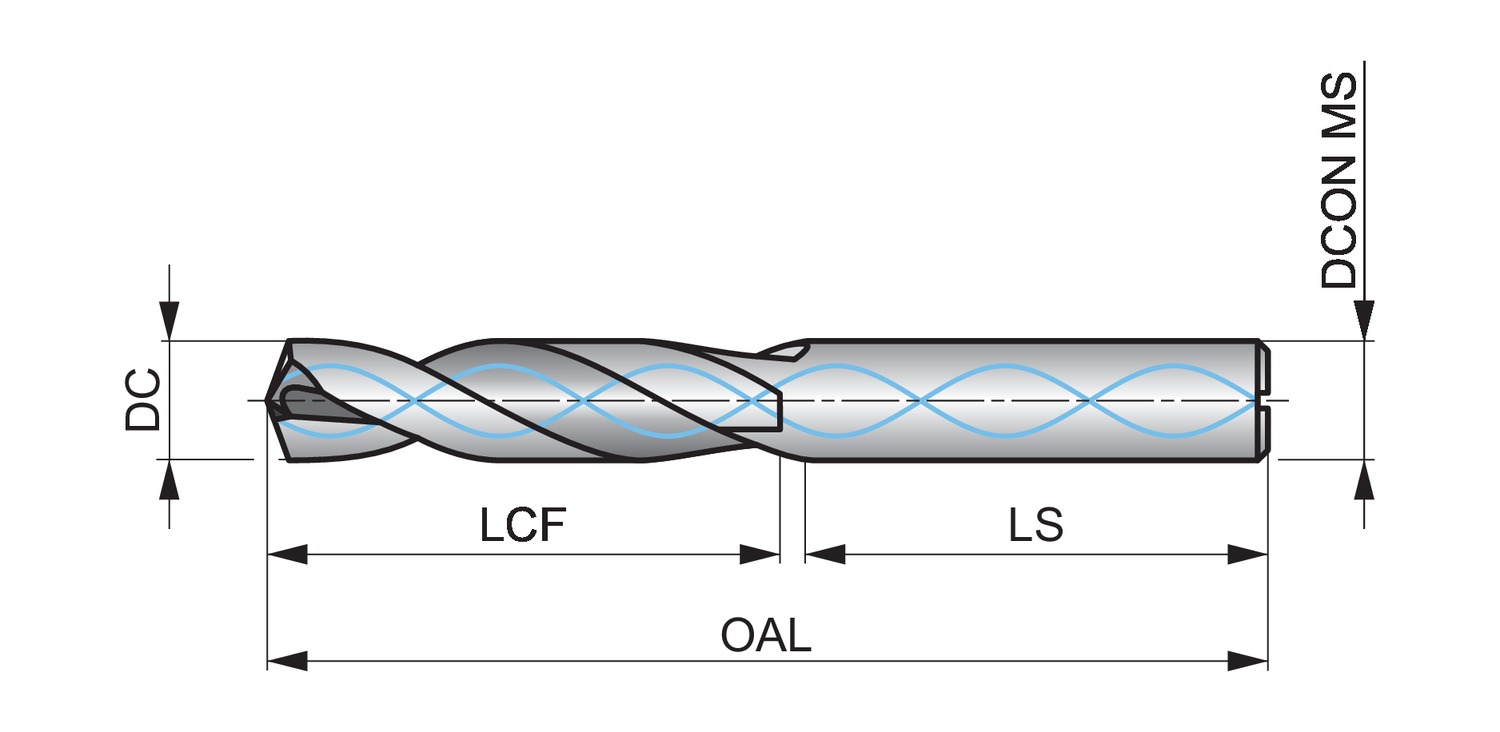

EAN number: 7320760614822 Product number (SAP): 86019390 Ordering code ANSI: R45714.0 Product Line: FORCE X Gross weight: 178 g Cutting diameter (DC): 14 mm Cutting diameter (DC): 0.5512 inch Length chip flute (LCF): 60 mm Overall length (OAL): 107 mm Shank length (LS): 45 mm Connection diameter (DCON MS): 14 mm Length chip flute (LCF): 2.3622 inch ISO: R45714.0

Brand

DORMER
