DORMER R45714.8 Carbide Drills

Product Code: R45714.8

$476.99$433.63 Ex. GST

Product Code: R45714.8 SKU R45714.8 Categories , ,

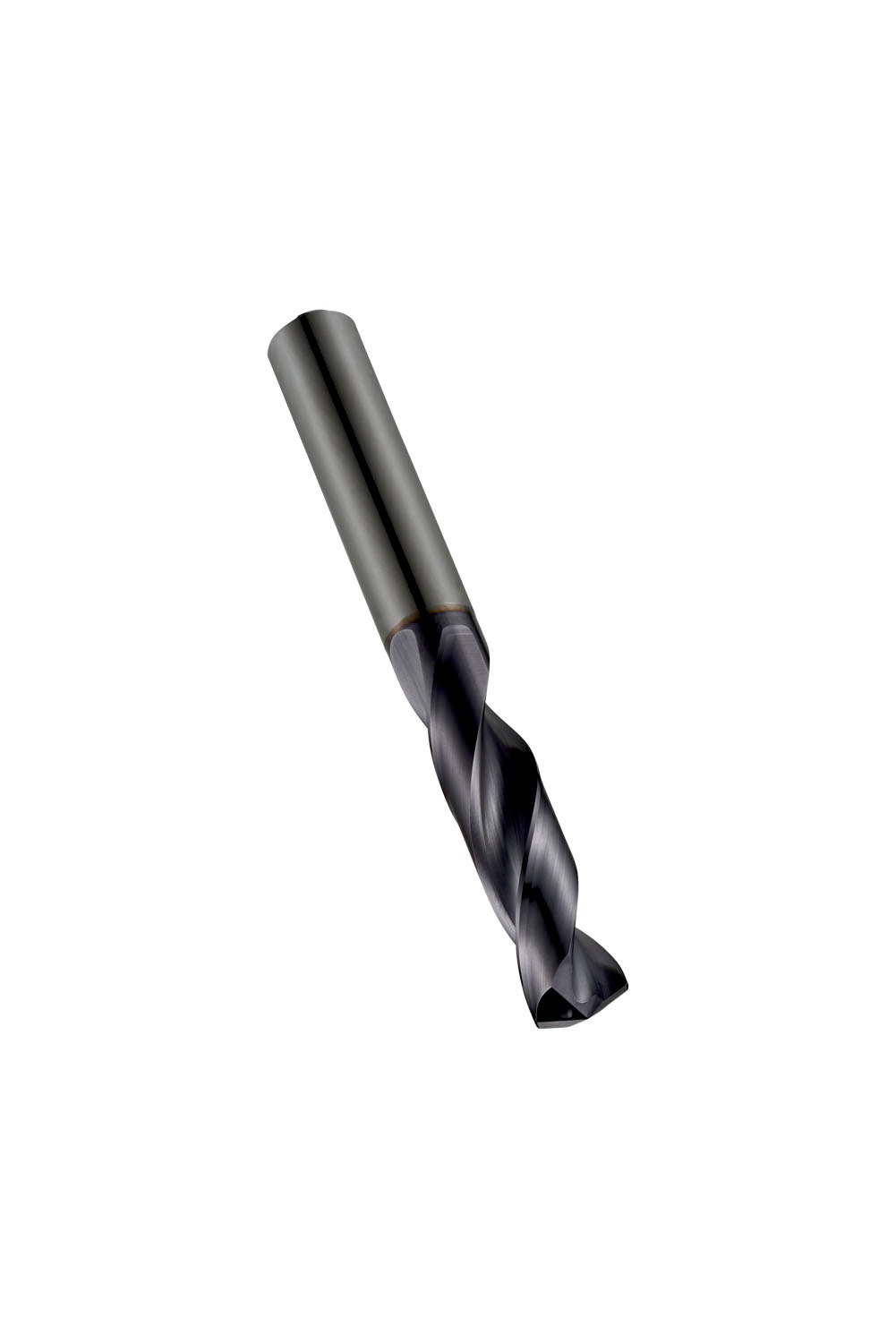

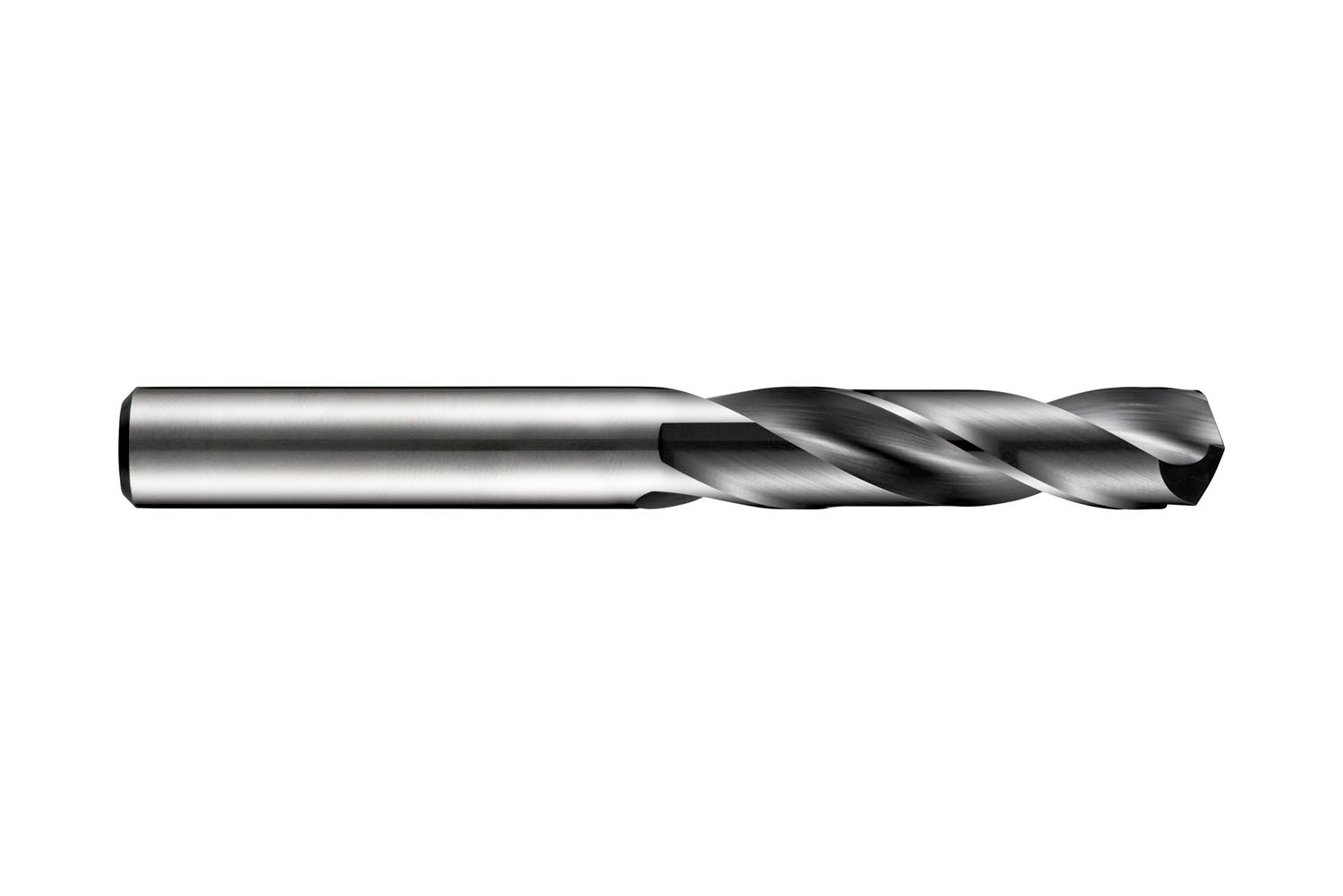

DORMER R45714.8 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

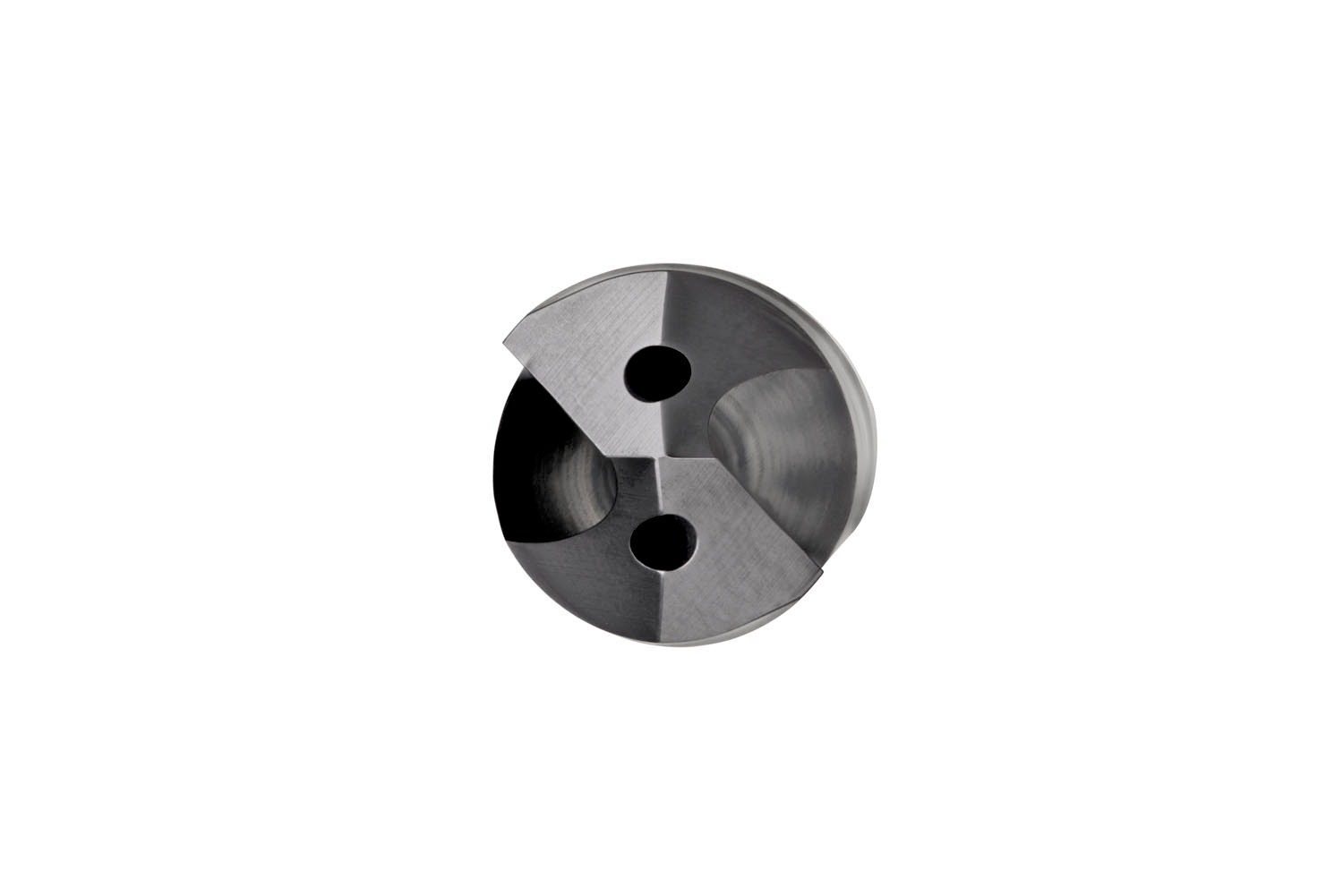

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 14.8mm with an overall length of 115mm and flute length of 65mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.4631 kg
Dimensions
barcode
Additional Information

Description: Value

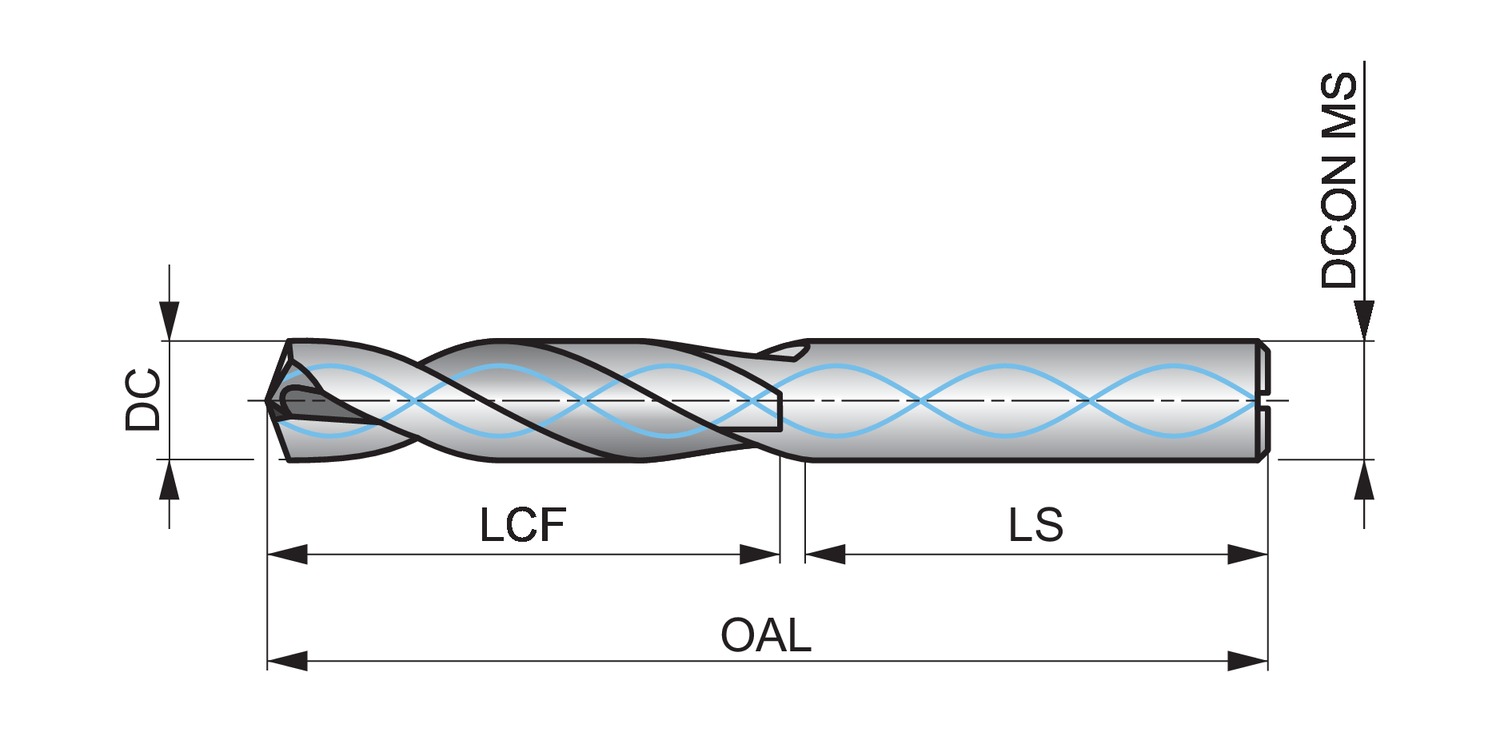

EAN number: 7320760135006 Product number (SAP): 86019393 Ordering code ANSI: R45714.8 Product Line: FORCE X Gross weight: 234 g Cutting diameter (DC): 14.8 mm Cutting diameter (DC): 0.5827 inch Length chip flute (LCF): 65 mm Overall length (OAL): 115 mm Shank length (LS): 48 mm Connection diameter (DCON MS): 16 mm Length chip flute (LCF): 2.5591 inch ISO: R45714.8

Brand

DORMER
