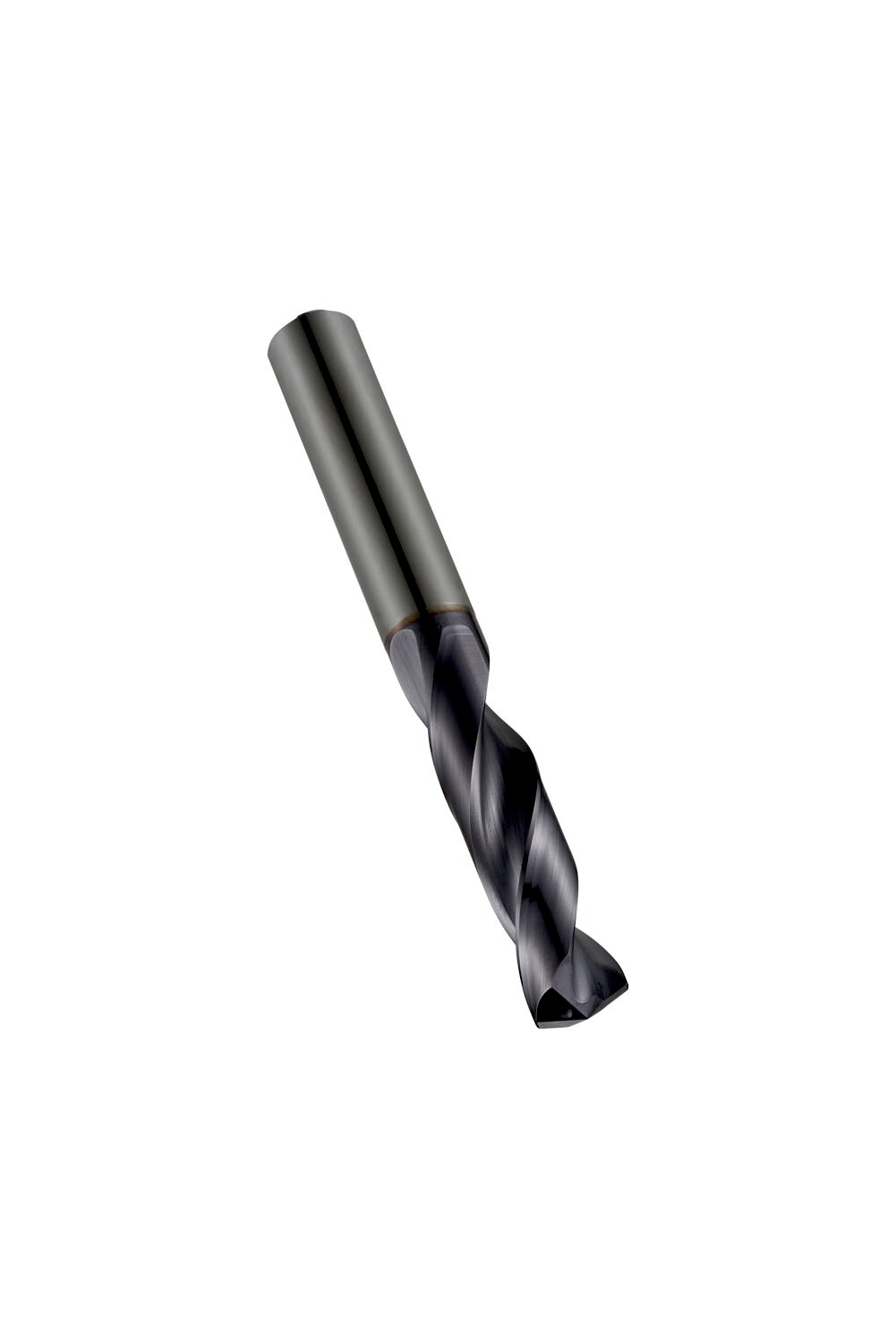

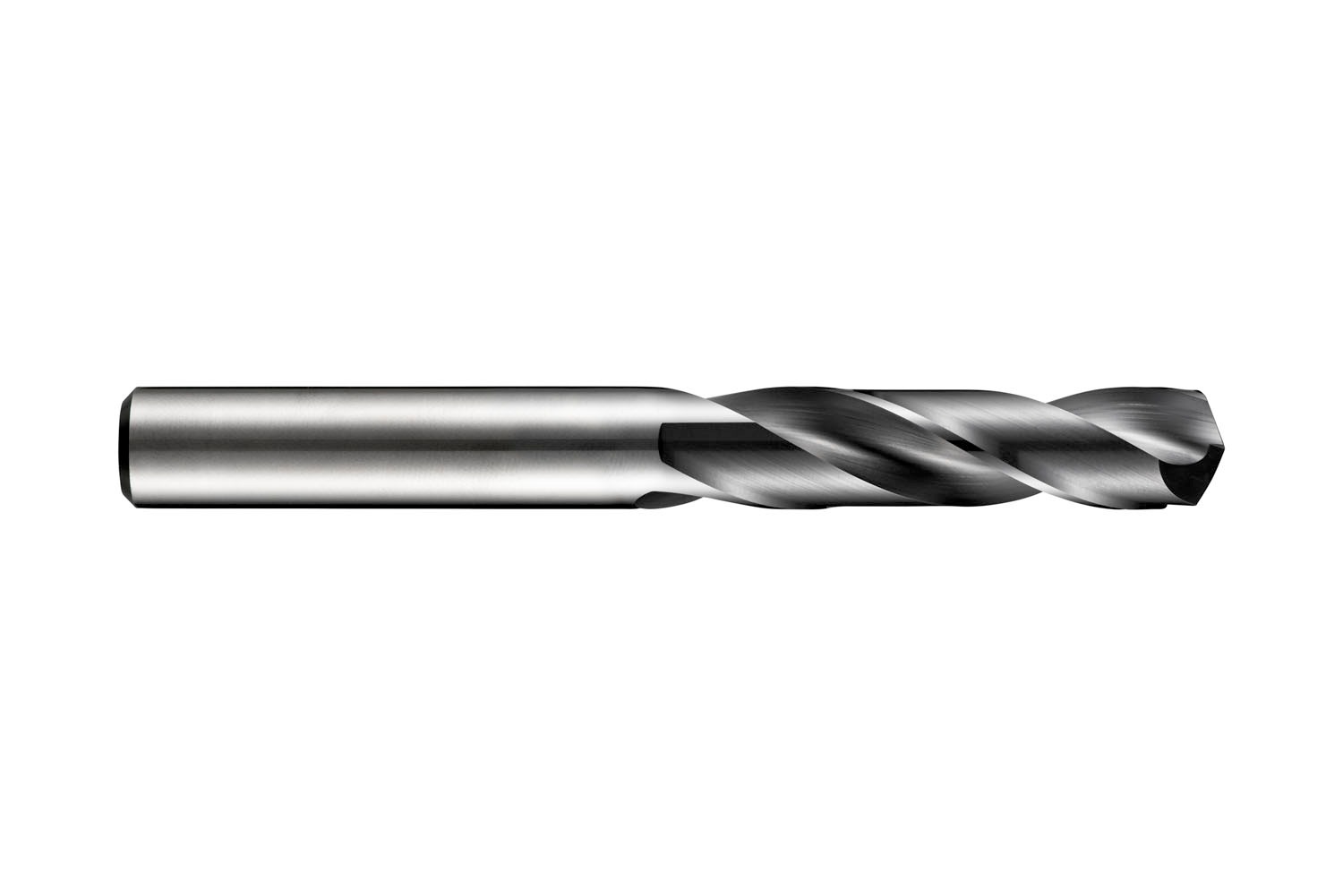

DORMER R4575/32 Carbide Drills

Product Code: R4575/32

$146.16$132.87 Ex. GST

Product Code: R4575/32 SKU R4575/32 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

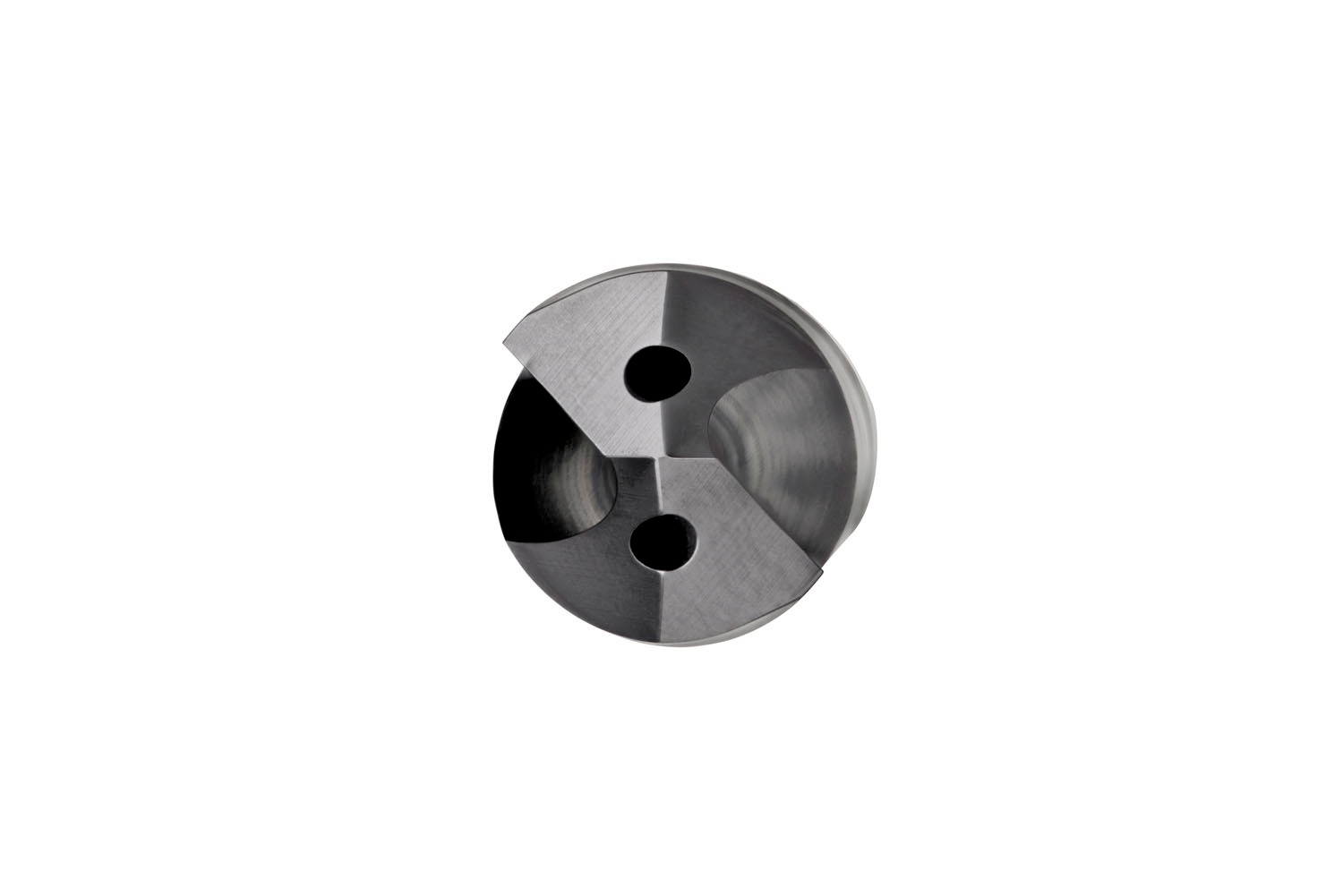

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1563″ (5/32) with an overall length of 66mm and flute length of 24mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1419 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760624753
Product number (SAP): 86019464
Ordering code ANSI: R4575/32
Product Line: FORCE X
Gross weight – grams: 19.9

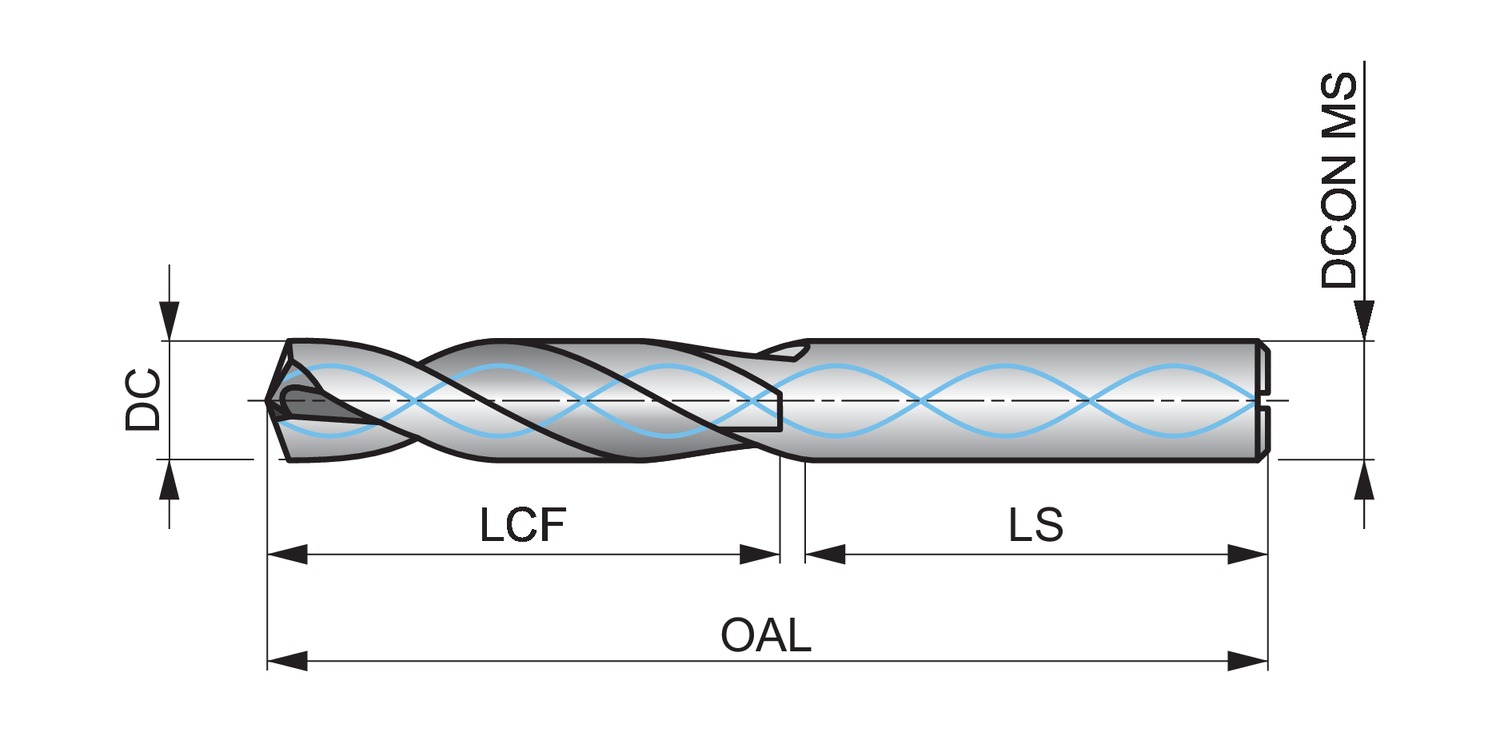

Cutting diameter – fractional inch (DC): 5/32
Cutting diameter – millimeter (DC): 3.97 mm
Cutting diameter – inch (DC): 0.1563 inch
Length chip flute – millimeter (LCF): 24 mm
Overall length – millimeter (OAL): 66 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 0.9449 inch
ISO: R4575/32

Brand

DORMER
