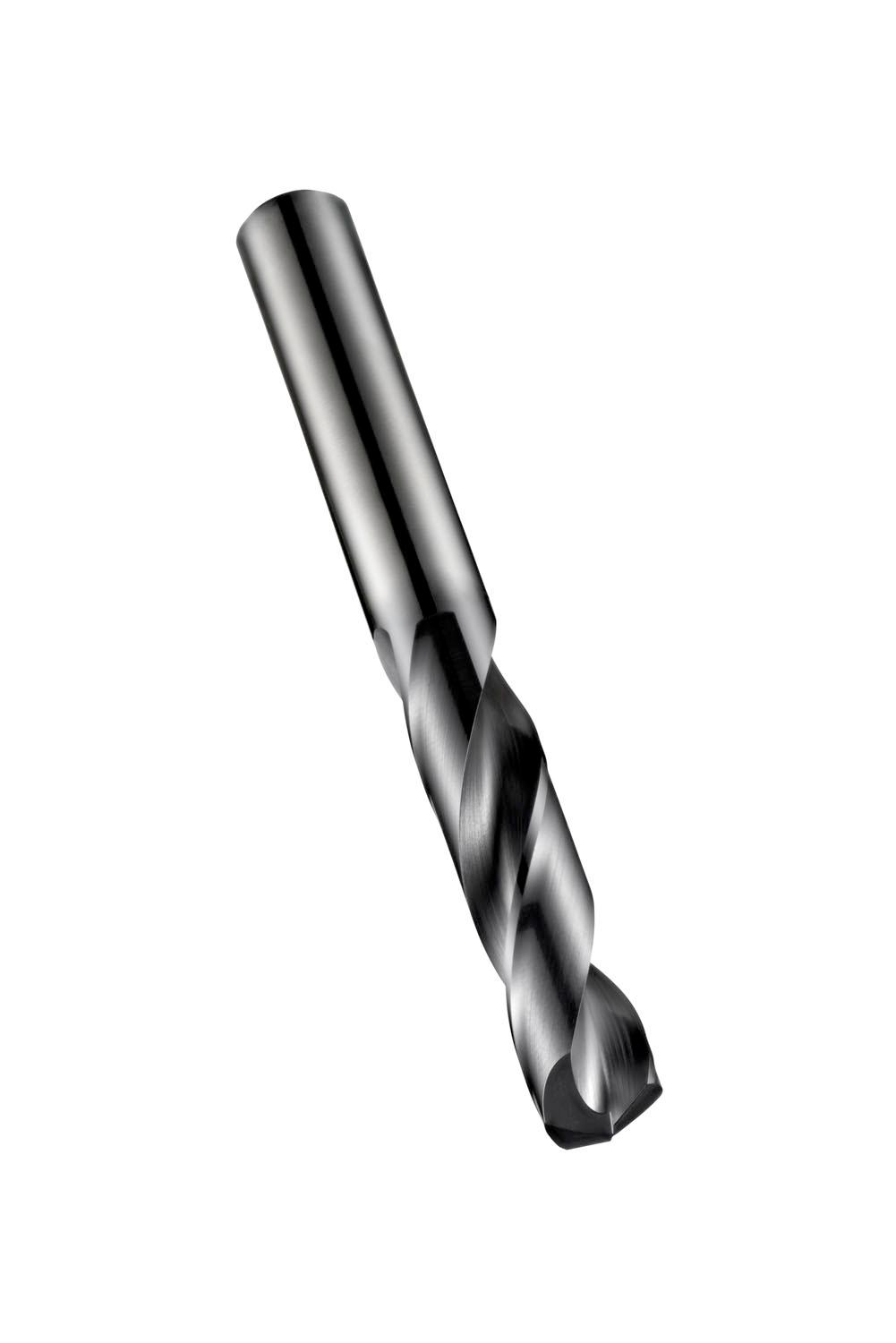

DORMER R45812.2 Carbide Drills

Product Code: R45812.2

$224.33$203.94 Ex. GST

Product Code: R45812.2 SKU R45812.2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

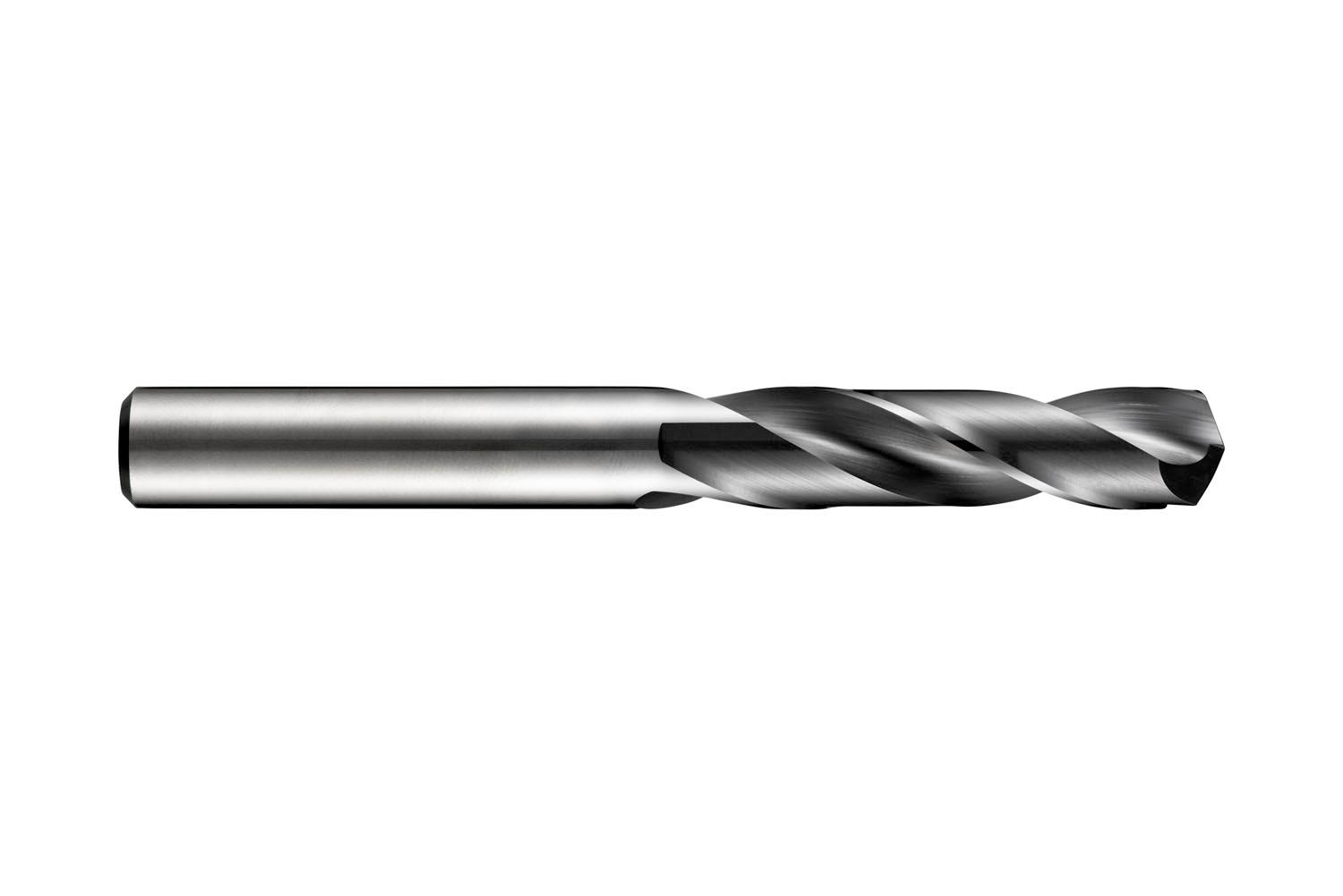

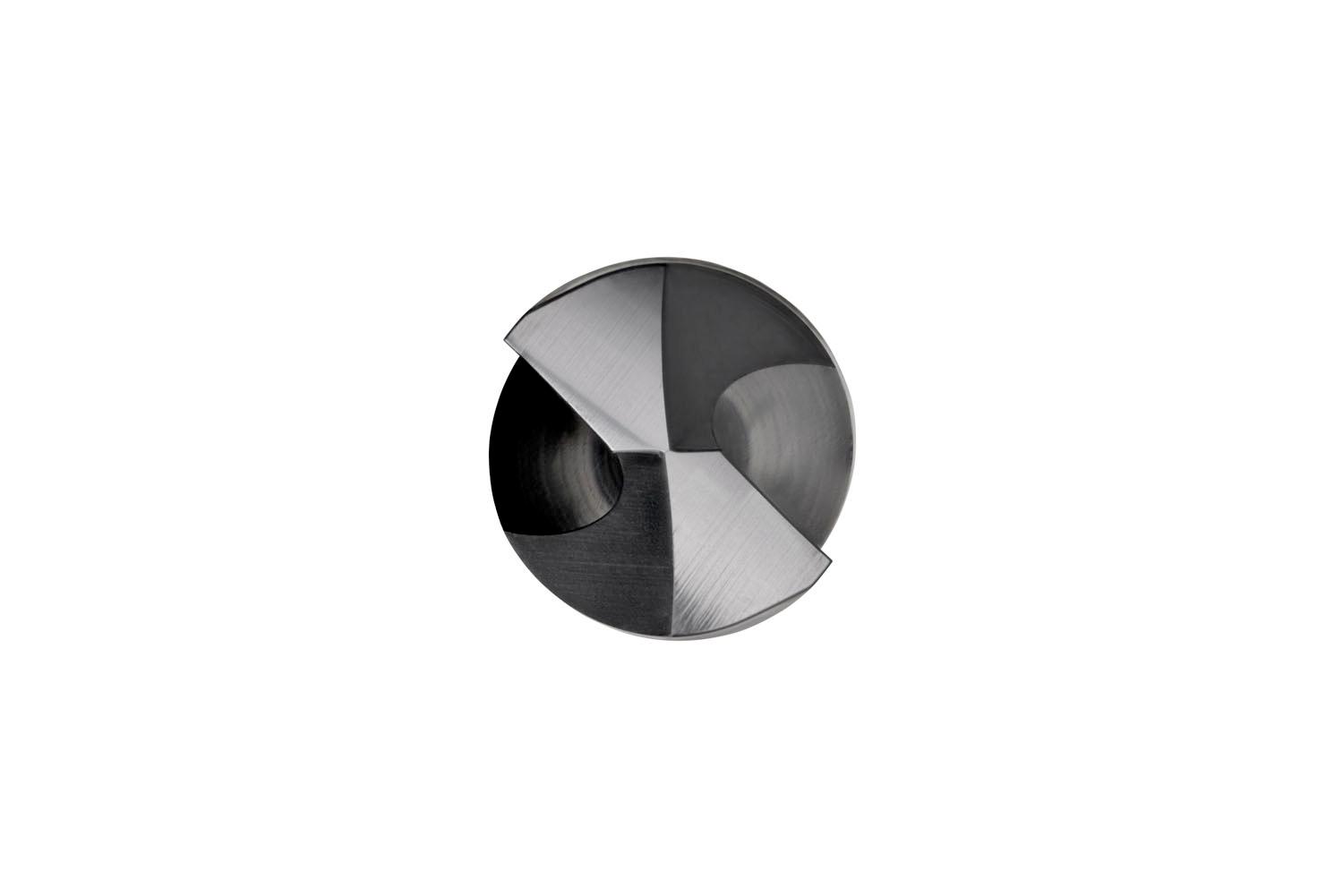

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 12.2mm with an overall length of 107mm and flute length of 60mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.2178 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760615225
Product number (SAP): 86019575
Ordering code ANSI: R45812.2
Product Line: FORCE X
Gross weight – grams: 166.7

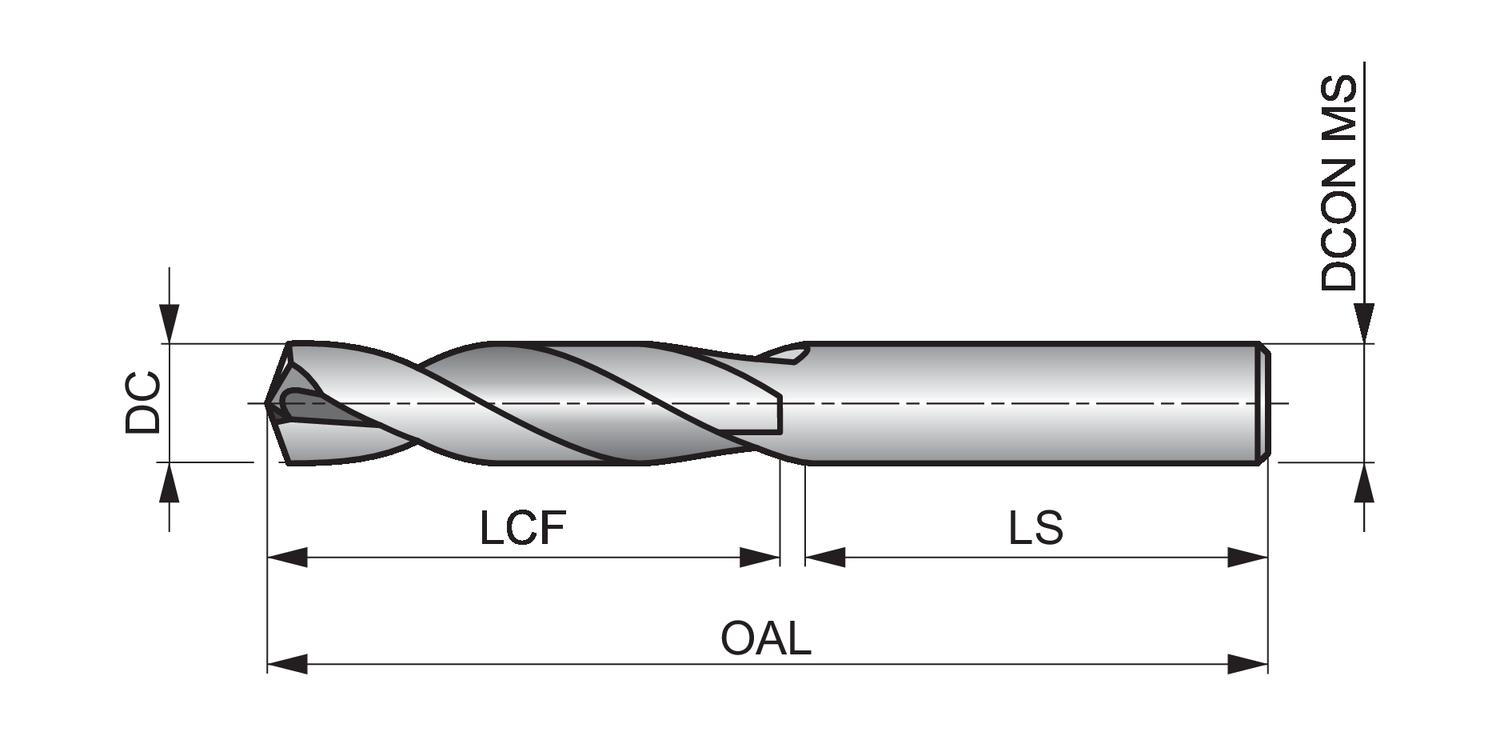

Cutting diameter – millimeter (DC): 12.2 mm
Cutting diameter – inch (DC): 0.4803 inch
Length chip flute – millimeter (LCF): 60 mm
Overall length – millimeter (OAL): 107 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 14 mm
Length chip flute – inch (LCF): 2.3622 inch
ISO: R45812.2

Brand

DORMER
