DORMER R45815.8 Carbide Drills

Product Code: R45815.8

$288.92$262.65 Ex. GST

Product Code: R45815.8 SKU R45815.8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

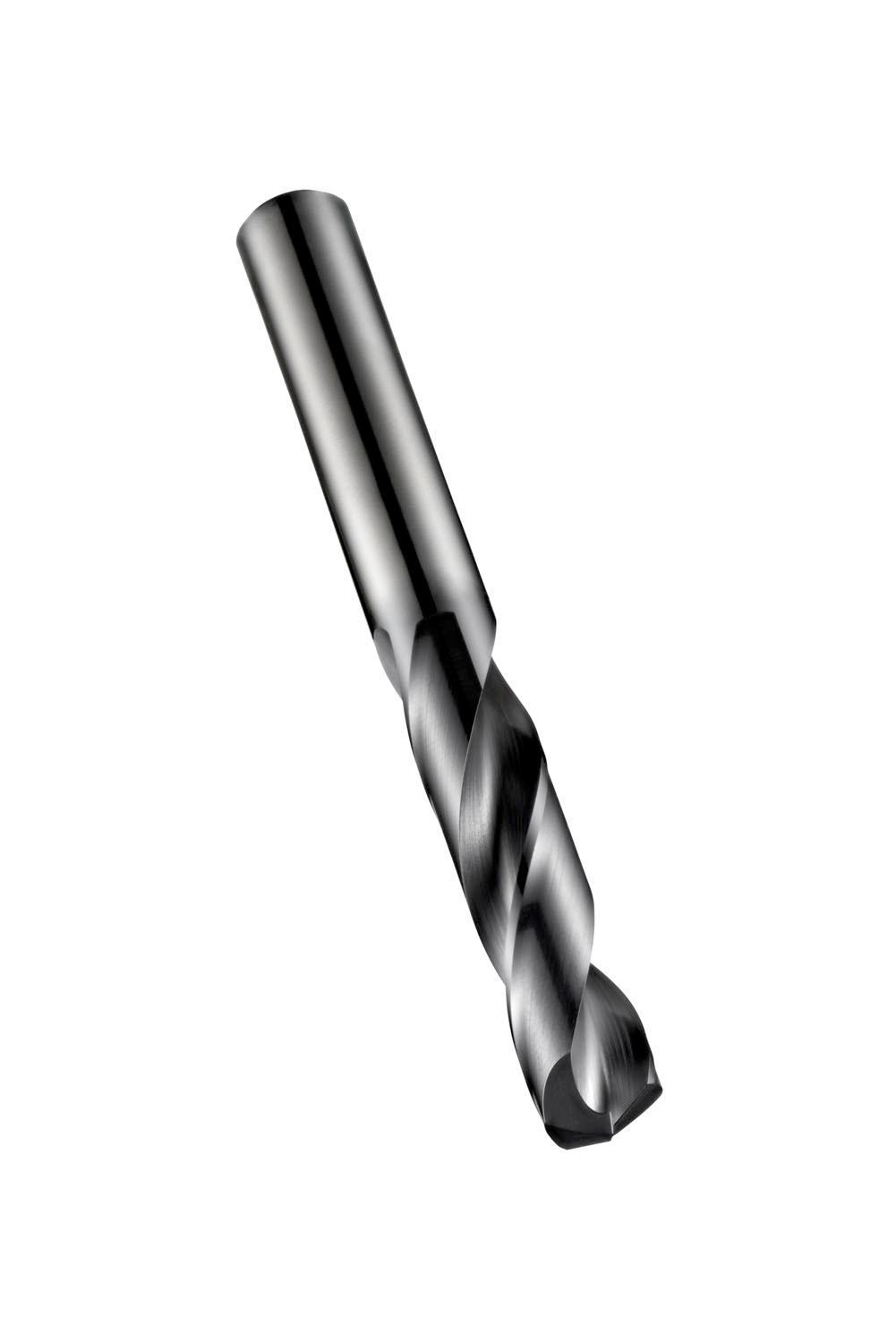

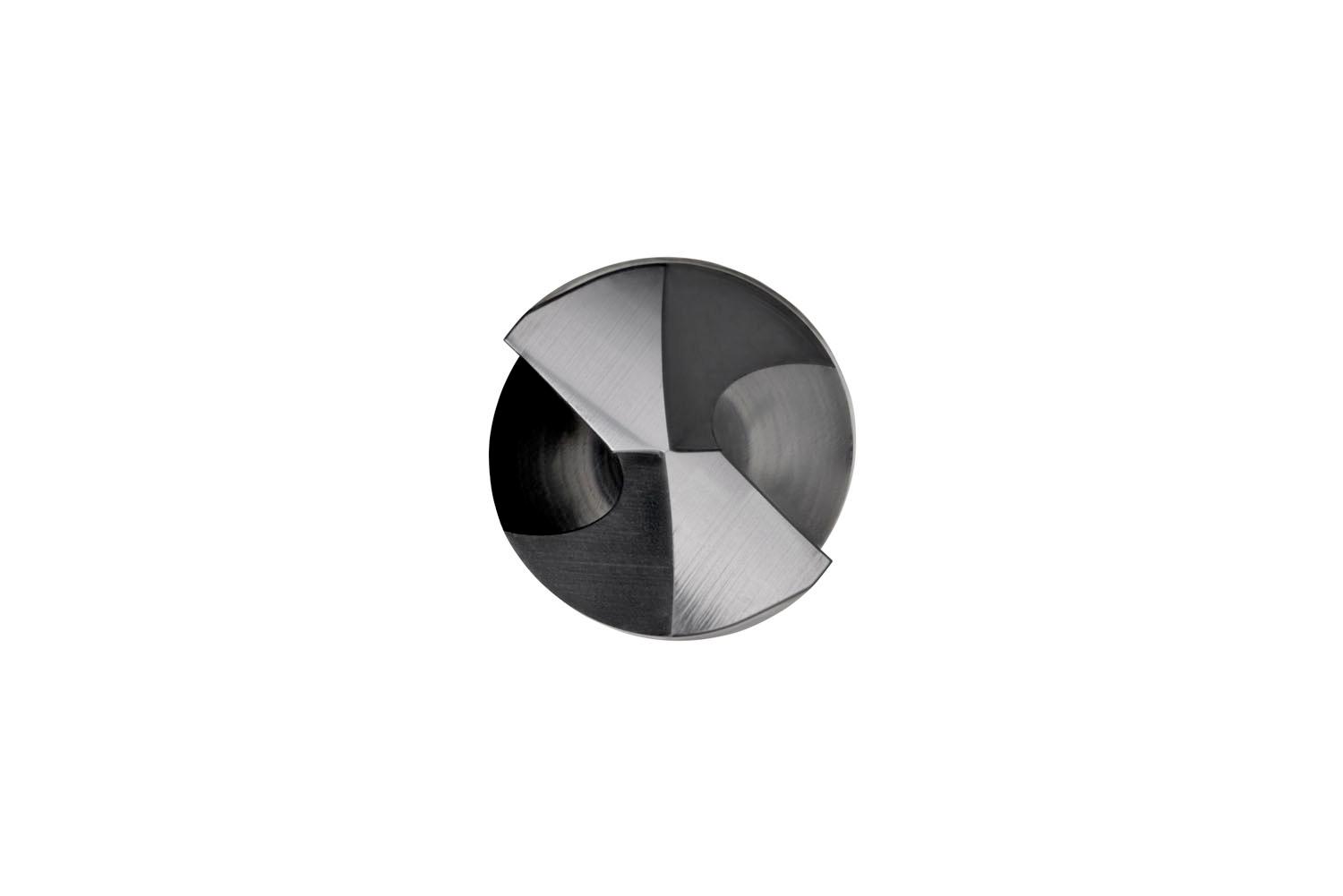

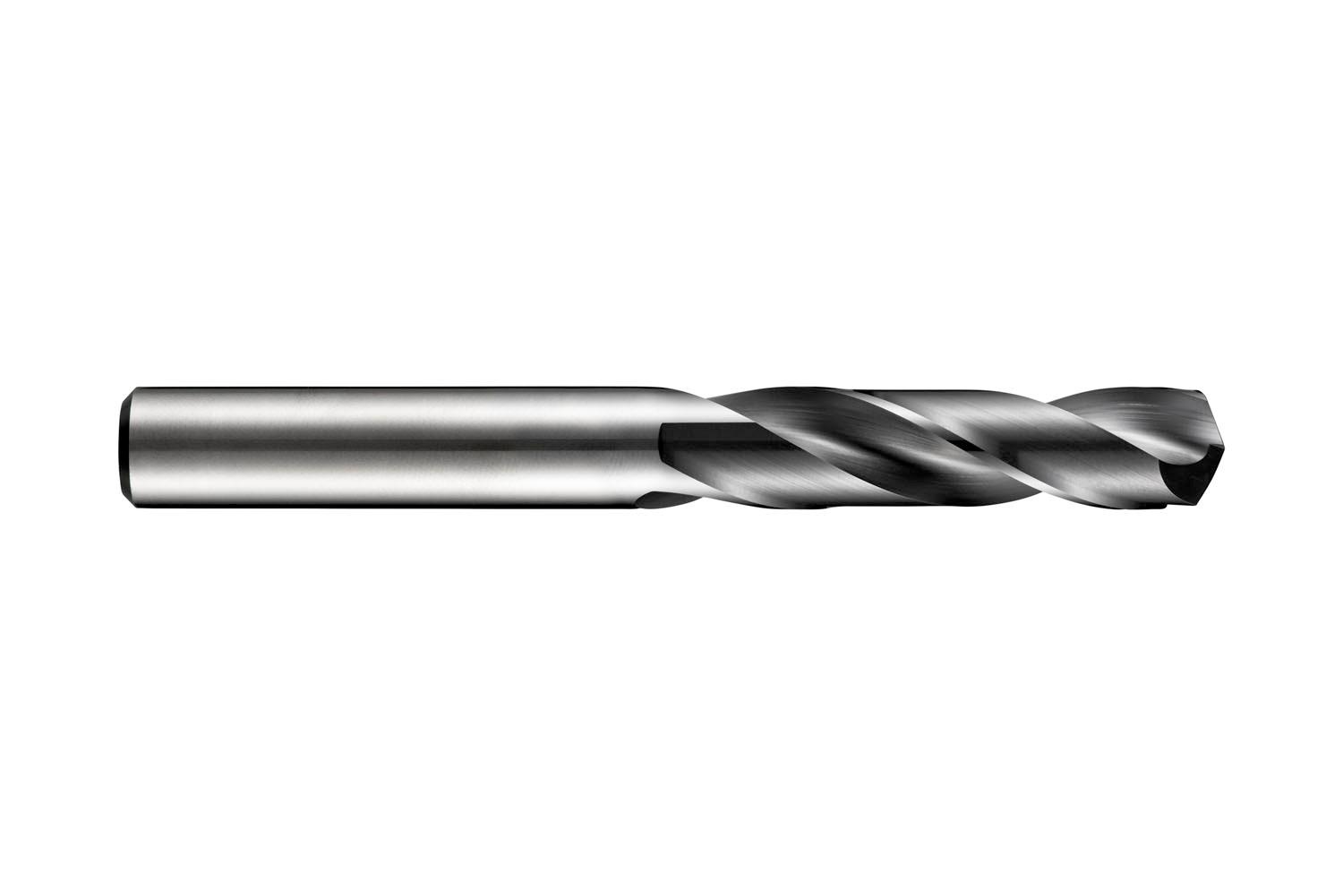

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 15.8mm with an overall length of 115mm and flute length of 65mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.2805 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760135204
Product number (SAP): 86019591
Ordering code ANSI: R45815.8
Product Line: FORCE X
Gross weight – grams: 257

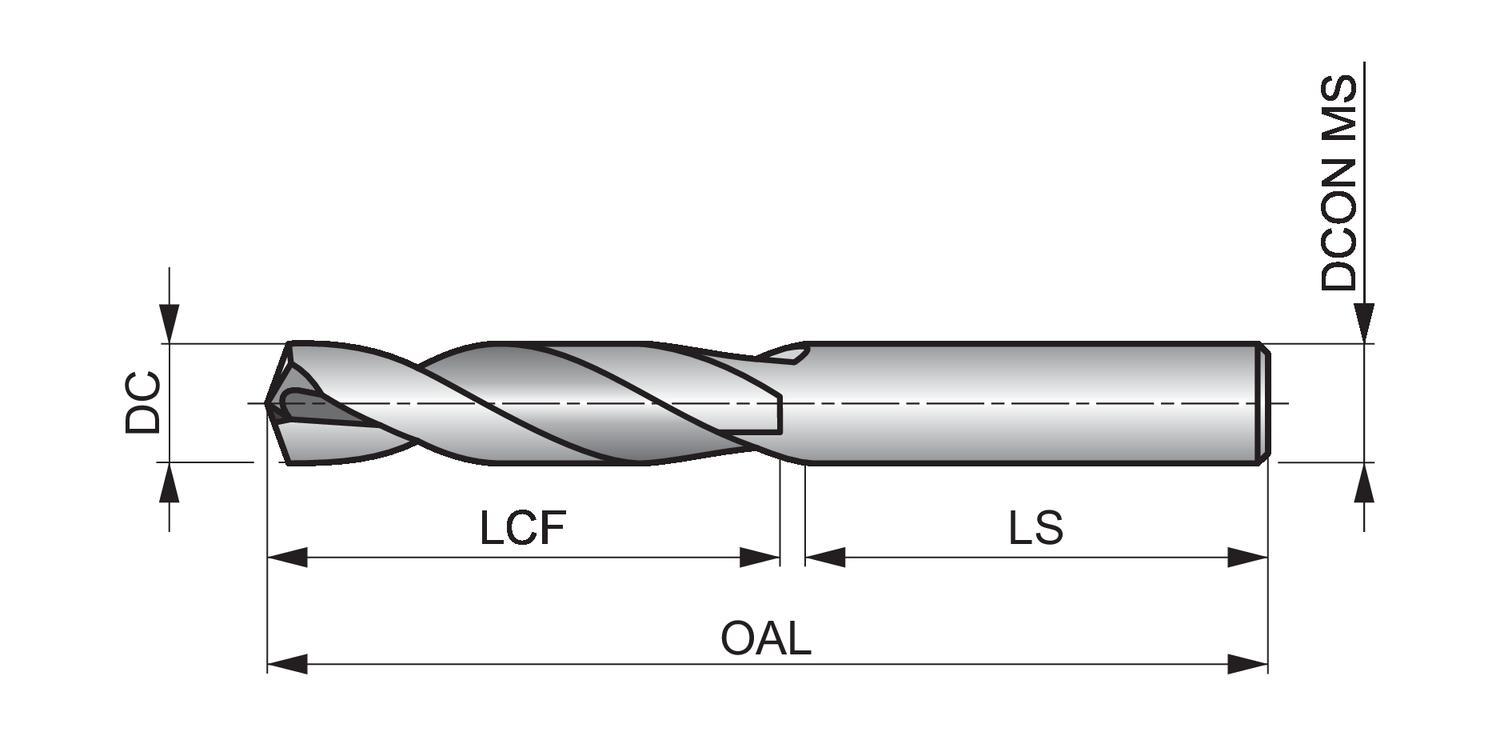

Cutting diameter – millimeter (DC): 15.8 mm
Cutting diameter – inch (DC): 0.622 inch
Length chip flute – millimeter (LCF): 65 mm
Overall length – millimeter (OAL): 115 mm
Shank length – millimeter (LS): 48 mm
Connection diameter – millimeter (DCON MS): 16 mm
Length chip flute – inch (LCF): 2.5591 inch
ISO: R45815.8
