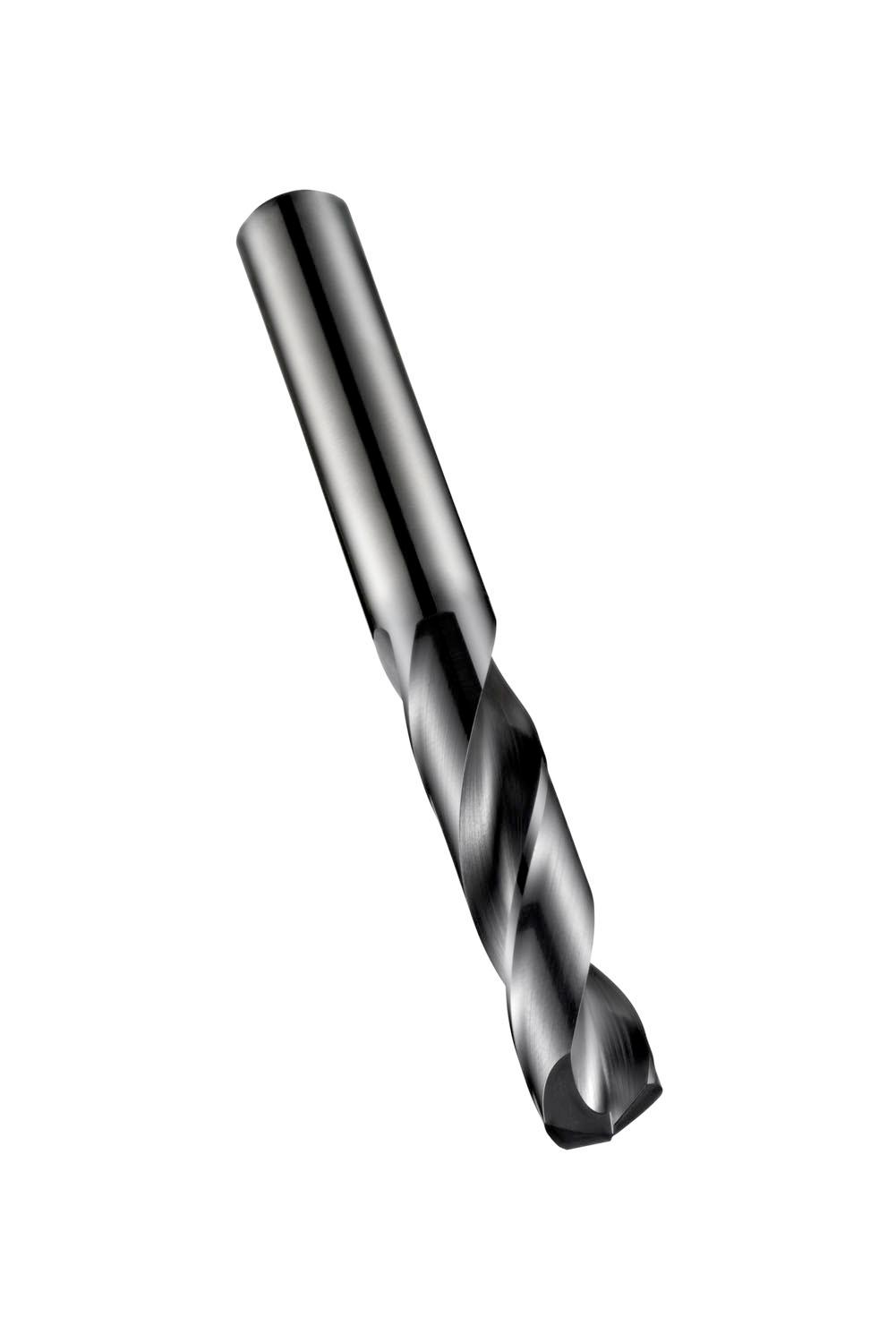

DORMER R45819.8 Carbide Drills

Product Code: R45819.8

$506.45$460.41 Ex. GST

Product Code: R45819.8 SKU R45819.8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

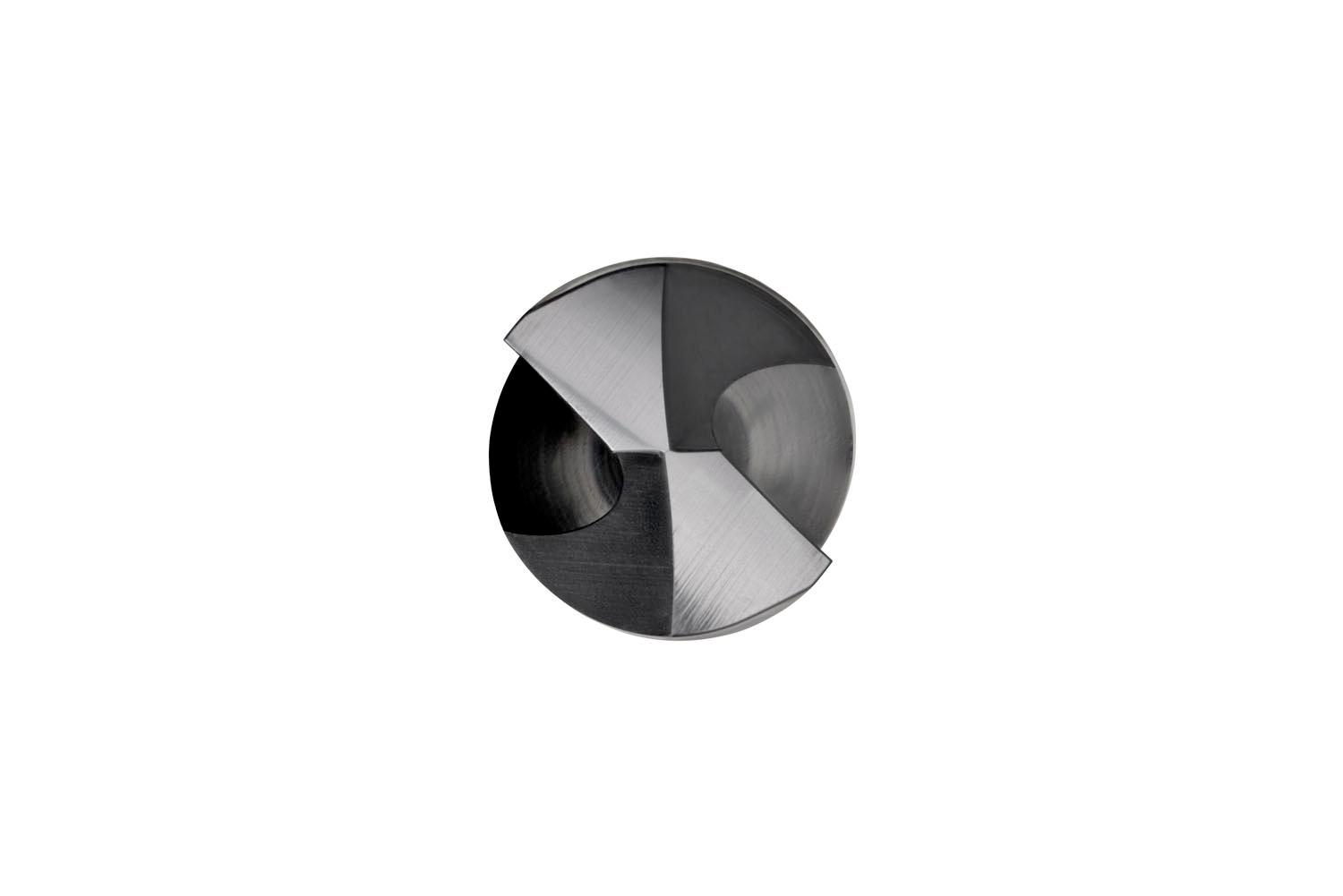

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 19.8mm with an overall length of 131mm and flute length of 79mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.4917 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760135341
Product number (SAP): 86019605
Ordering code ANSI: R45819.8
Product Line: FORCE X
Gross weight – grams: 441.8

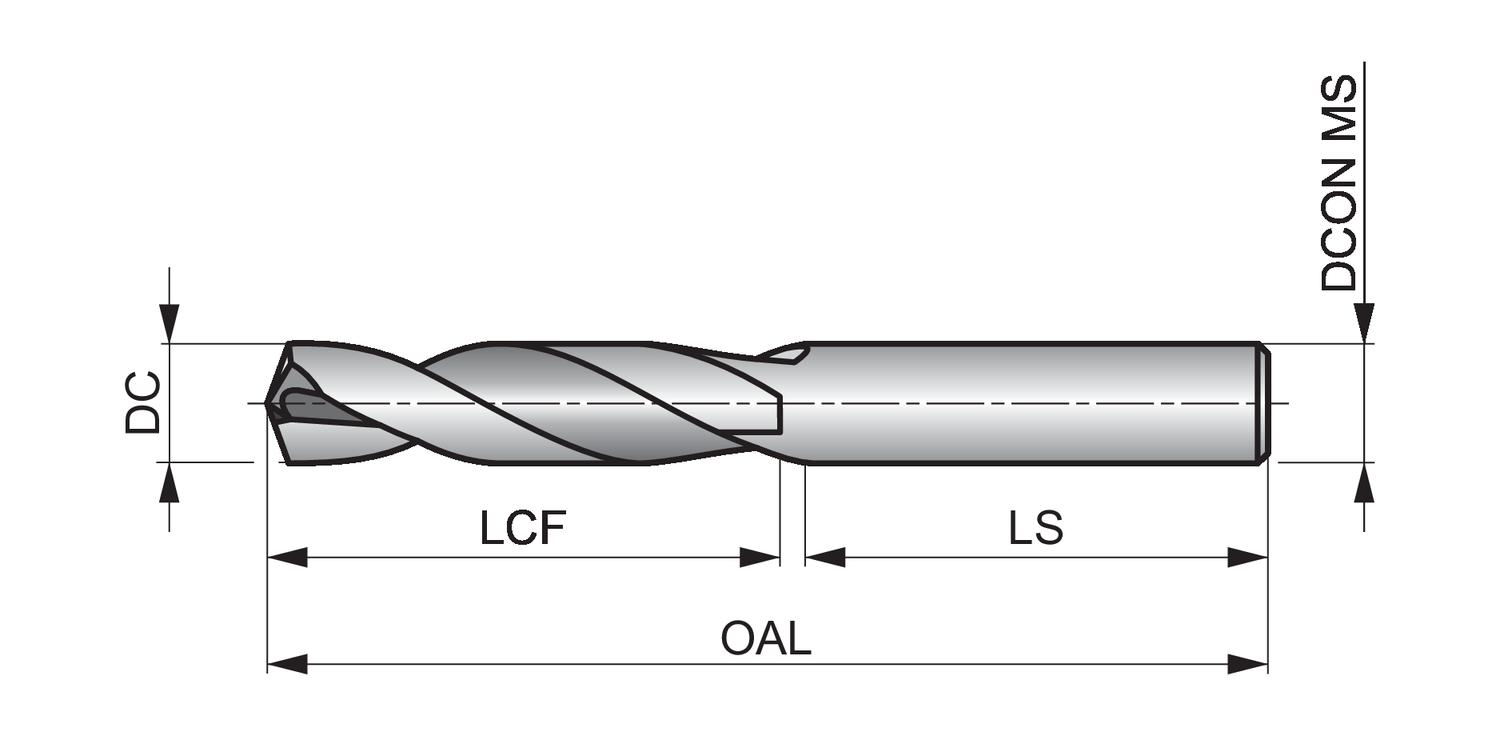

Cutting diameter – millimeter (DC): 19.8 mm
Cutting diameter – inch (DC): 0.7795 inch
Length chip flute – millimeter (LCF): 79 mm
Overall length – millimeter (OAL): 131 mm
Shank length – millimeter (LS): 50 mm
Connection diameter – millimeter (DCON MS): 20 mm
Length chip flute – inch (LCF): 3.1102 inch
ISO: R45819.8

Brand

DORMER
