DORMER R45827/64 Carbide Drills

Product Code: R45827/64

$173.35$157.59 Ex. GST

Product Code: R45827/64 SKU R45827/64 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

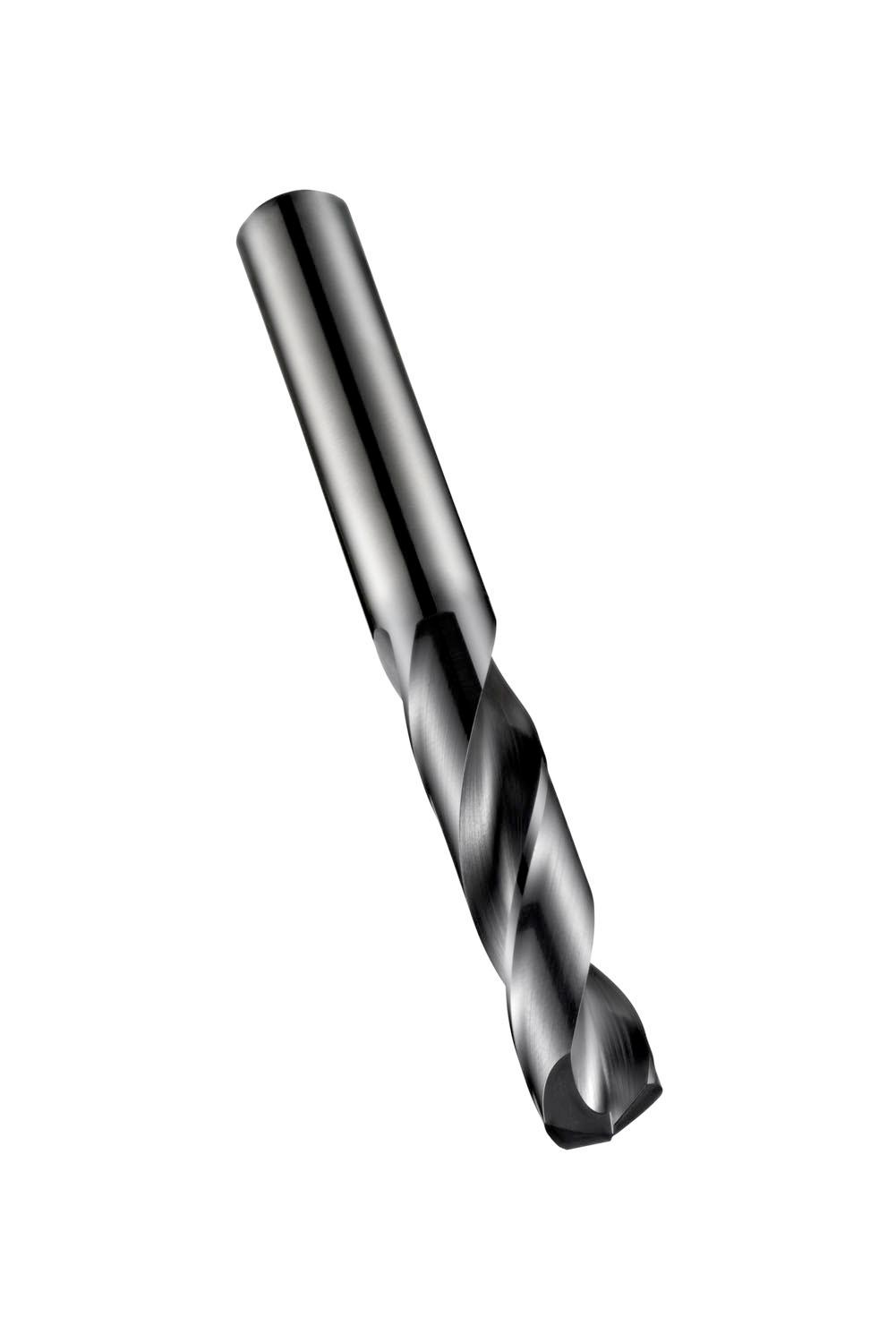

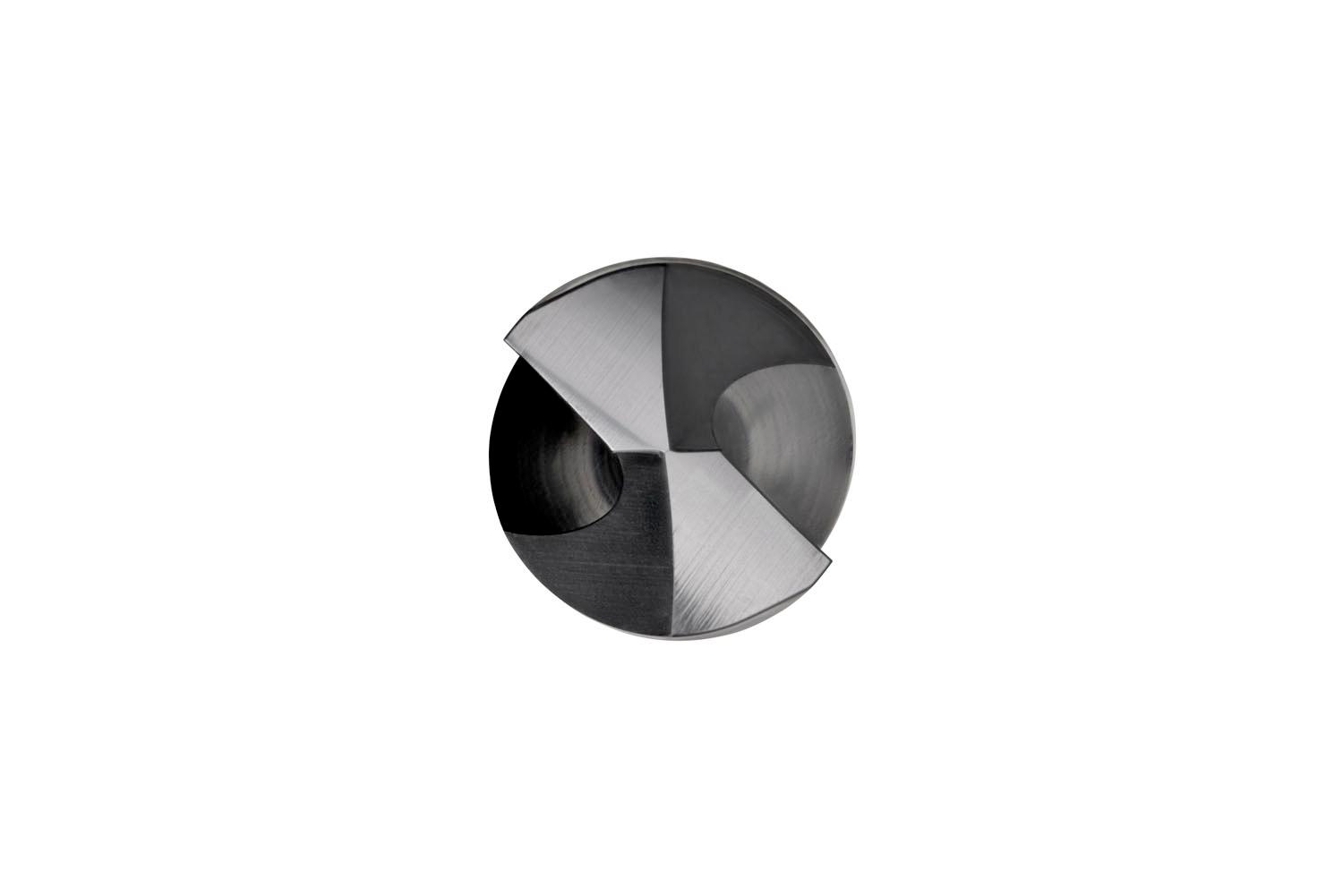

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.4219″ (27/64) with an overall length of 102mm and flute length of 55mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.1683 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760625019
Product number (SAP): 86019614
Ordering code ANSI: R45827/64
Product Line: FORCE X
Gross weight – grams: 120

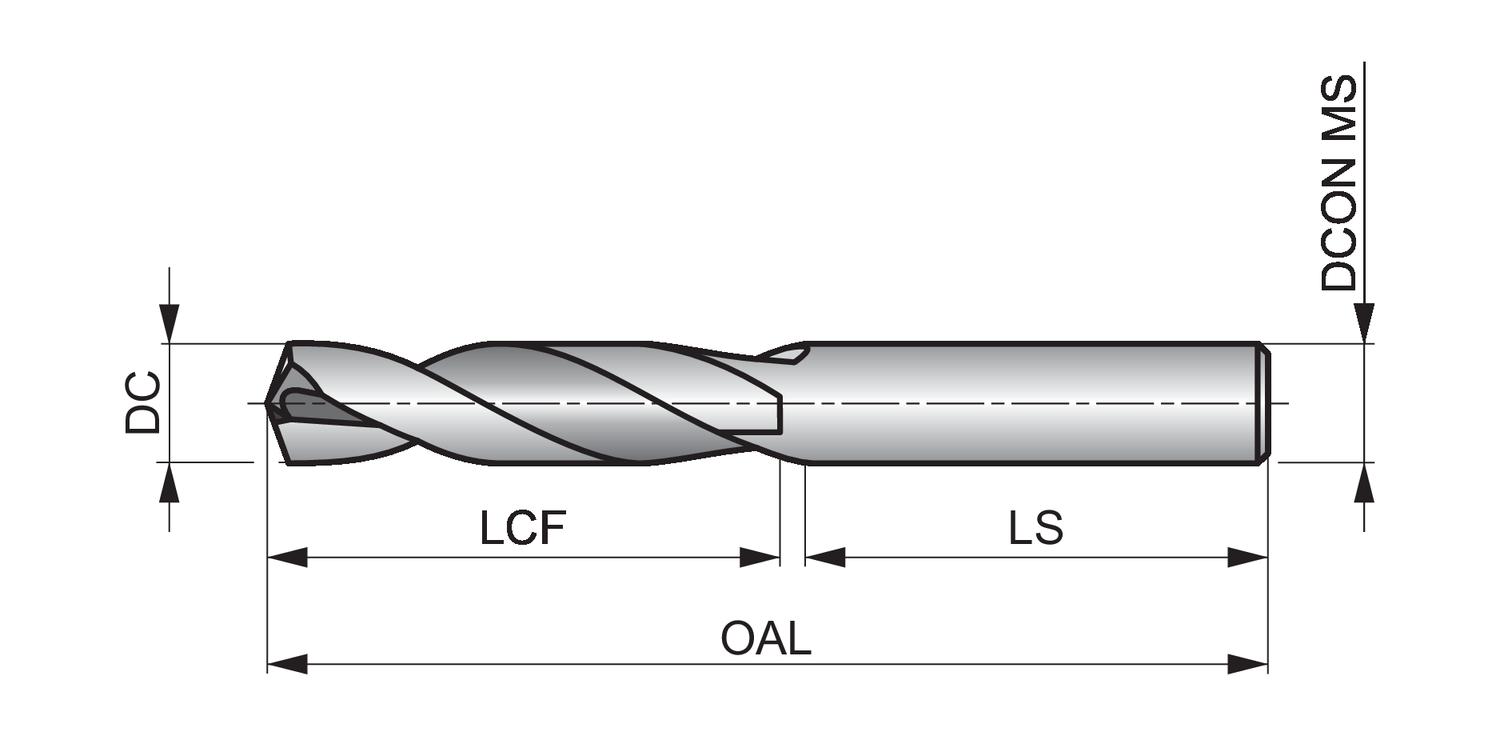

Cutting diameter – fractional inch (DC): 27/64
Cutting diameter – millimeter (DC): 10.72 mm
Cutting diameter – inch (DC): 0.4219 inch
Length chip flute – millimeter (LCF): 55 mm
Overall length – millimeter (OAL): 102 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 2.1654 inch
ISO: R45827/64

Brand

DORMER
