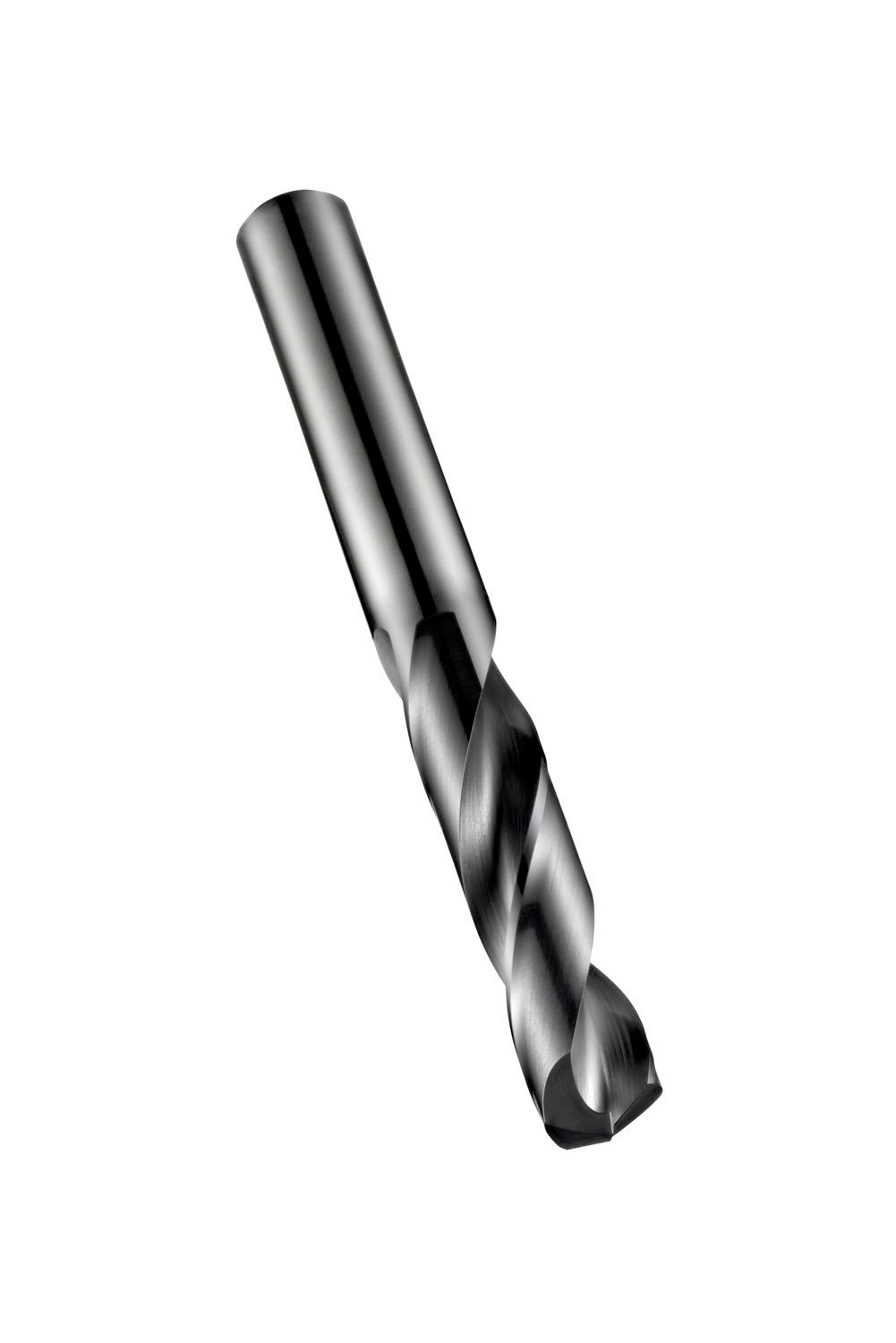

DORMER R4584.1 Carbide Drills

Product Code: R4584.1

$91.77$83.43 Ex. GST

Product Code: R4584.1 SKU R4584.1 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

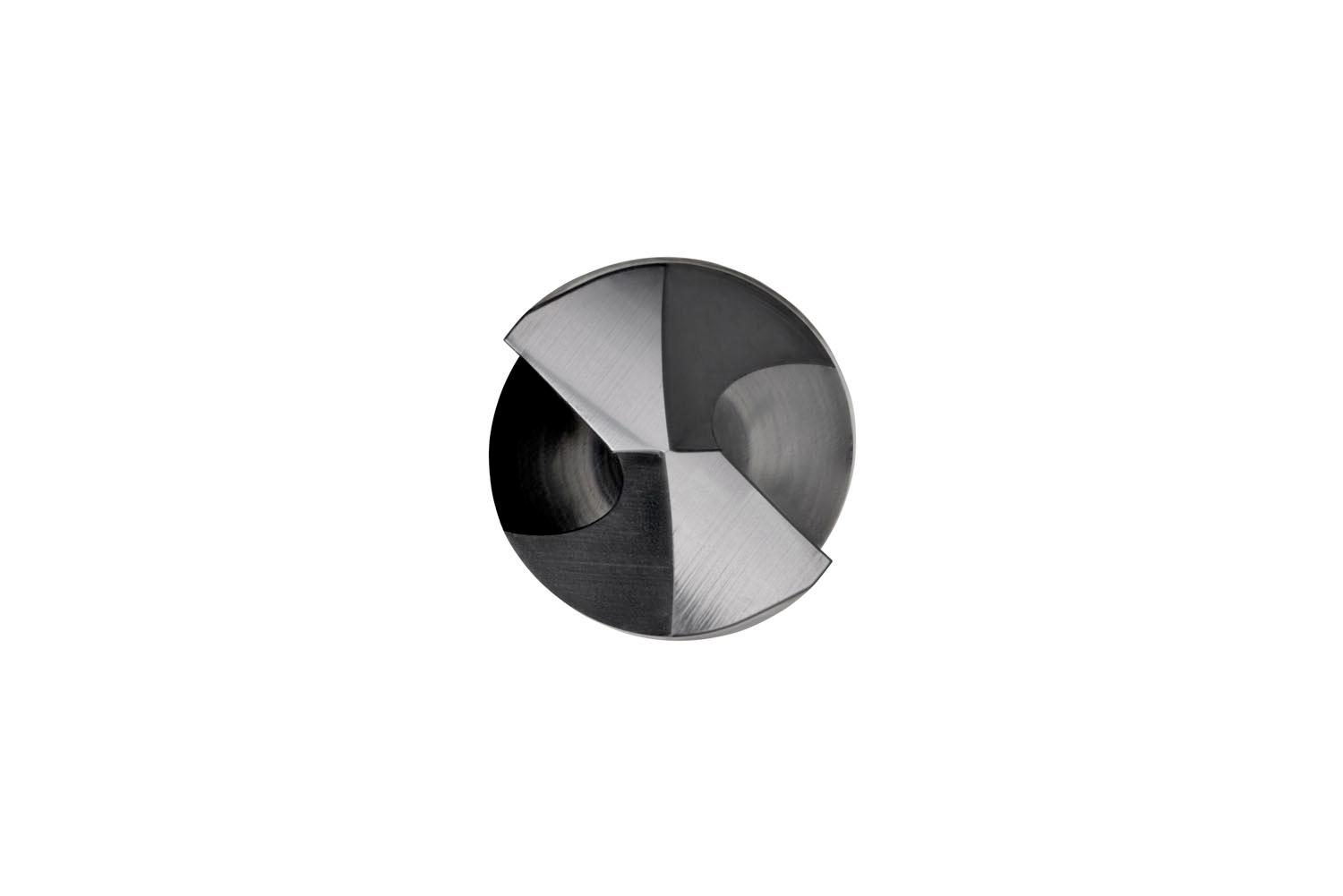

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 4.1mm with an overall length of 66mm and flute length of 24mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.0891 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760626511
Product number (SAP): 86019636
Ordering code ANSI: R4584.1
Product Line: FORCE X
Gross weight – grams: 21

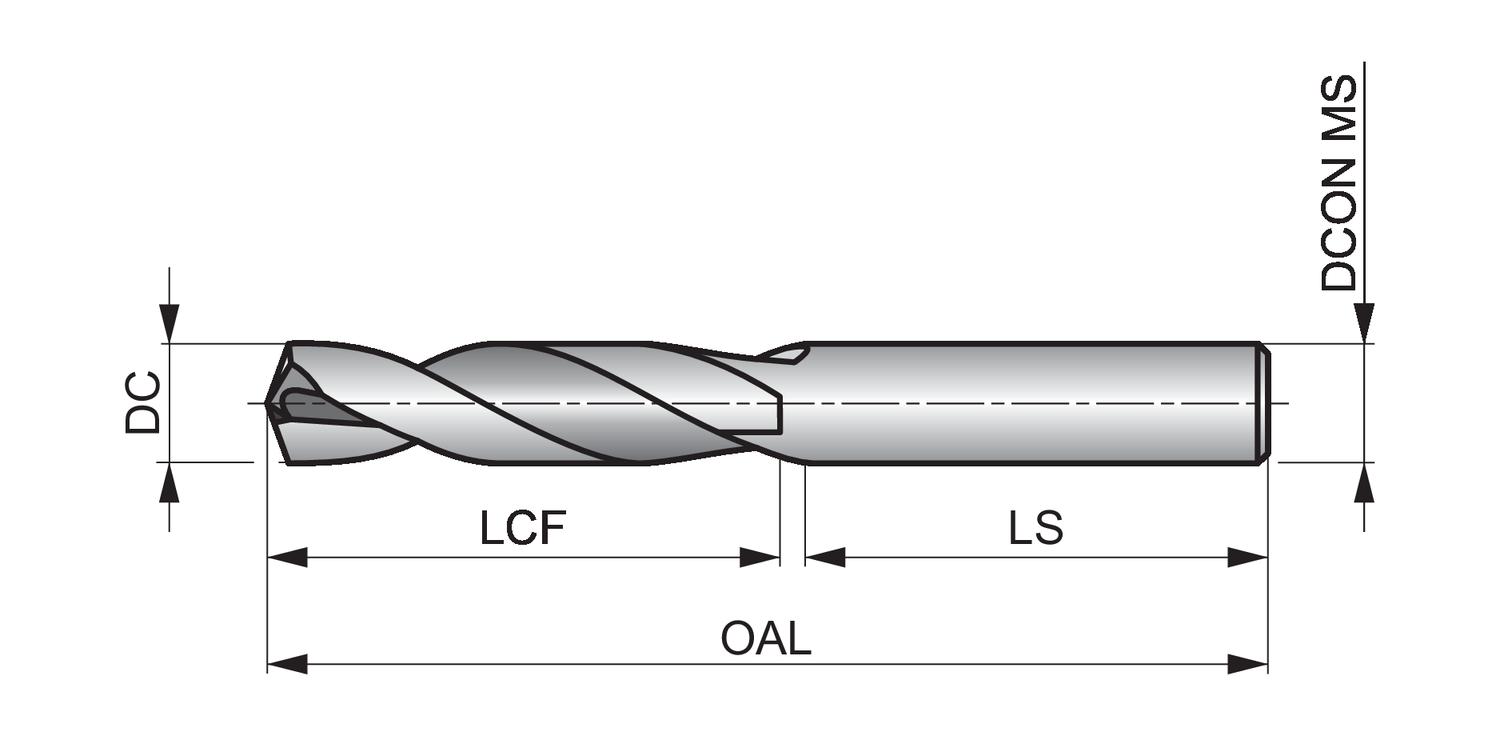

Cutting diameter – millimeter (DC): 4.1 mm
Cutting diameter – inch (DC): 0.1614 inch
Length chip flute – millimeter (LCF): 24 mm
Overall length – millimeter (OAL): 66 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 0.9449 inch
ISO: R4584.1
