DORMER R458B Carbide Drills

Product Code: R458B

$105.37$95.79 Ex. GST

Product Code: R458B SKU R458B Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

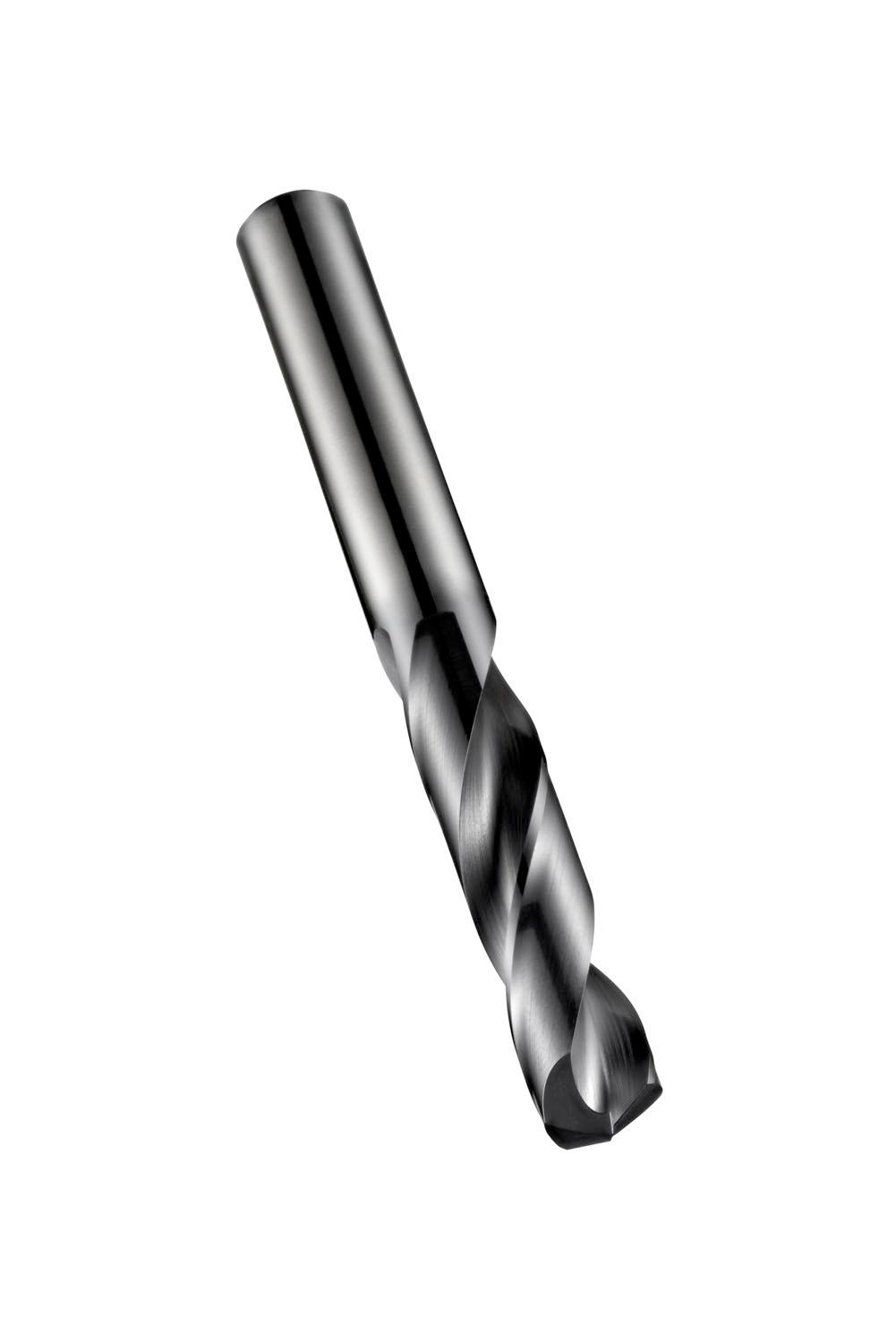

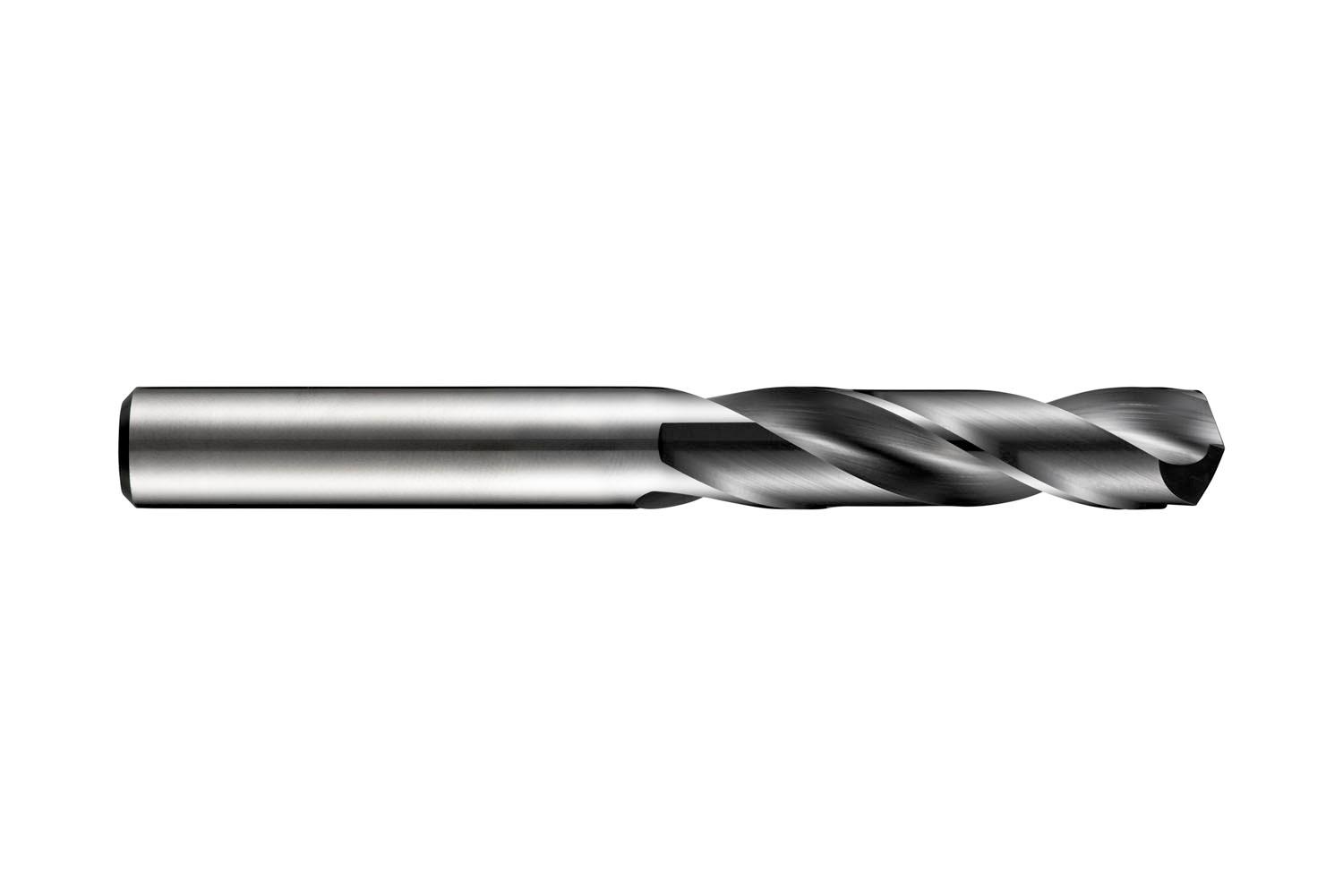

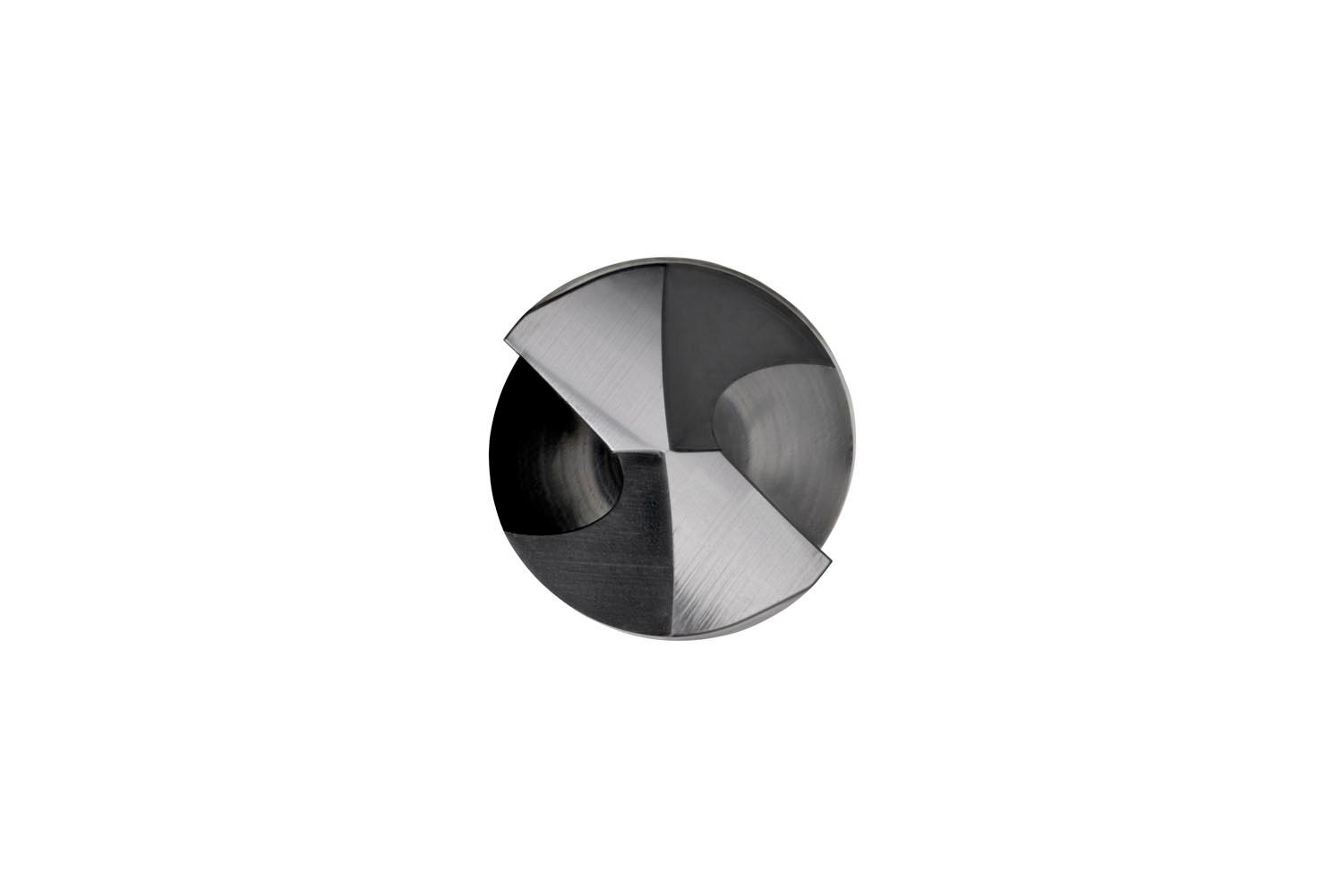

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.2380″ (B) with an overall length of 79mm and flute length of 34mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.1023 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760757093
Product number (SAP): 86032986
Ordering code ANSI: R458B
Product Line: FORCE X
Gross weight – grams: 40.4

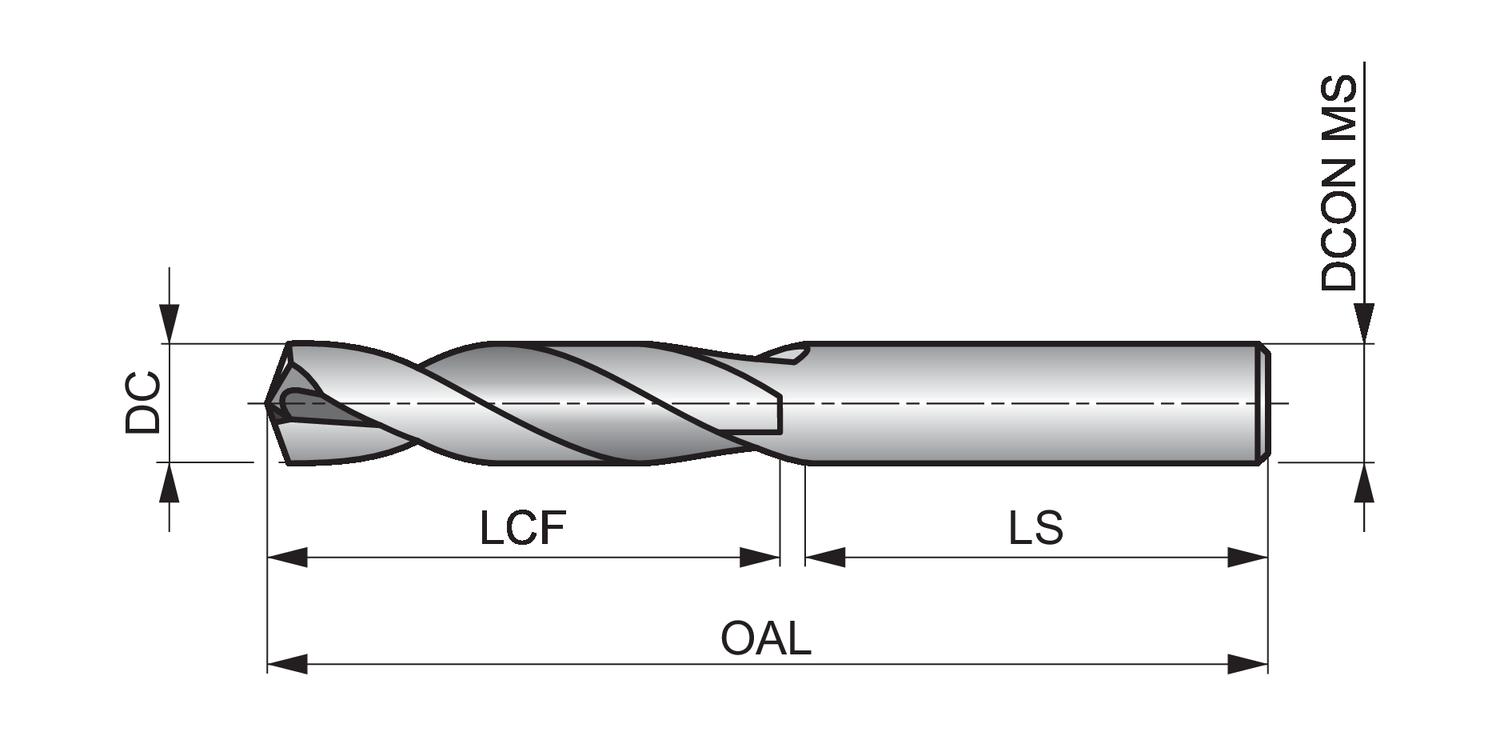

Cutting diameter – imperial letter (DC): B
Cutting diameter – millimeter (DC): 6.05 mm
Cutting diameter – inch (DC): 0.238 inch
Length chip flute – millimeter (LCF): 34 mm
Overall length – millimeter (OAL): 79 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 1.3386 inch
ISO: R458B

Brand

DORMER
