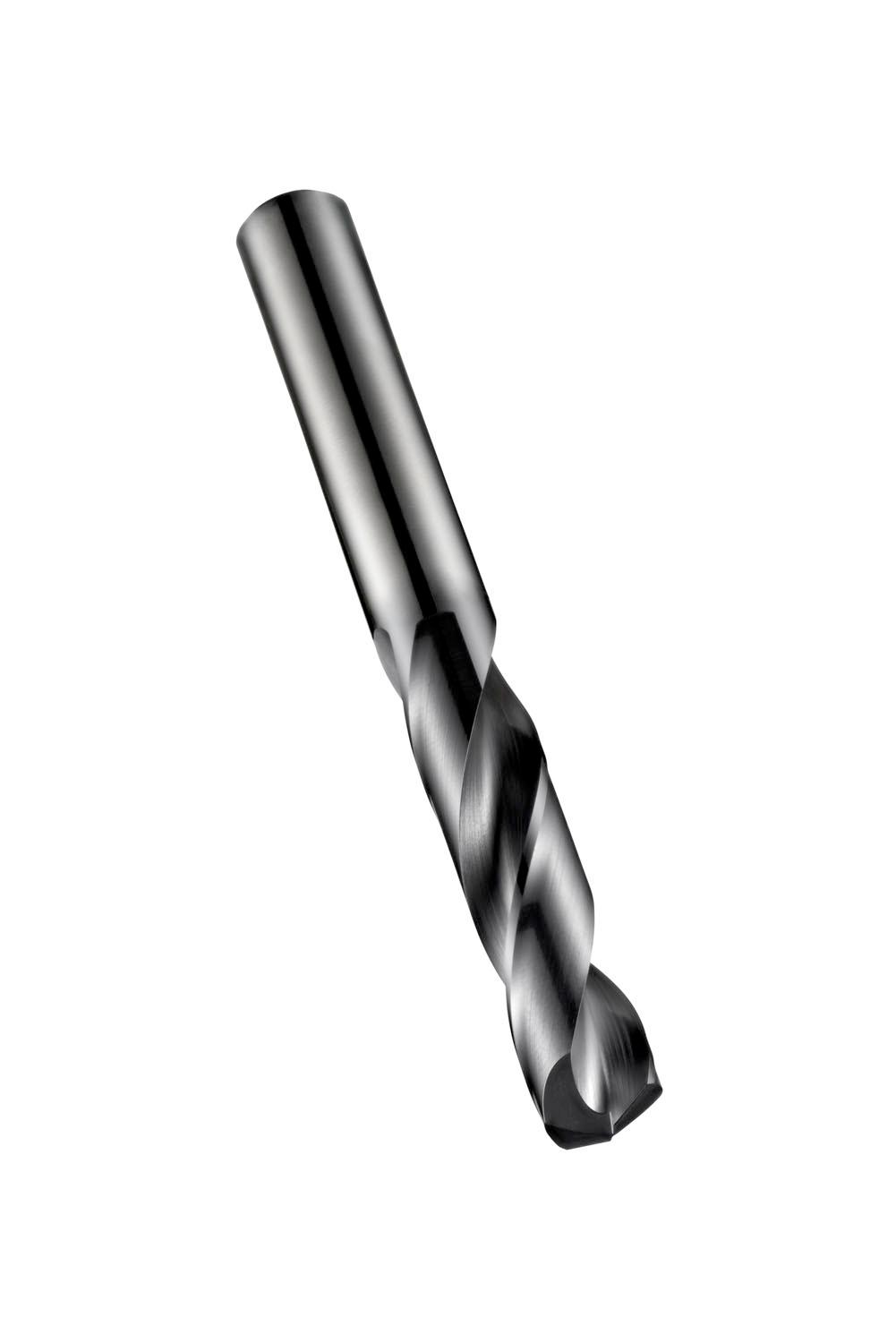

DORMER R458U Carbide Drills

Product Code: R458U

$118.97$108.15 Ex. GST

Product Code: R458U SKU R458U Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

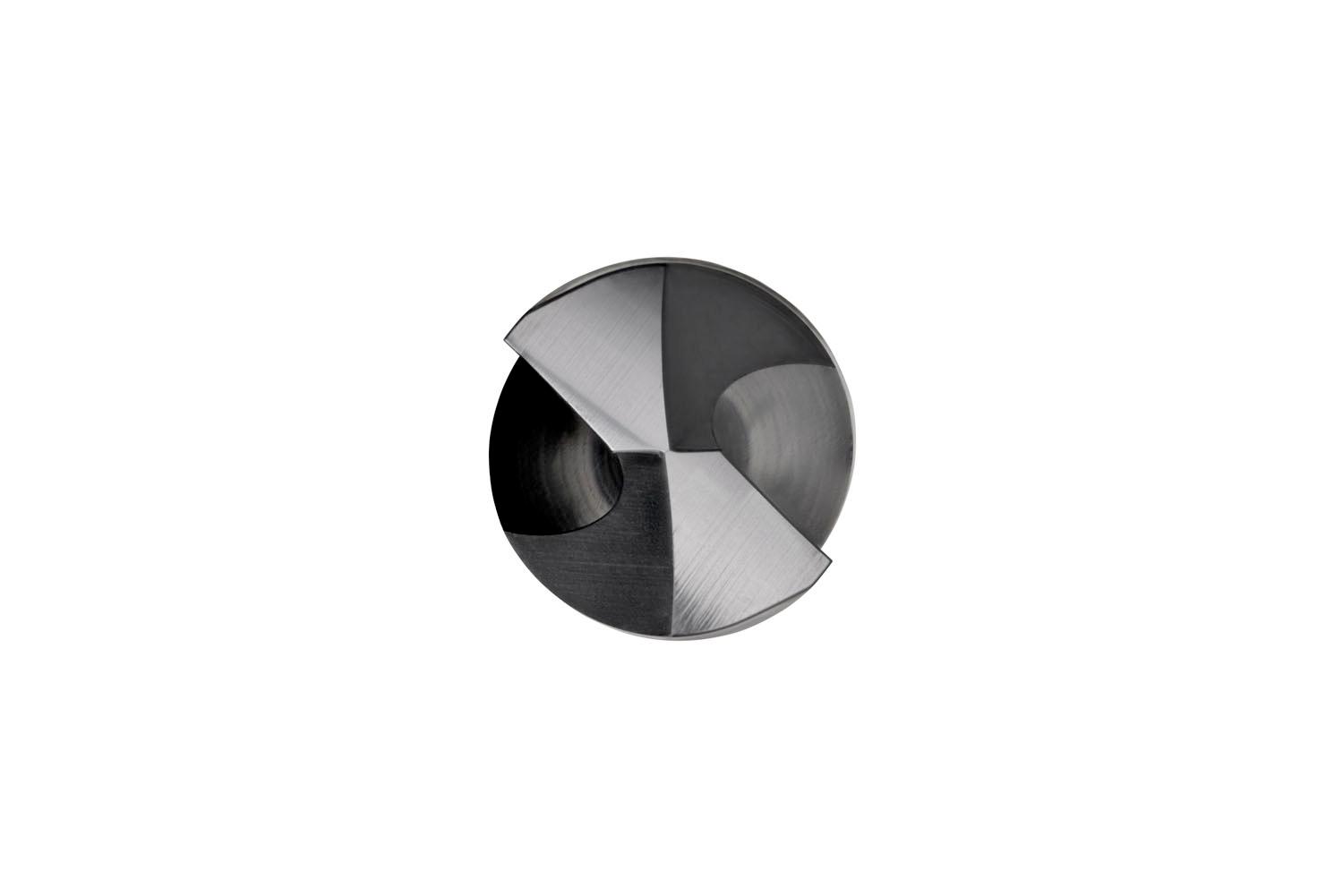

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.3681″ (U) with an overall length of 89mm and flute length of 47mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.1155 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760042656
Product number (SAP): 86019739
Ordering code ANSI: R458U
Product Line: FORCE X
Gross weight – grams: 78.5

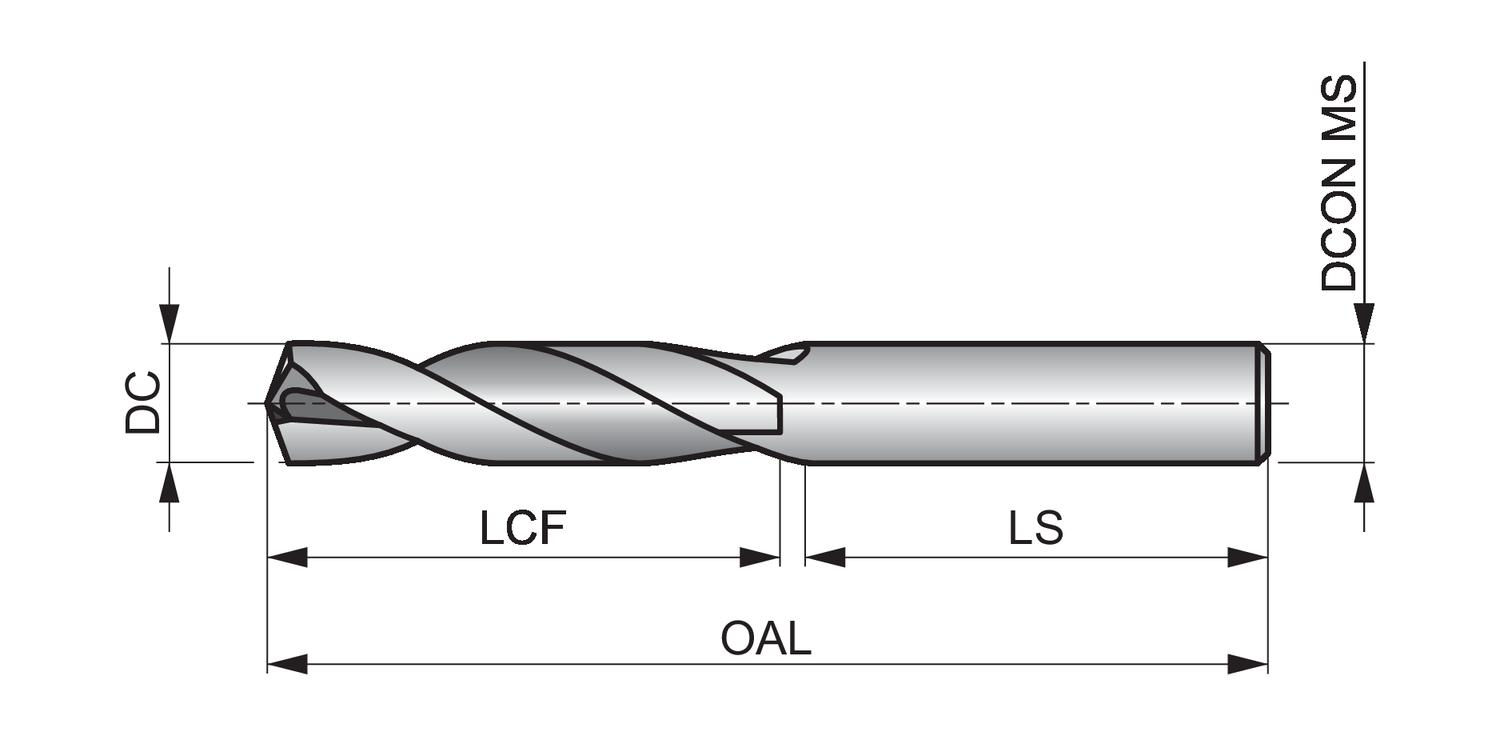

Cutting diameter – imperial letter (DC): U
Cutting diameter – millimeter (DC): 9.35 mm
Cutting diameter – inch (DC): 0.3681 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 89 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: R458U

Brand

DORMER
