DORMER R4591/4 Carbide Drills

Product Code: R4591/4

$369.36$335.78 Ex. GST

Product Code: R4591/4 SKU R4591/4 Categories , ,

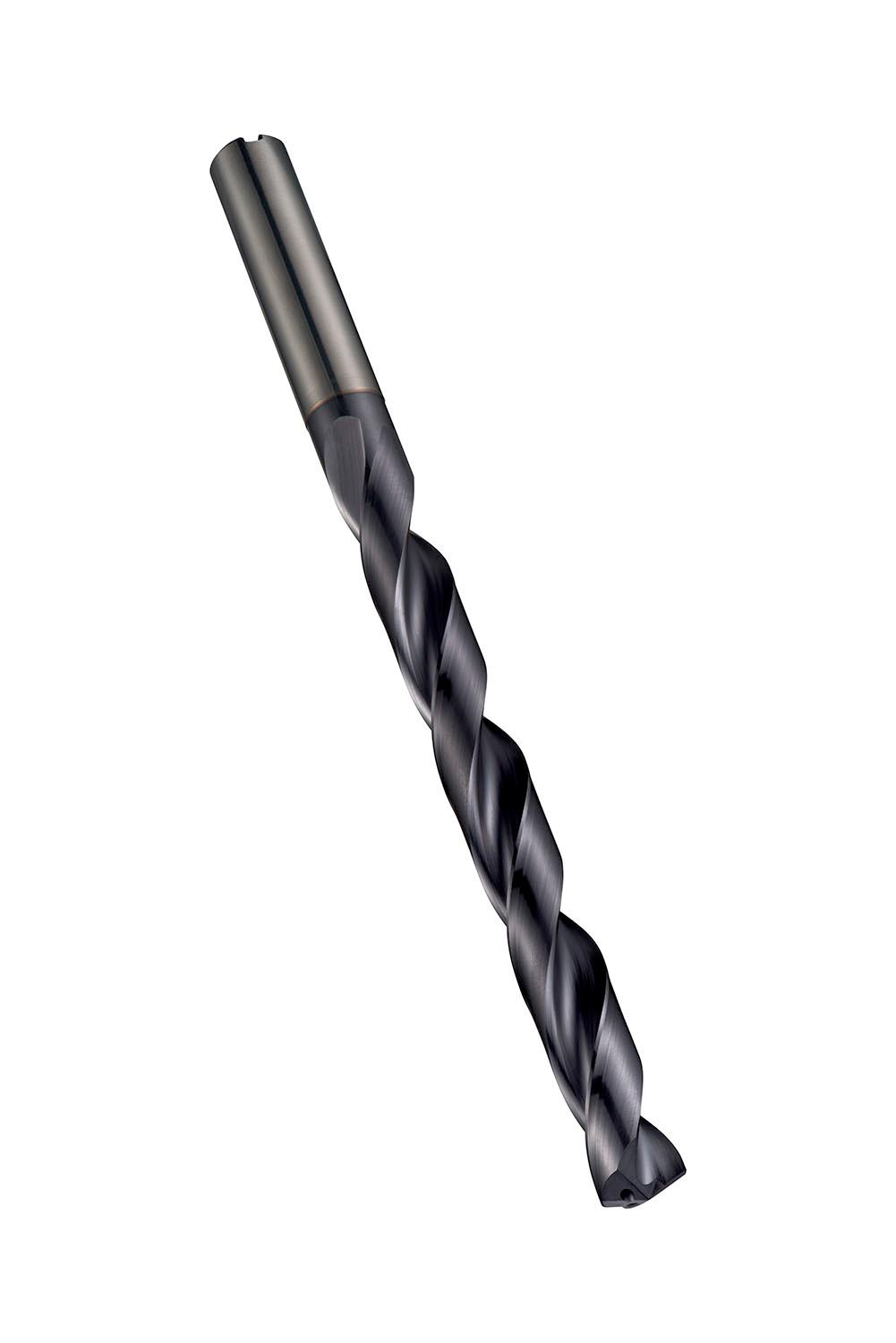

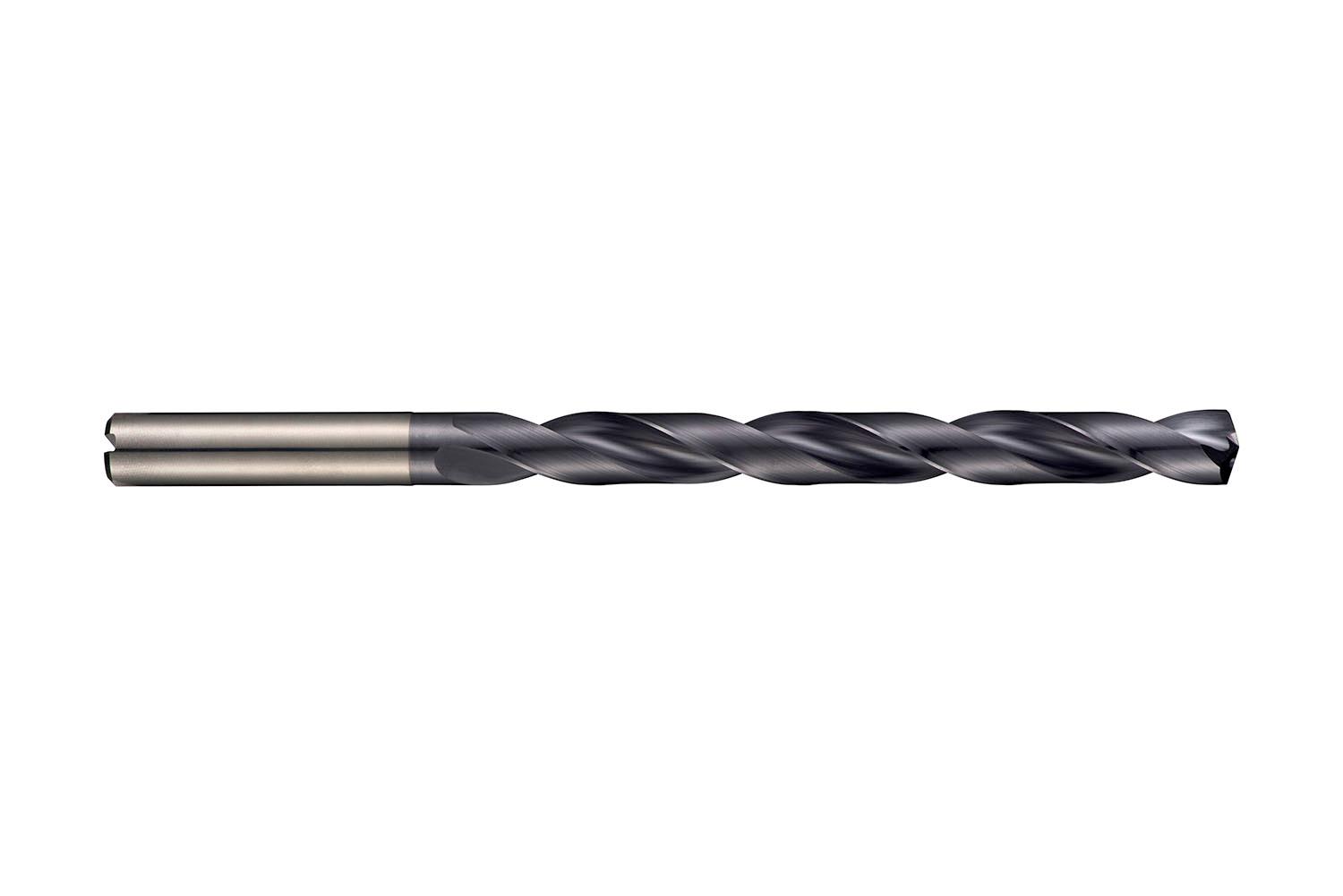

DORMER R4591/4 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

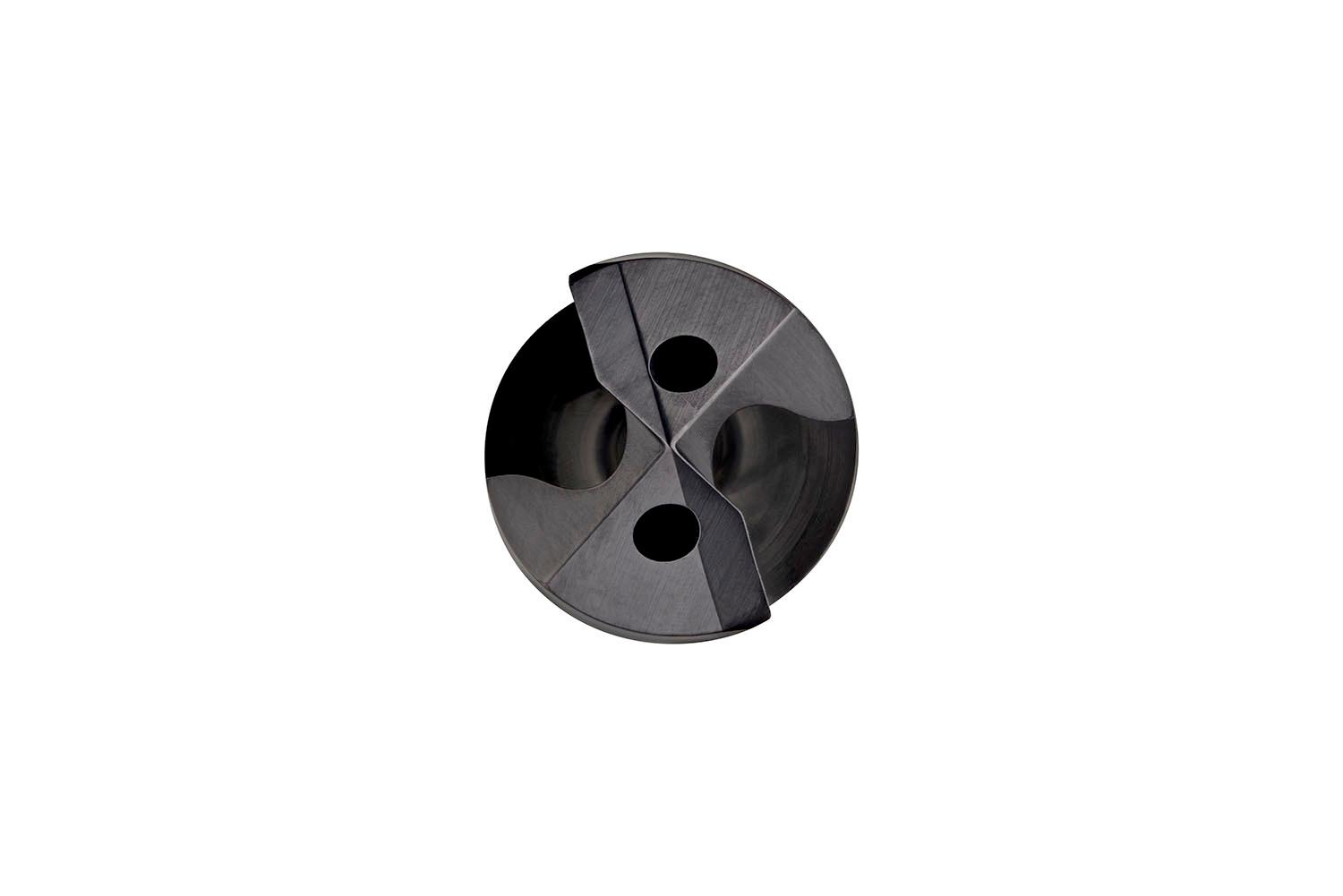

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.2500″ (1/4) with an overall length of 126mm and flute length of 84mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight 0.3586 kg
Dimensions
barcode
Additional Information

Description: Value

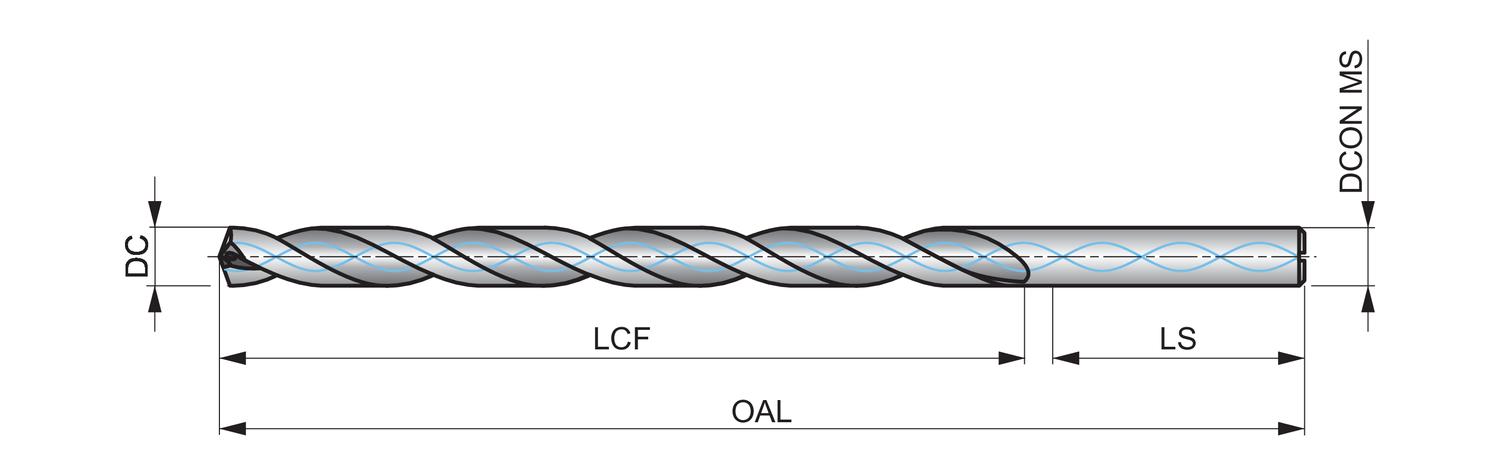

EAN number: 7320760686317 Product number (SAP): 86023504 Ordering code ANSI: R4591/4 Product Line: FORCE X Gross weight: 54.9 g Cutting diameter (DC): 6.35 mm / 1/4 / 0.25 inch Length chip flute (LCF): 84 mm / 3.3071 inch Overall length (OAL): 126 mm Shank length (LS): 36 mm Connection diameter (DCON MS): 8 mm ISO: R4591/4

Brand

DORMER
