DORMER R45913/32 Carbide Drills

Product Code: R45913/32

$606.16$551.05 Ex. GST

Product Code: R45913/32 SKU R45913/32 Categories , ,
DORMER R45913/32 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

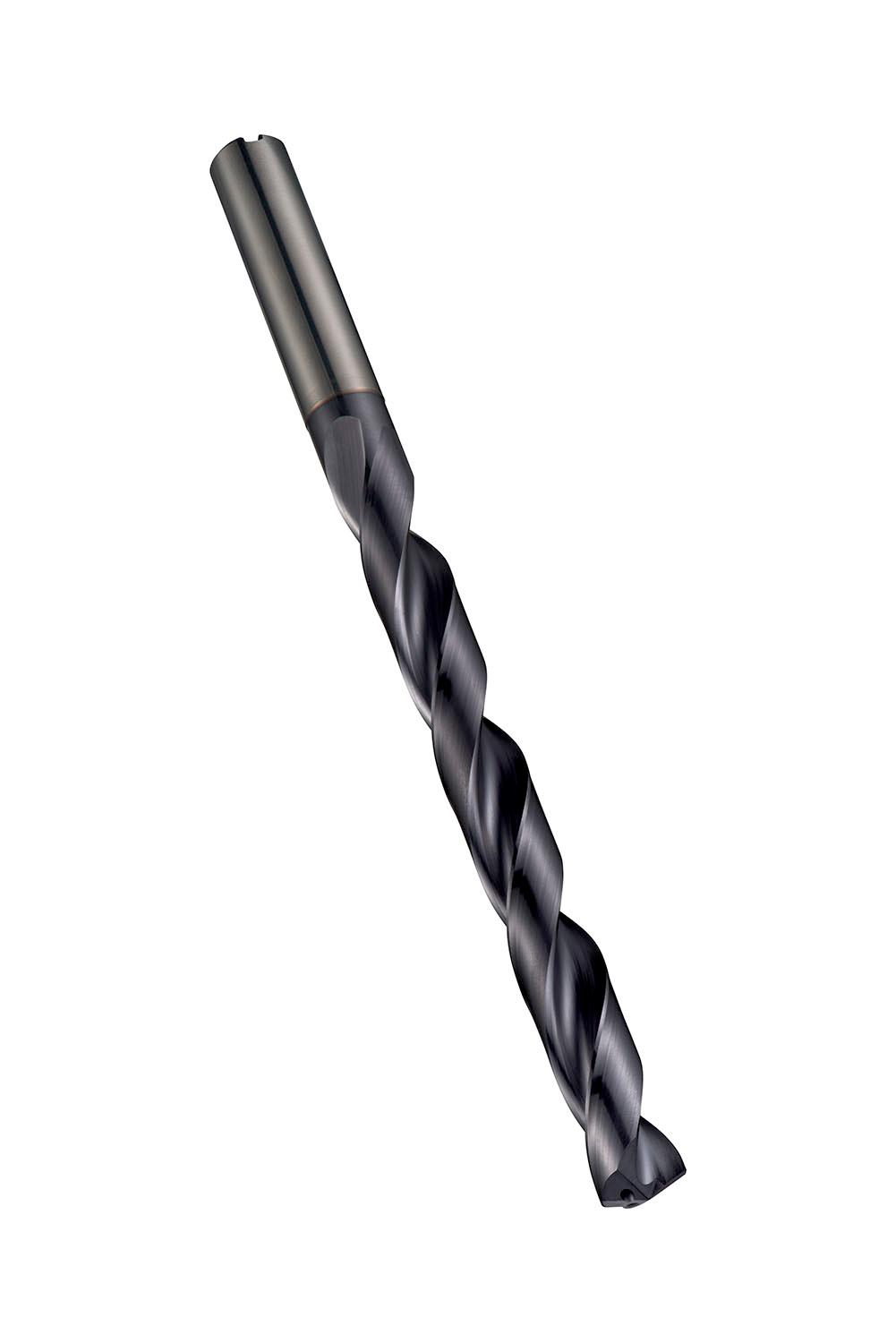

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.4063″ (13/32) with an overall length of 180mm and flute length of 128mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight 0.5885 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760686805
Product number (SAP): 86023553
Ordering code ANSI: R45913/32
Product Line: FORCE X
Gross weight – grams: 165.6
Cutting diameter – fractional inch (DC): 13/32
Cutting diameter – millimeter (DC): 10.32 mm
Cutting diameter – inch (DC): 0.4063 inch
Length chip flute – millimeter (LCF): 128 mm
Overall length – millimeter (OAL): 180 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 5.0394 inch
ISO: R45913/32

Brand

DORMER
