DORMER R45925/64 Carbide Drills

Product Code: R45925/64

$416.94$379.04 Ex. GST

Product Code: R45925/64 SKU R45925/64 Categories , ,

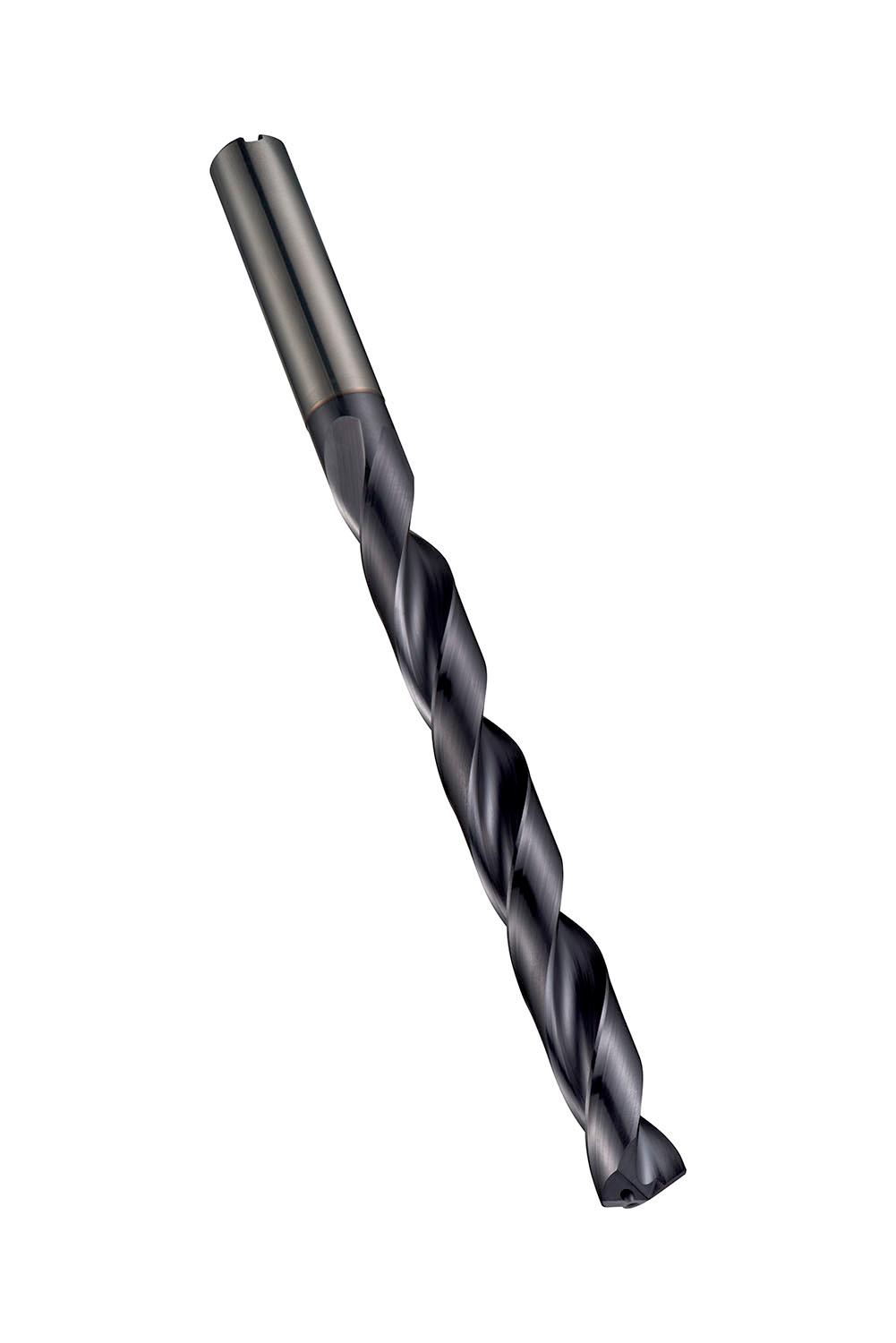

DORMER R45925/64 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.3906″ (25/64) with an overall length of 152mm and flute length of 106mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight 0.4048 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760686768
Product number (SAP): 86023549
Ordering code ANSI: R45925/64
Product Line: FORCE X
Gross weight – grams: 113
Cutting diameter – fractional inch (DC): 25/64
Cutting diameter – millimeter (DC): 9.92 mm
Cutting diameter – inch (DC): 0.3906 inch
Length chip flute – millimeter (LCF): 106 mm
Overall length – millimeter (OAL): 152 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 4.1732 inch
ISO: R45925/64

Brand

DORMER
