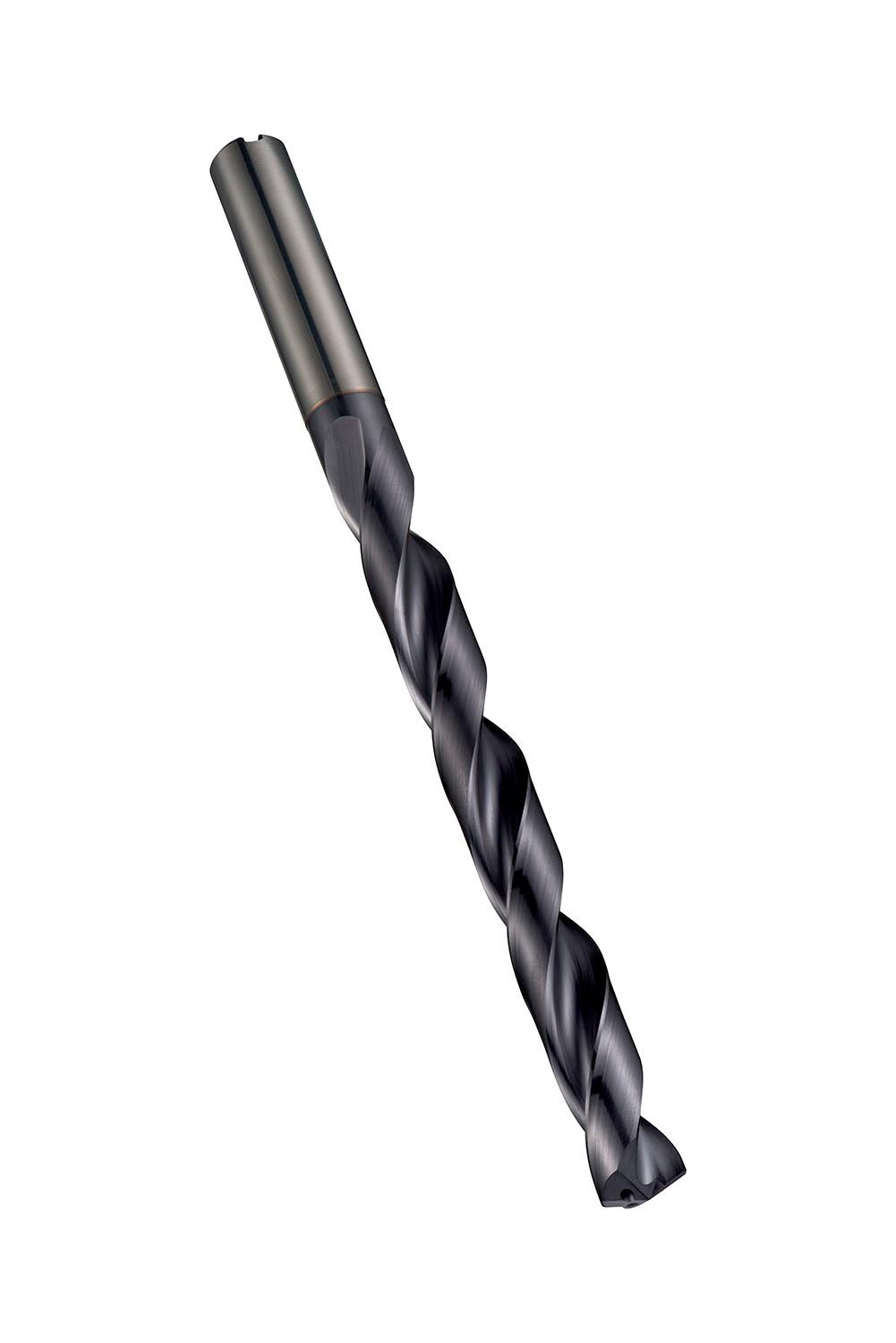

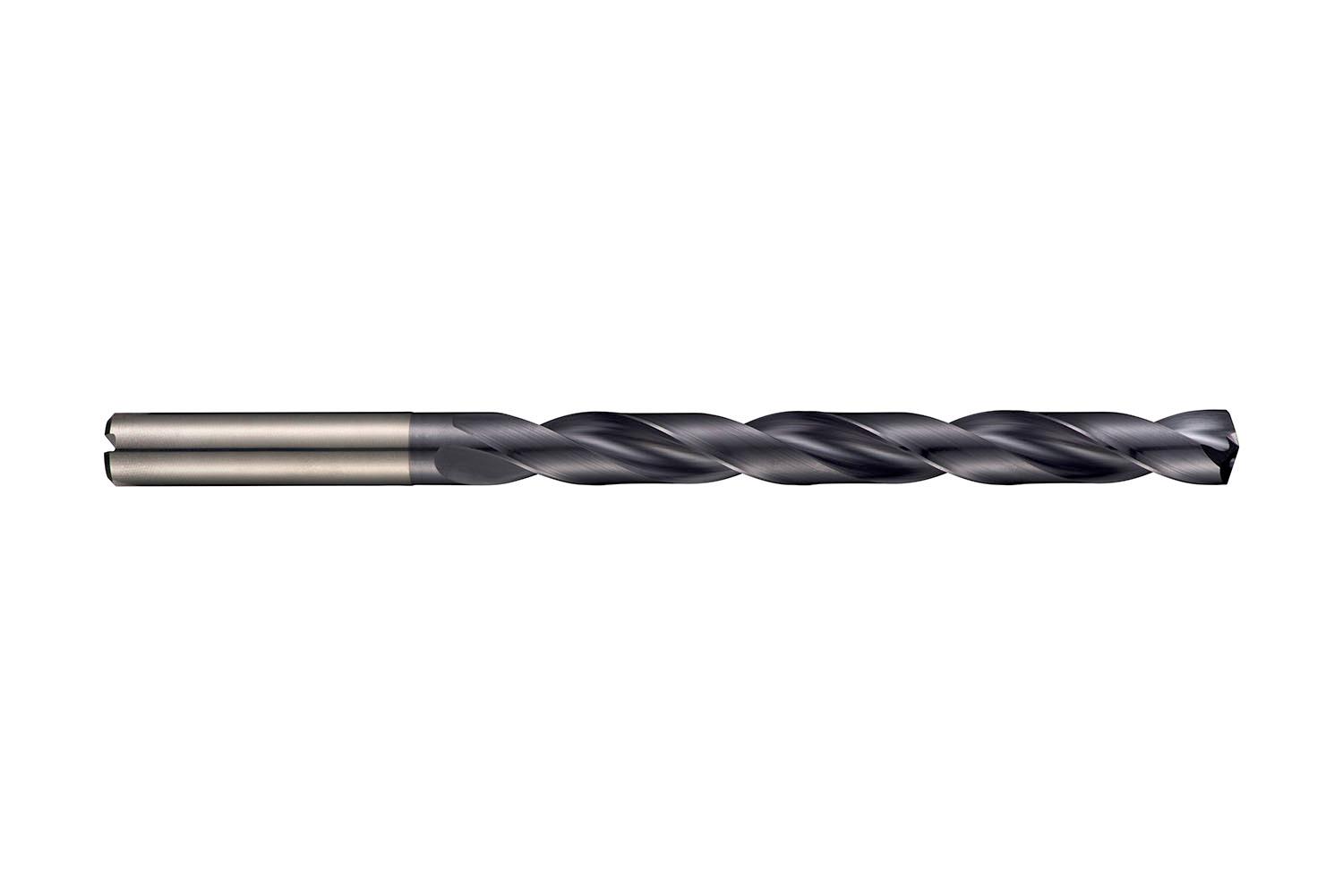

DORMER R4594.2 Carbide Drills

Product Code: R4594.2

$320.64$291.49 Ex. GST

Product Code: R4594.2 SKU R4594.2 Categories , ,
DORMER R4594.2 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

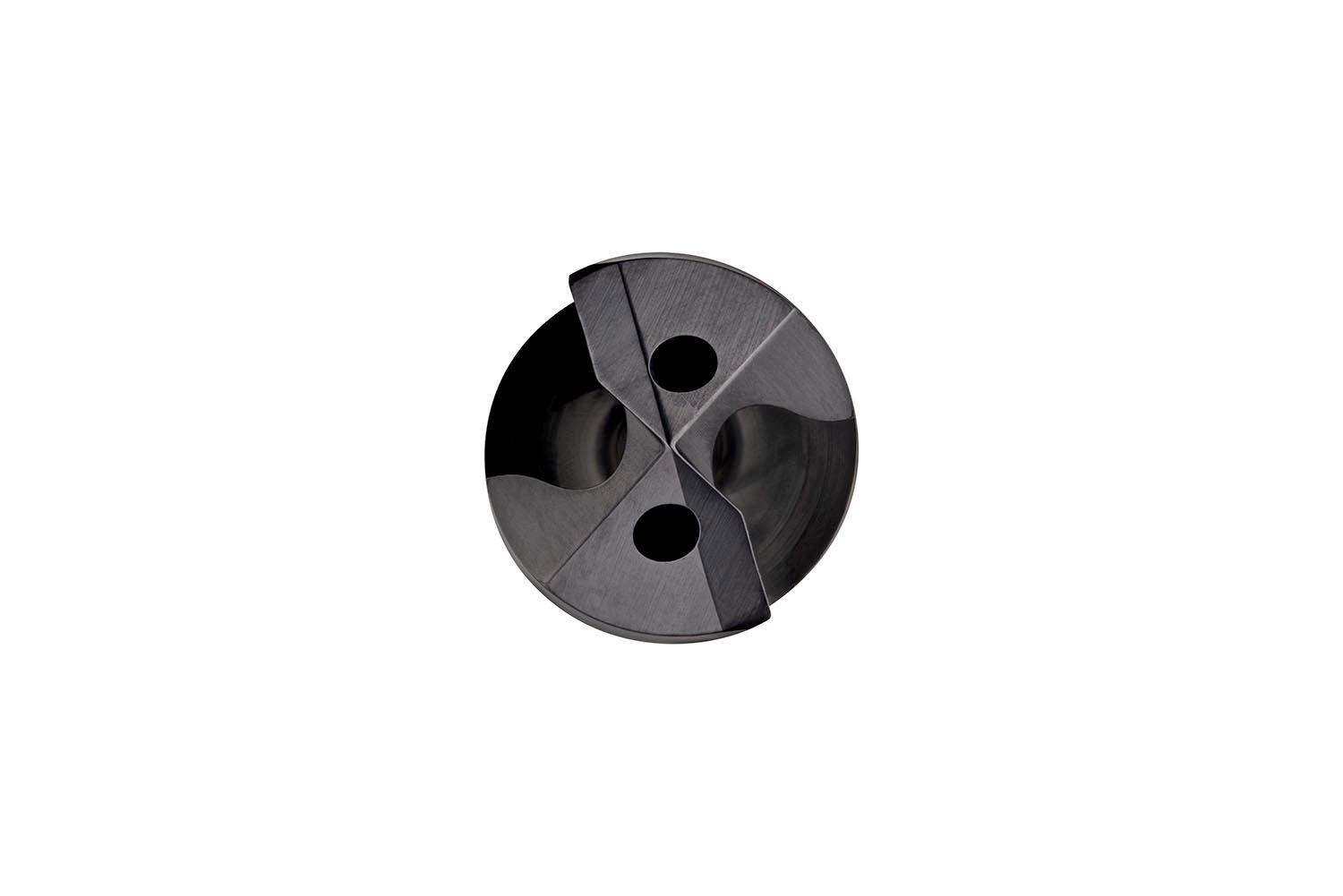

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 4.2mm with an overall length of 90mm and flute length of 48mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight 0.3113 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760686041
Product number (SAP): 86023477
Ordering code ANSI: R4594.2
Product Line: FORCE X
Gross weight – grams: 22.7

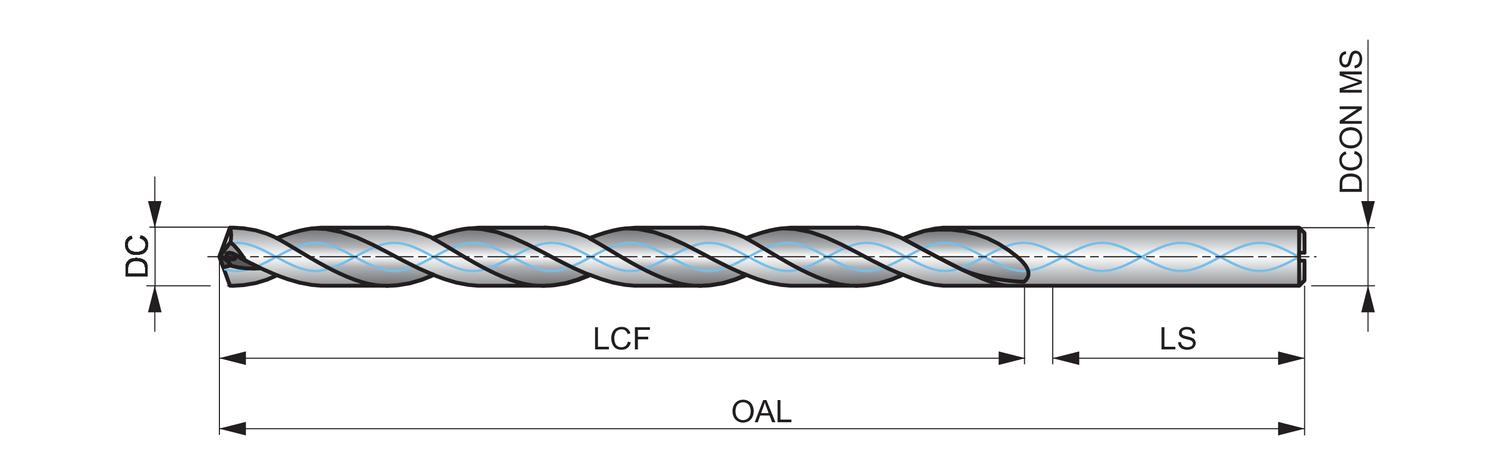

Cutting diameter – millimeter (DC): 4.2 mm
Cutting diameter – inch (DC): 0.1654 inch
Length chip flute – millimeter (LCF): 48 mm
Overall length – millimeter (OAL): 90 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.8898 inch
ISO: R4594.2

Brand

DORMER
