DORMER R4595/16 Carbide Drills

Description

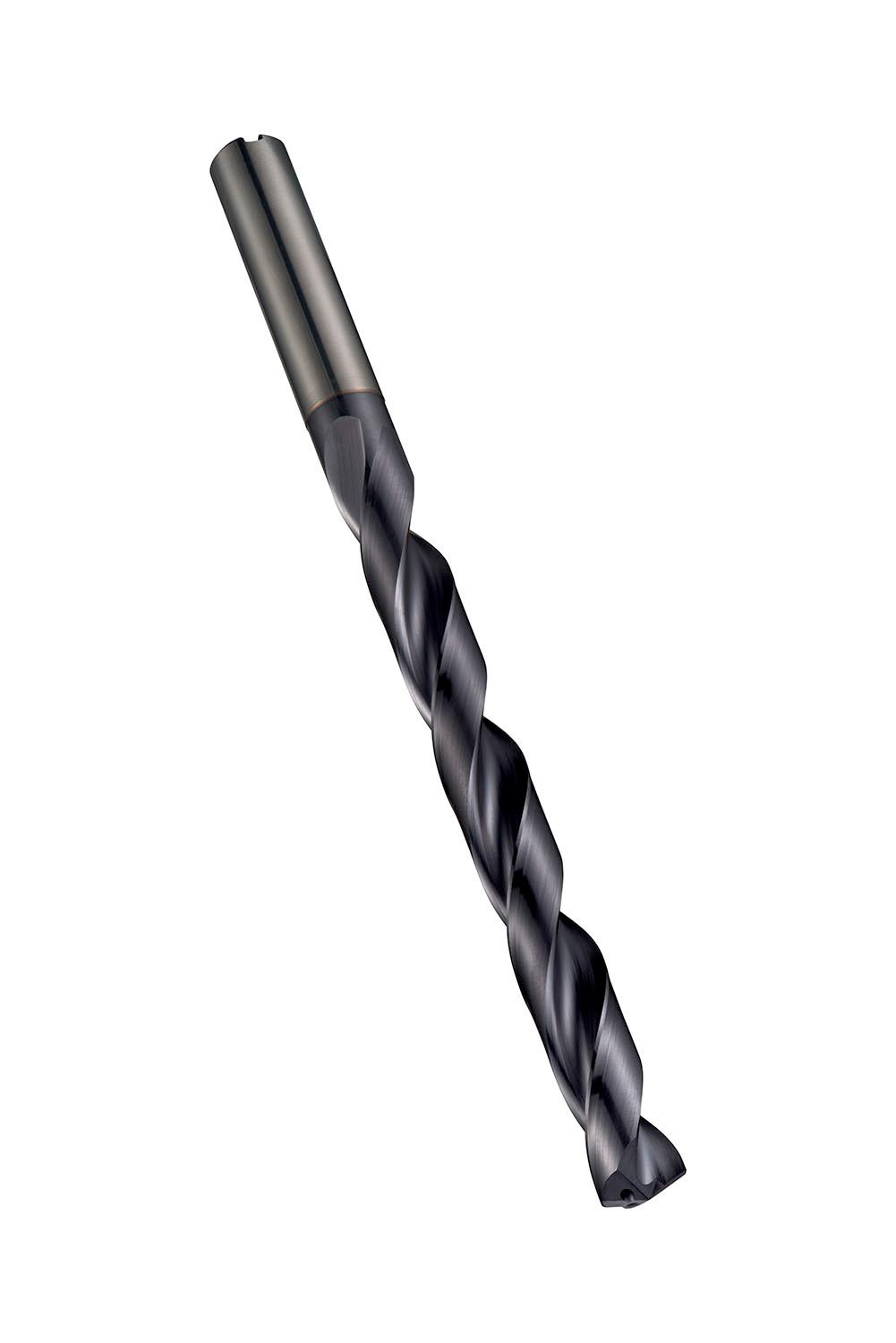

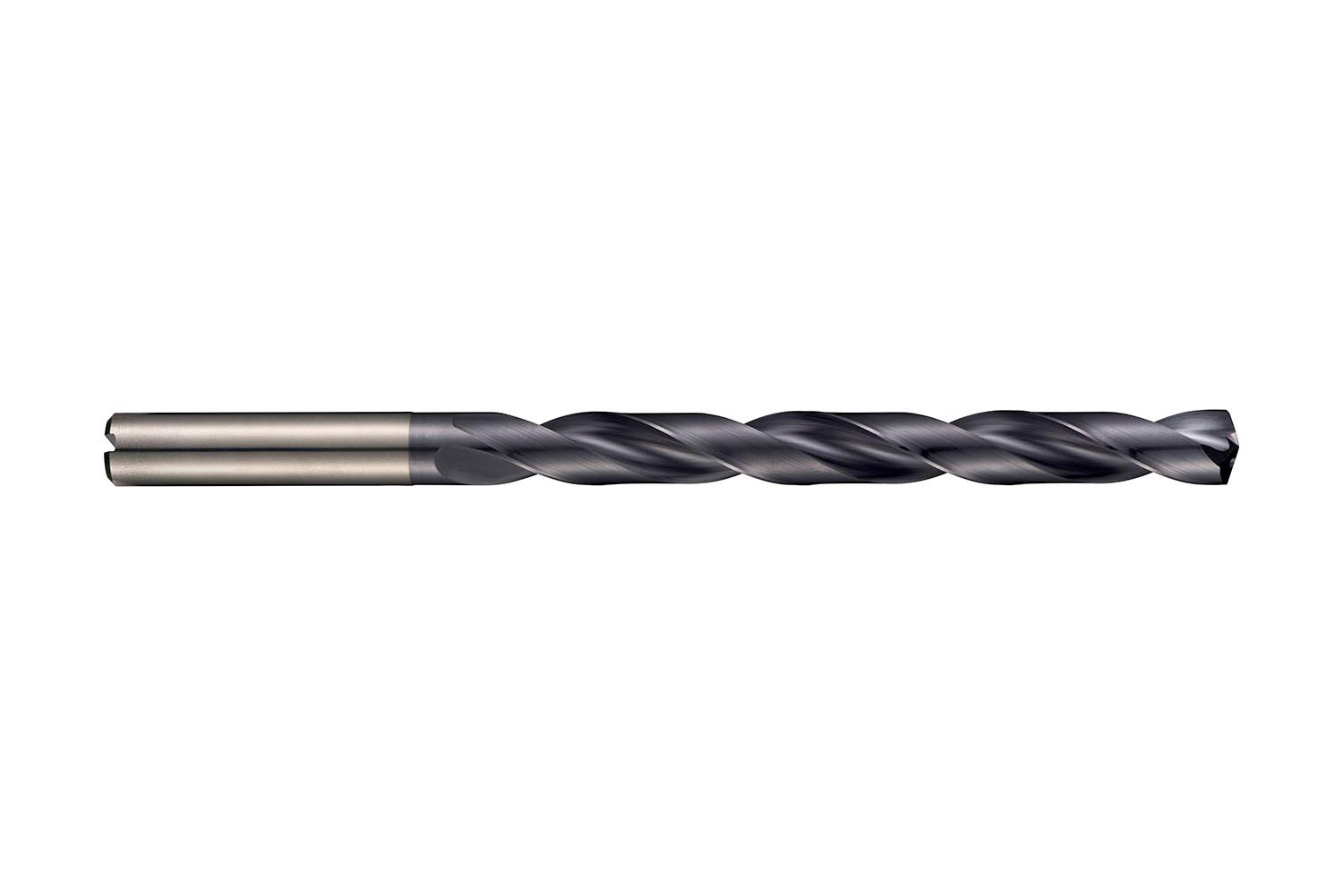

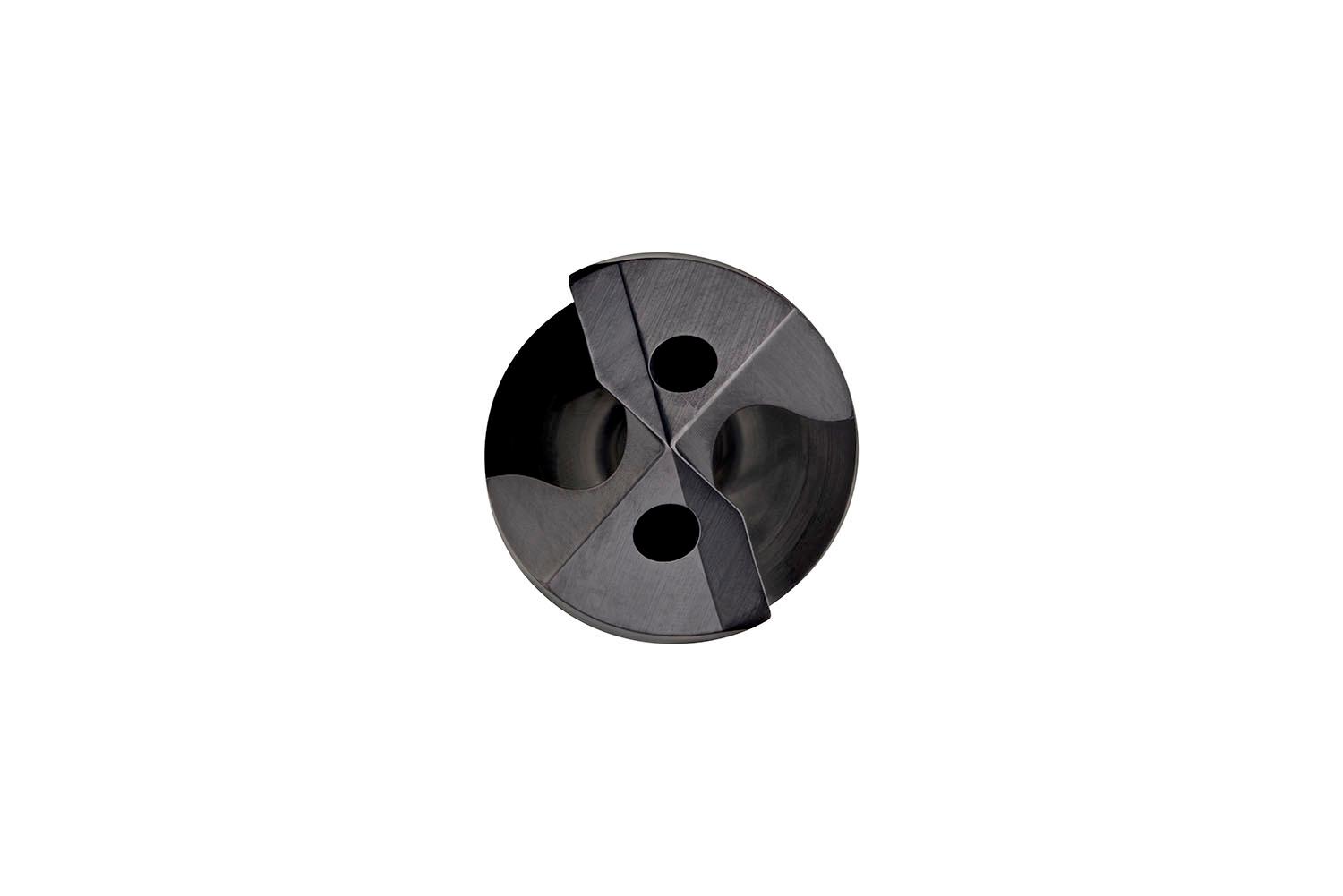

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.3125″ (5/16) with an overall length of 126mm and flute length of 84mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight	0.3586 kg
Dimensions
barcode

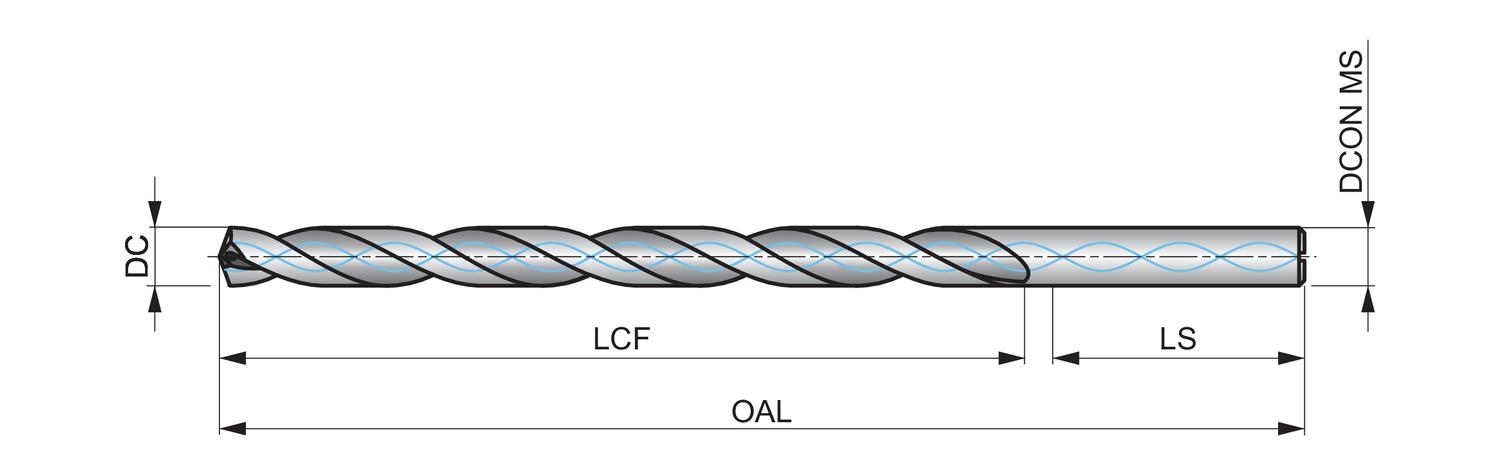

Additional Information	Description: Value EAN number: 7320760686515 Product number (SAP): 86023524 Ordering code ANSI: R4595/16 Product Line: FORCE X Gross weight – grams: 68.2 Cutting diameter – fractional inch (DC): 5/16 Cutting diameter – millimeter (DC): 7.94 mm Cutting diameter – inch (DC): 0.3125 inch Length chip flute – millimeter (LCF): 84 mm Overall length – millimeter (OAL): 126 mm Shank length – millimeter (LS): 36 mm Connection diameter – millimeter (DCON MS): 8 mm Length chip flute – inch (LCF): 3.3071 inch ISO: R4595/16
