DORMER R4595.4 Carbide Drills

Product Code: R4595.4

$320.64$291.49 Ex. GST

Product Code: R4595.4 SKU R4595.4 Categories , ,
DORMER R4595.4 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

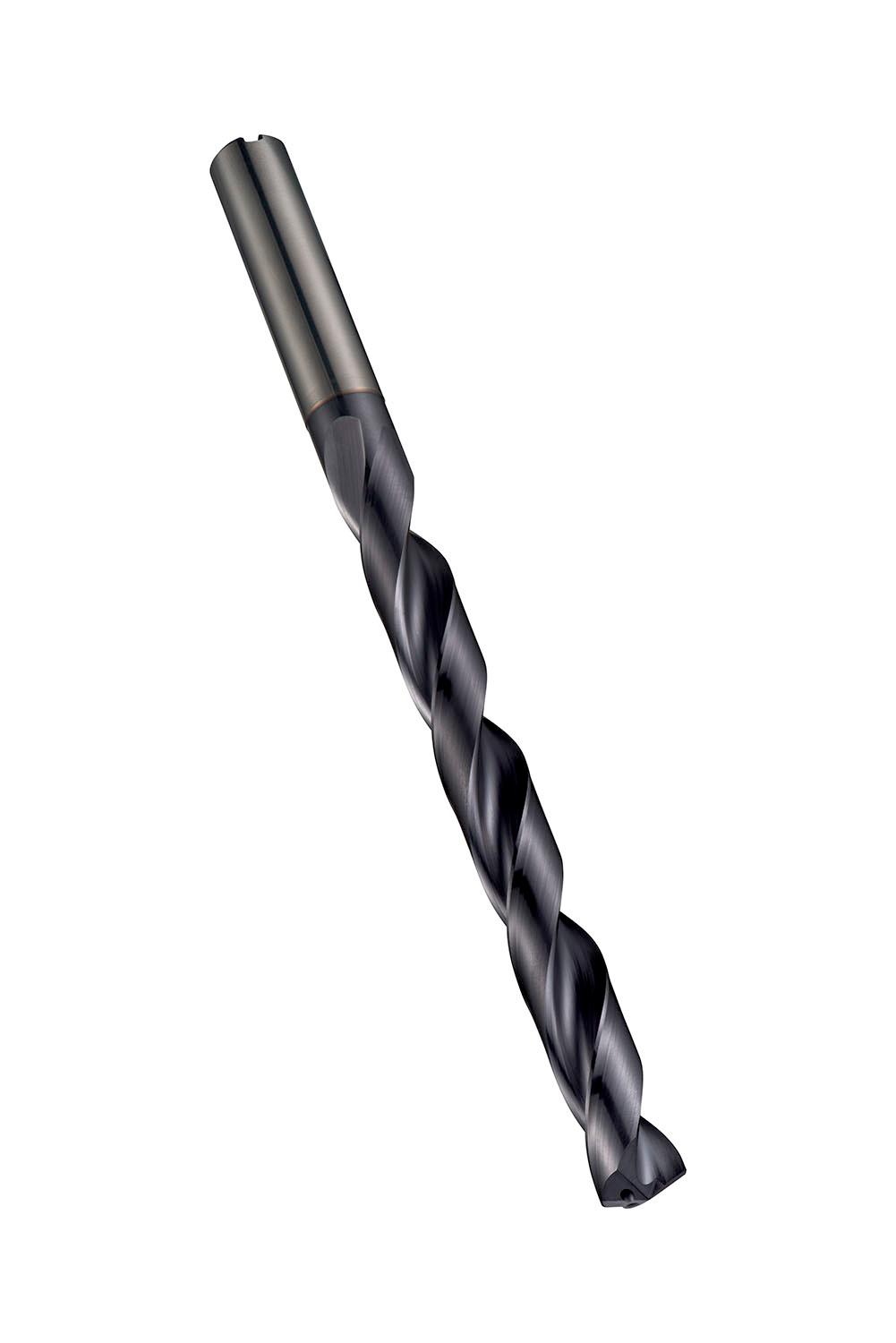

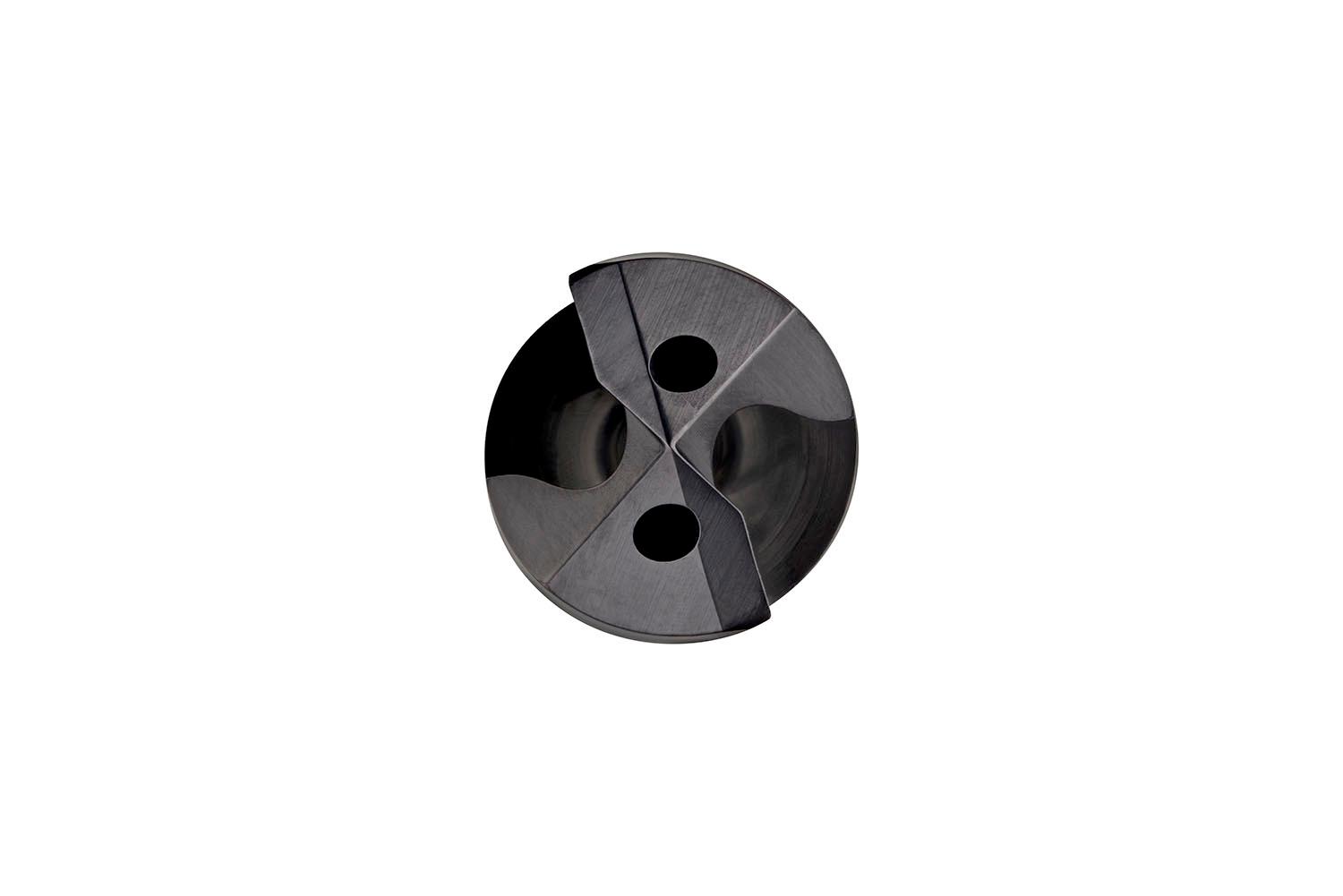

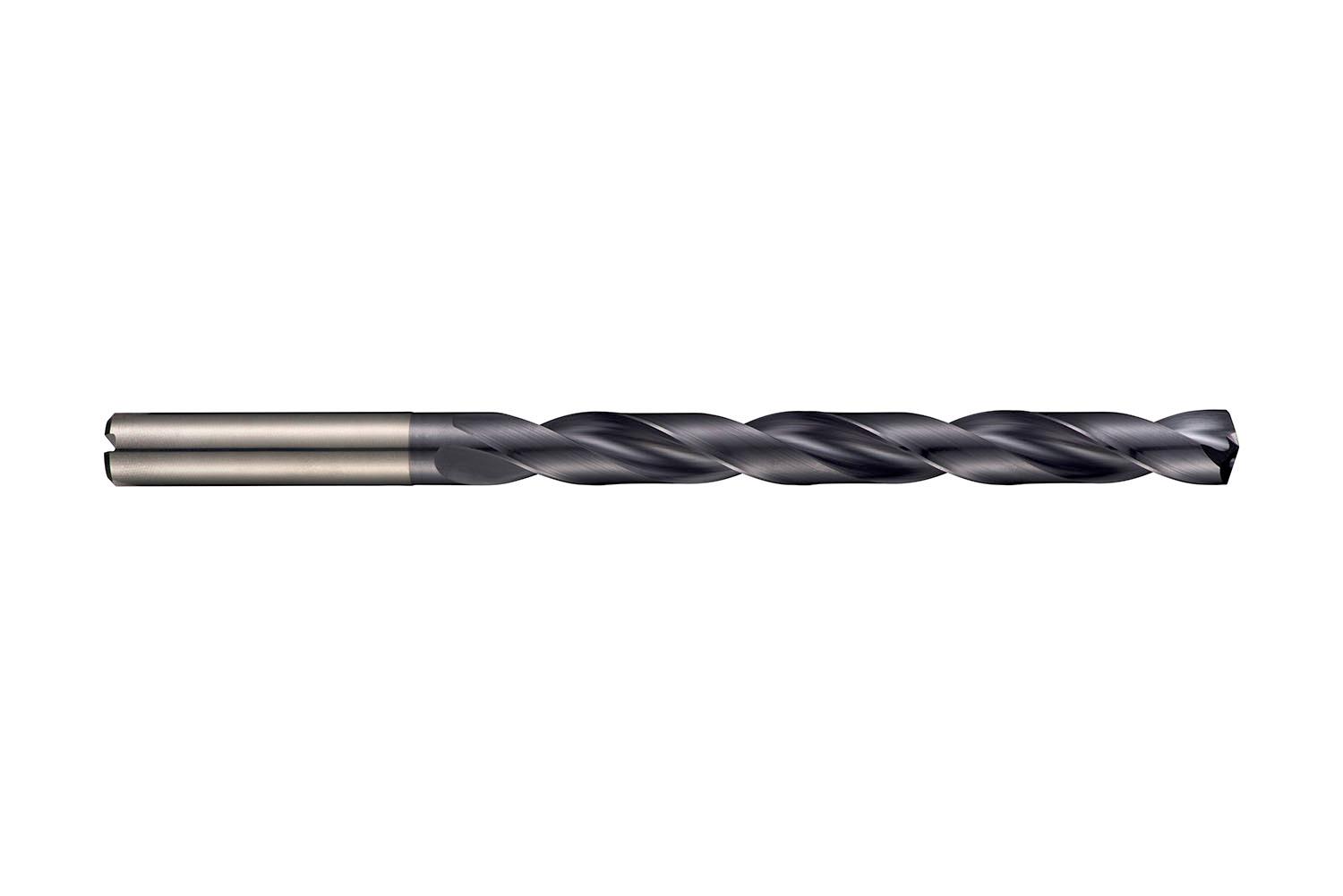

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 5.4mm with an overall length of 104mm and flute length of 62mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight 0.3113 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760686195
Product number (SAP): 86023492
Ordering code ANSI: R4595.4
Product Line: FORCE X
Gross weight – grams: 29

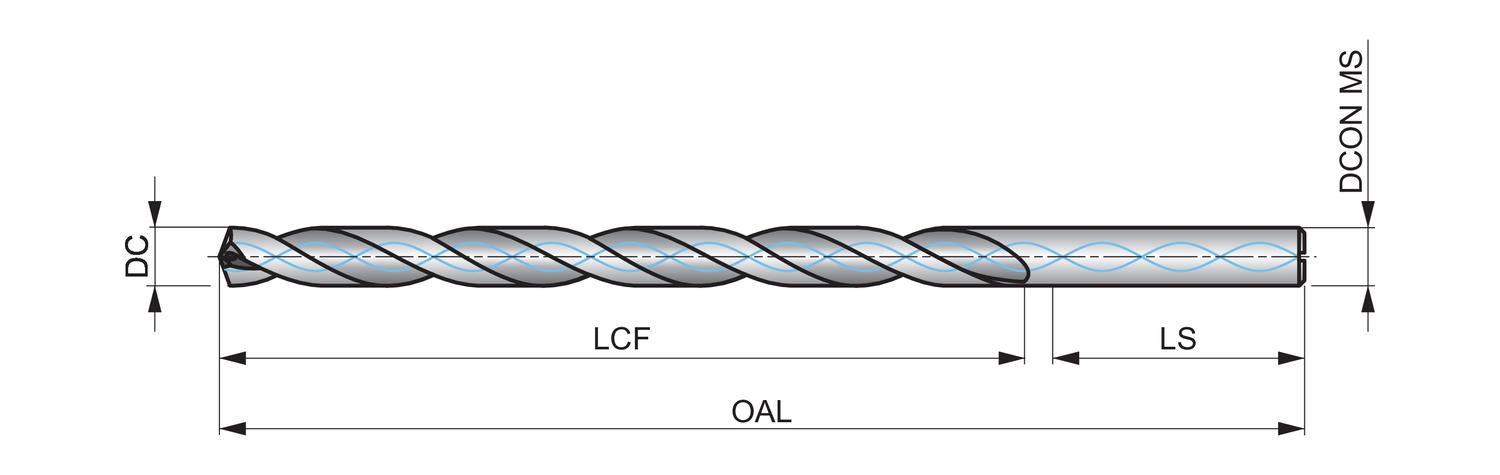

Cutting diameter – millimeter (DC): 5.4 mm
Cutting diameter – inch (DC): 0.2126 inch
Length chip flute – millimeter (LCF): 62 mm
Overall length – millimeter (OAL): 104 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 2.4409 inch
ISO: R4595.4

Brand

DORMER
