DORMER R4595/8 Carbide Drills

Product Code: R4595/8

$1,010.64$918.76 Ex. GST

Product Code: R4595/8 SKU R4595/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

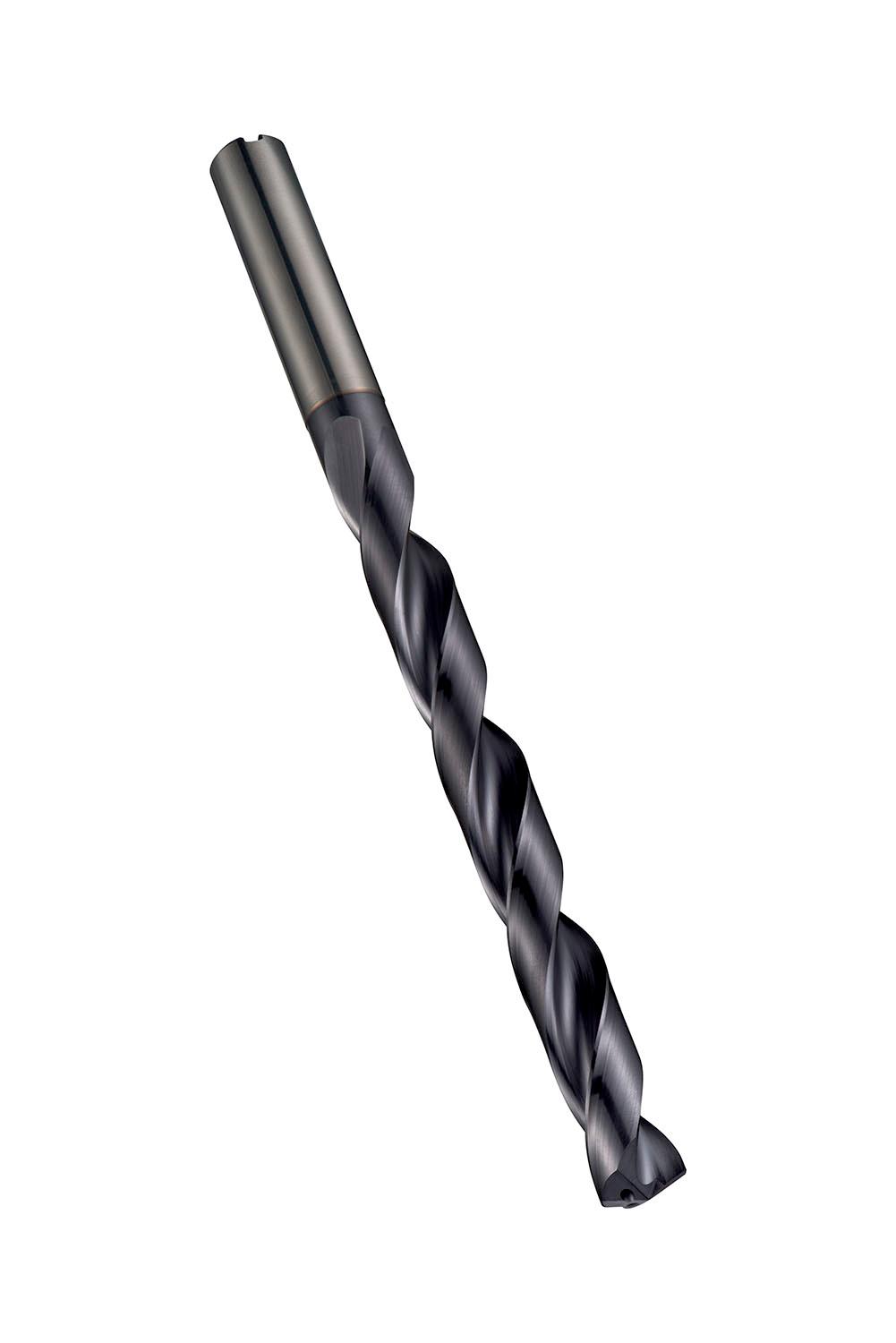

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.6250″ (5/8) with an overall length of 227mm and flute length of 172mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight 0.9812 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760687147
Product number (SAP): 86023587
Ordering code ANSI: R4595/8
Product Line: FORCE X
Gross weight – grams: 420
Cutting diameter – fractional inch (DC): 5/8
Cutting diameter – millimeter (DC): 15.88 mm
Cutting diameter – inch (DC): 0.625 inch
Length chip flute – millimeter (LCF): 172 mm
Overall length – millimeter (OAL): 227 mm
Shank length – millimeter (LS): 48 mm
Connection diameter – millimeter (DCON MS): 16 mm
Length chip flute – inch (LCF): 6.7717 inch
ISO: R4595/8

Brand

DORMER
