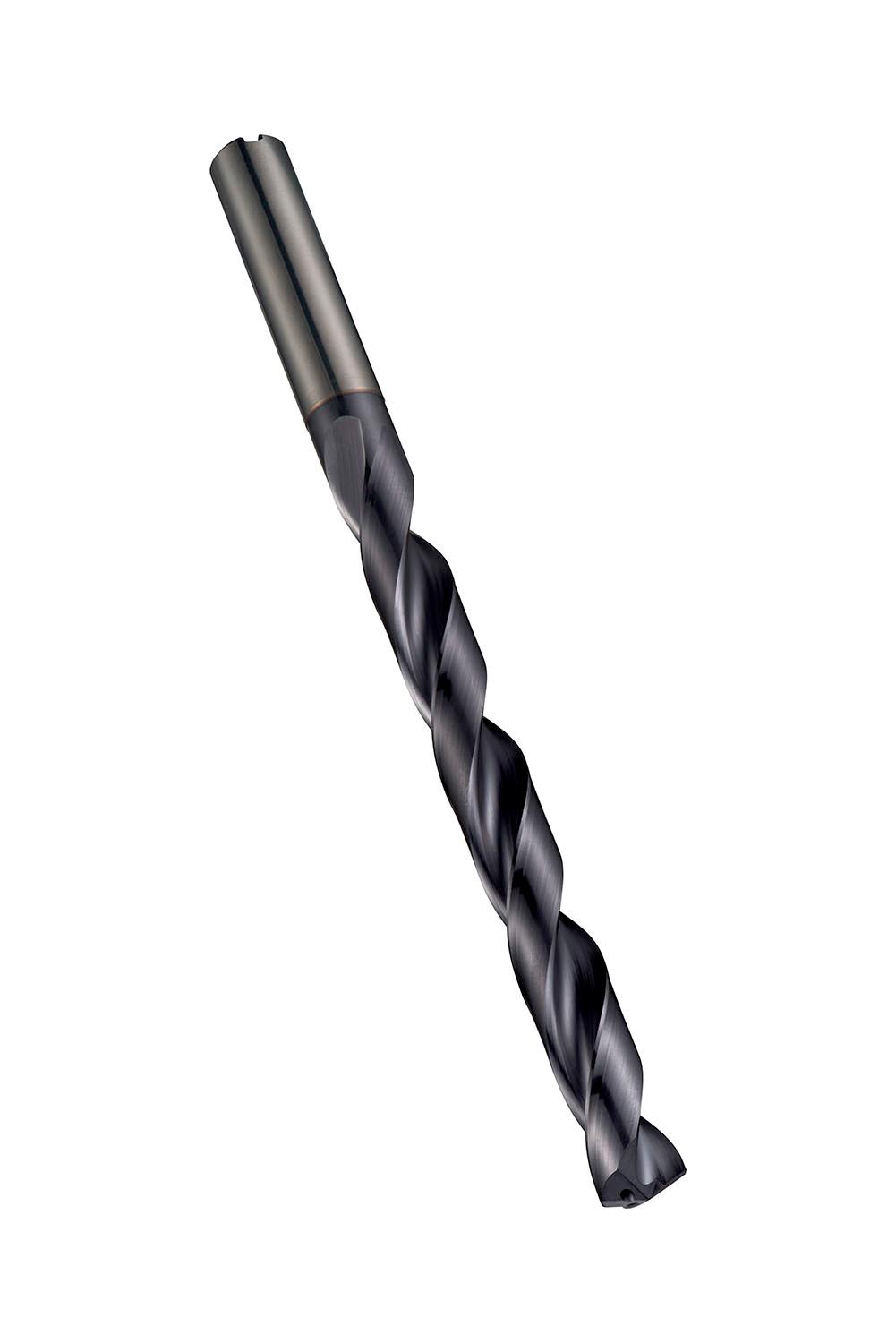

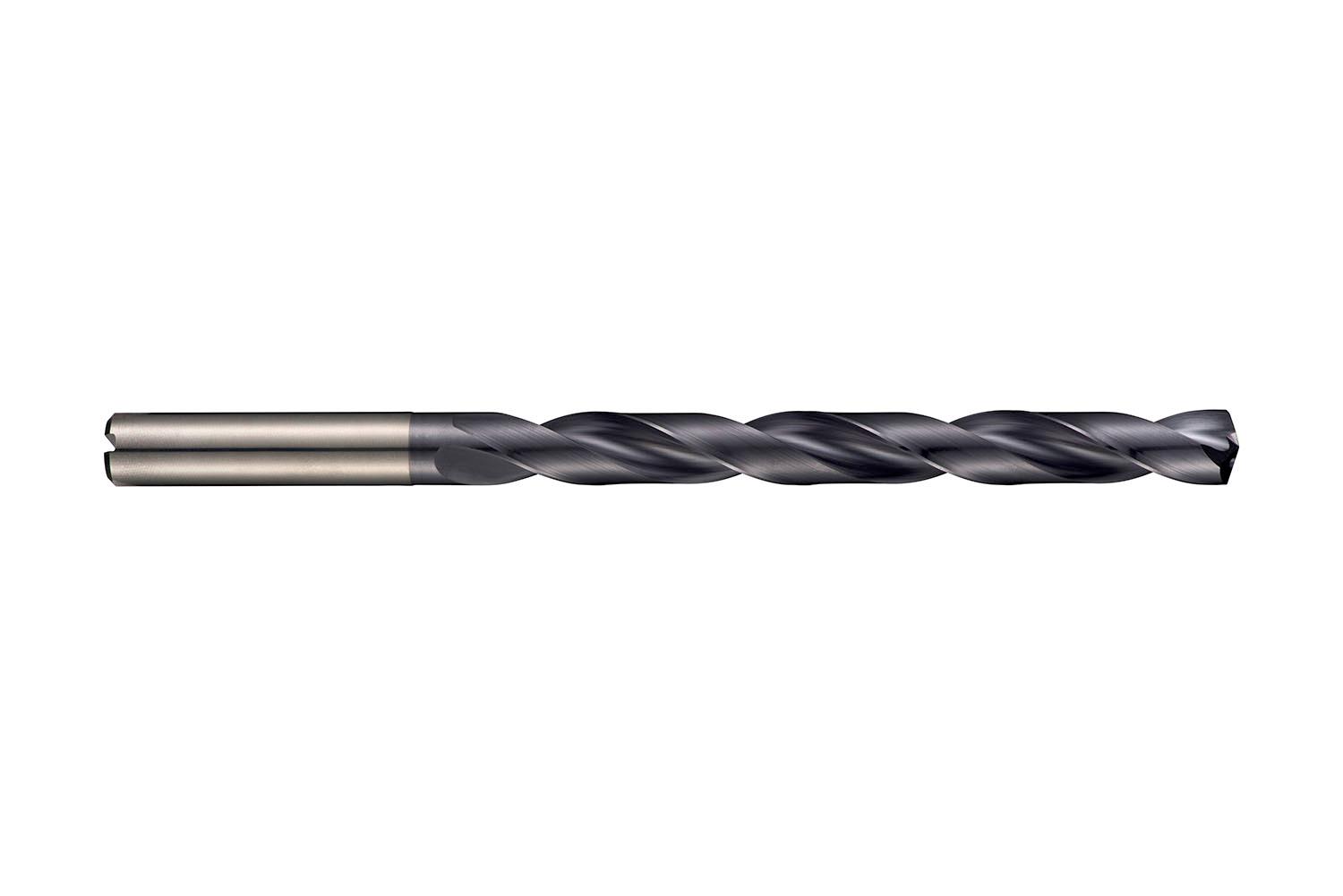

DORMER R4596.7 Carbide Drills

Product Code: R4596.7

$369.36$335.78 Ex. GST

Product Code: R4596.7 SKU R4596.7 Categories , ,
DORMER R4596.7 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

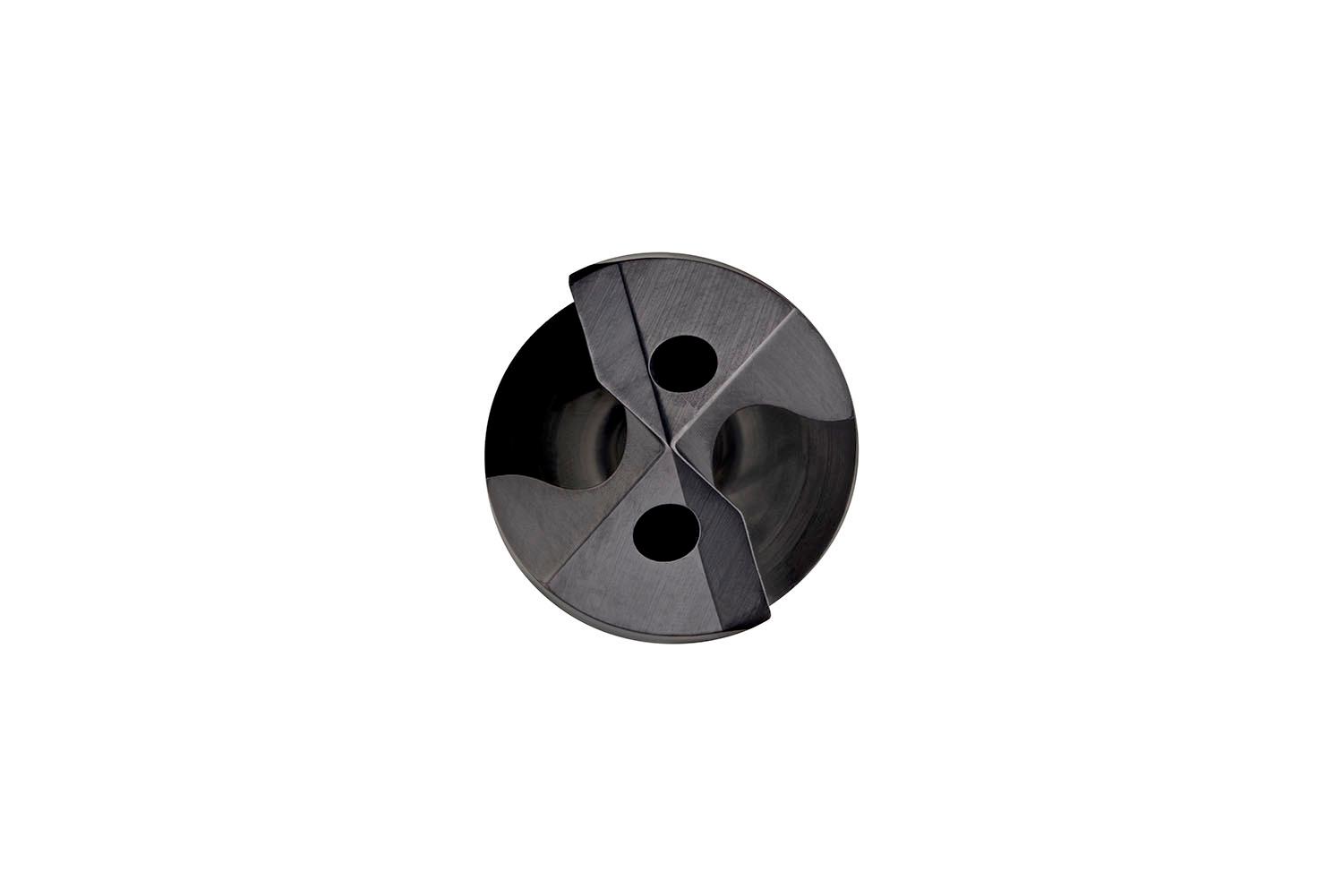

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 6.7mm with an overall length of 126mm and flute length of 84mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight 0.3586 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760686355
Product number (SAP): 86023508
Ordering code ANSI: R4596.7
Product Line: FORCE X
Gross weight – grams: 57.5

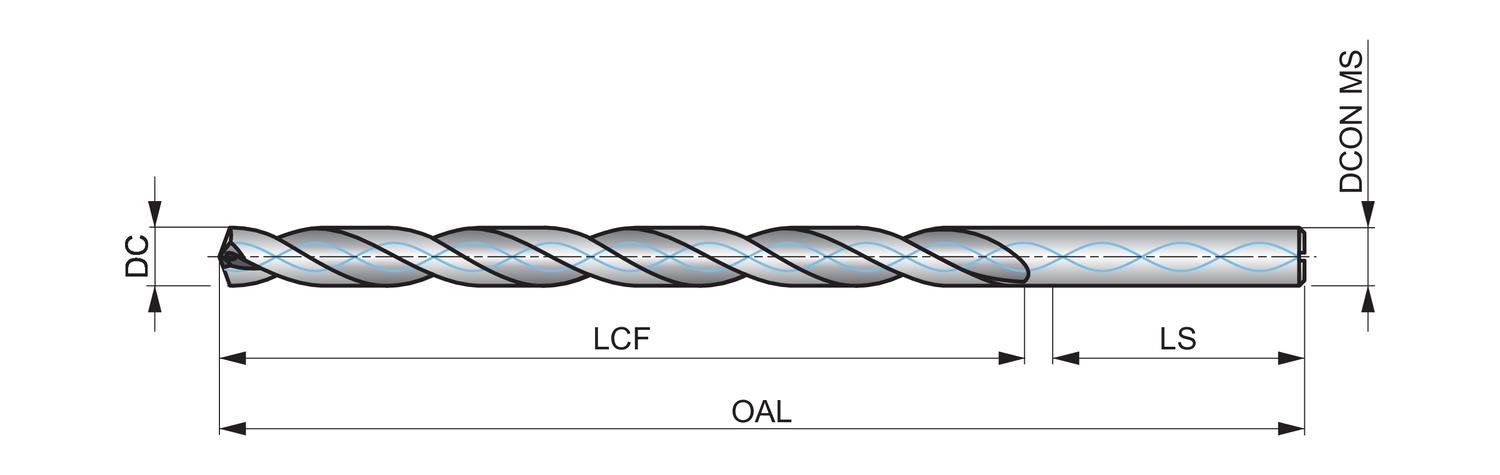

Cutting diameter – millimeter (DC): 6.7 mm
Cutting diameter – inch (DC): 0.2638 inch
Length chip flute – millimeter (LCF): 84 mm
Overall length – millimeter (OAL): 126 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 3.3071 inch
ISO: R4596.7

Brand

DORMER
