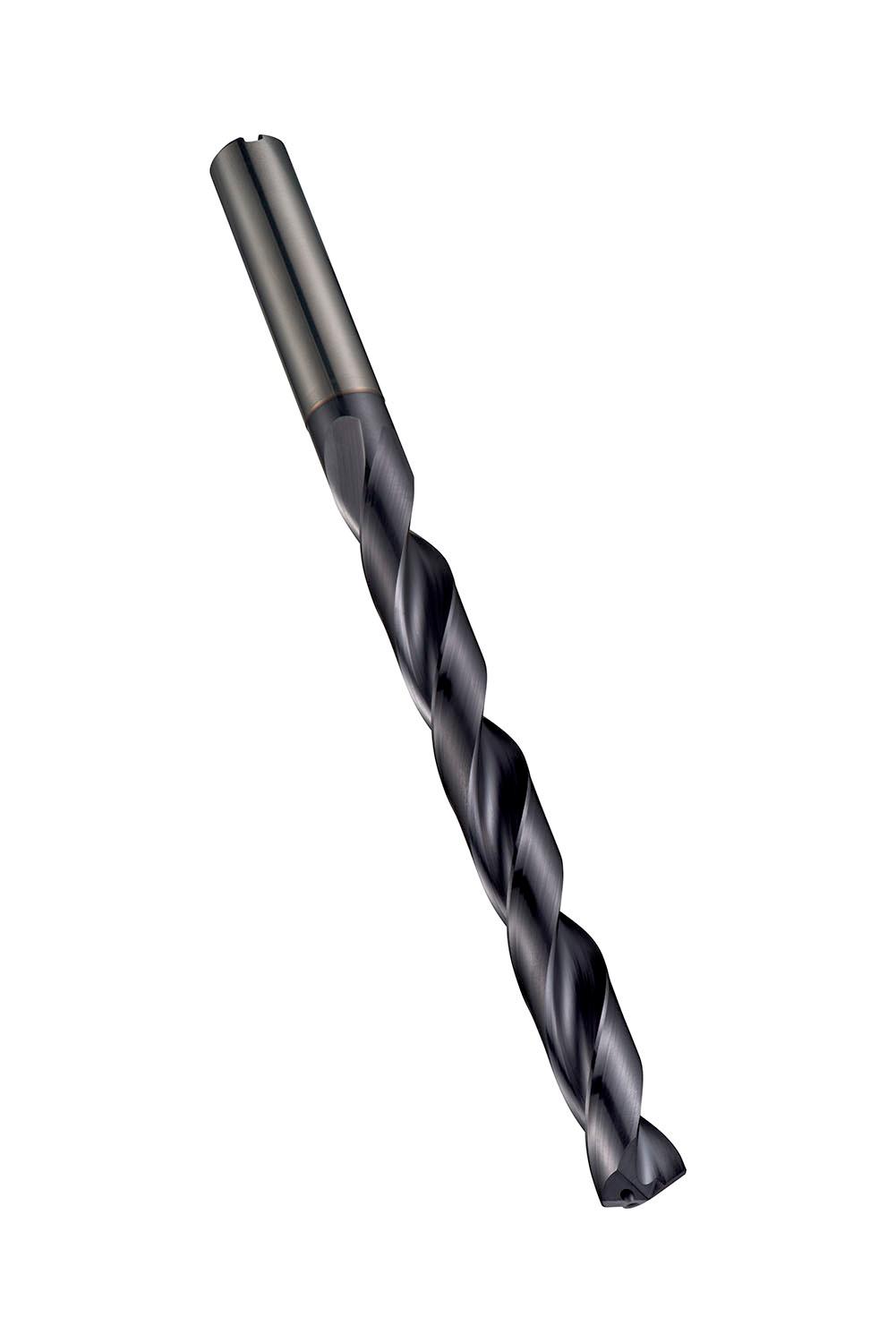

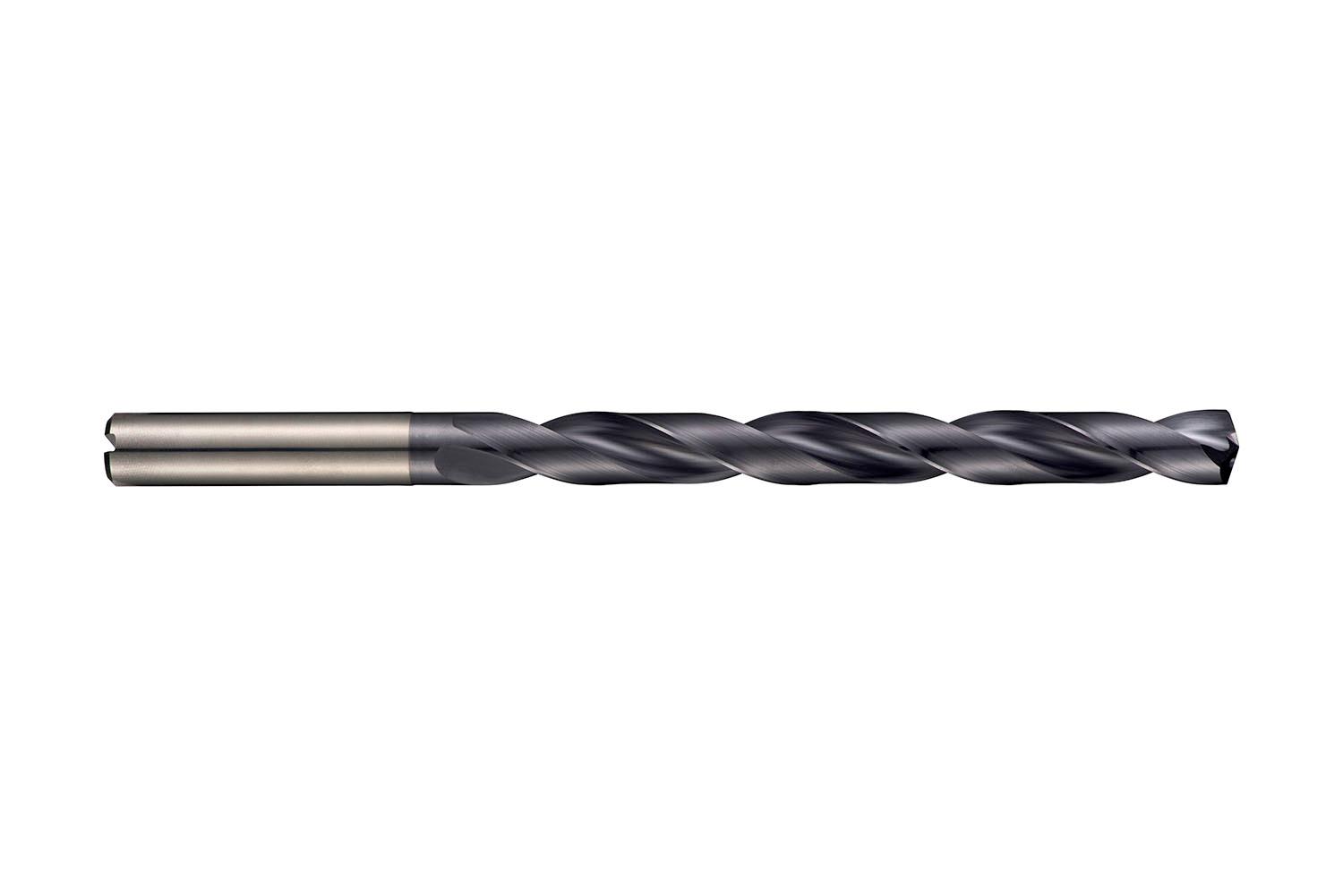

DORMER R4599.4 Carbide Drills

Product Code: R4599.4

$416.94$379.04 Ex. GST

Product Code: R4599.4 SKU R4599.4 Categories , ,
DORMER R4599.4 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

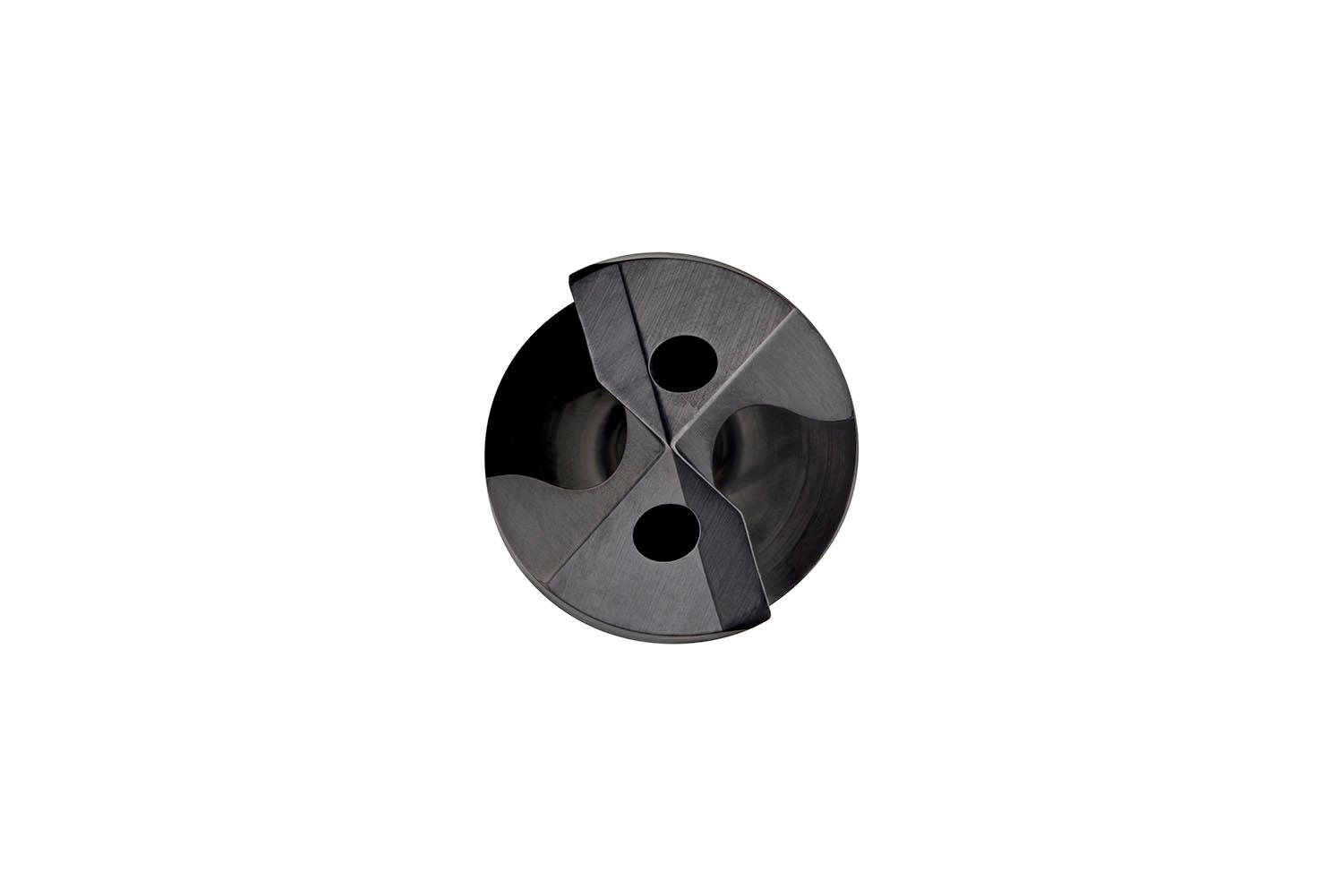

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 9.4mm with an overall length of 152mm and flute length of 106mm according to DORMER standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 8xD drilling without pecking in steel, stainless steel and cast iron

Additional information

Weight 0.4048 kg
Dimensions
barcode
Additional Information

Description: Value

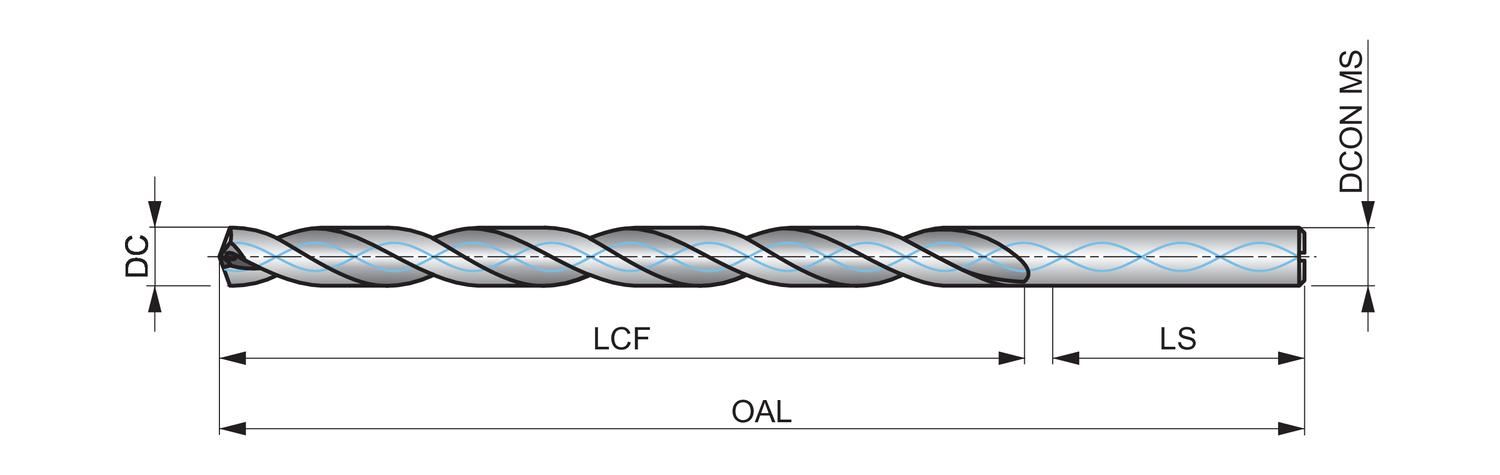

EAN number: 7320760686690 Product number (SAP): 86023542 Ordering code ANSI: R4599.4 Product Line: FORCE X Gross weight: 110.1 g Cutting diameter (DC): 9.4 mm / 0.3701 inch Length chip flute (LCF): 106 mm / 4.1732 inch Overall length (OAL): 152 mm Shank length (LS): 40 mm Connection diameter (DCON MS): 10 mm ISO: R4599.4

Brand

DORMER
