DORMER R46310.0 Carbide Drills

Product Code: R46310.0

$235.66$214.24 Ex. GST

Product Code: R46310.0 SKU R46310.0 Categories , ,
DORMER R46310.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

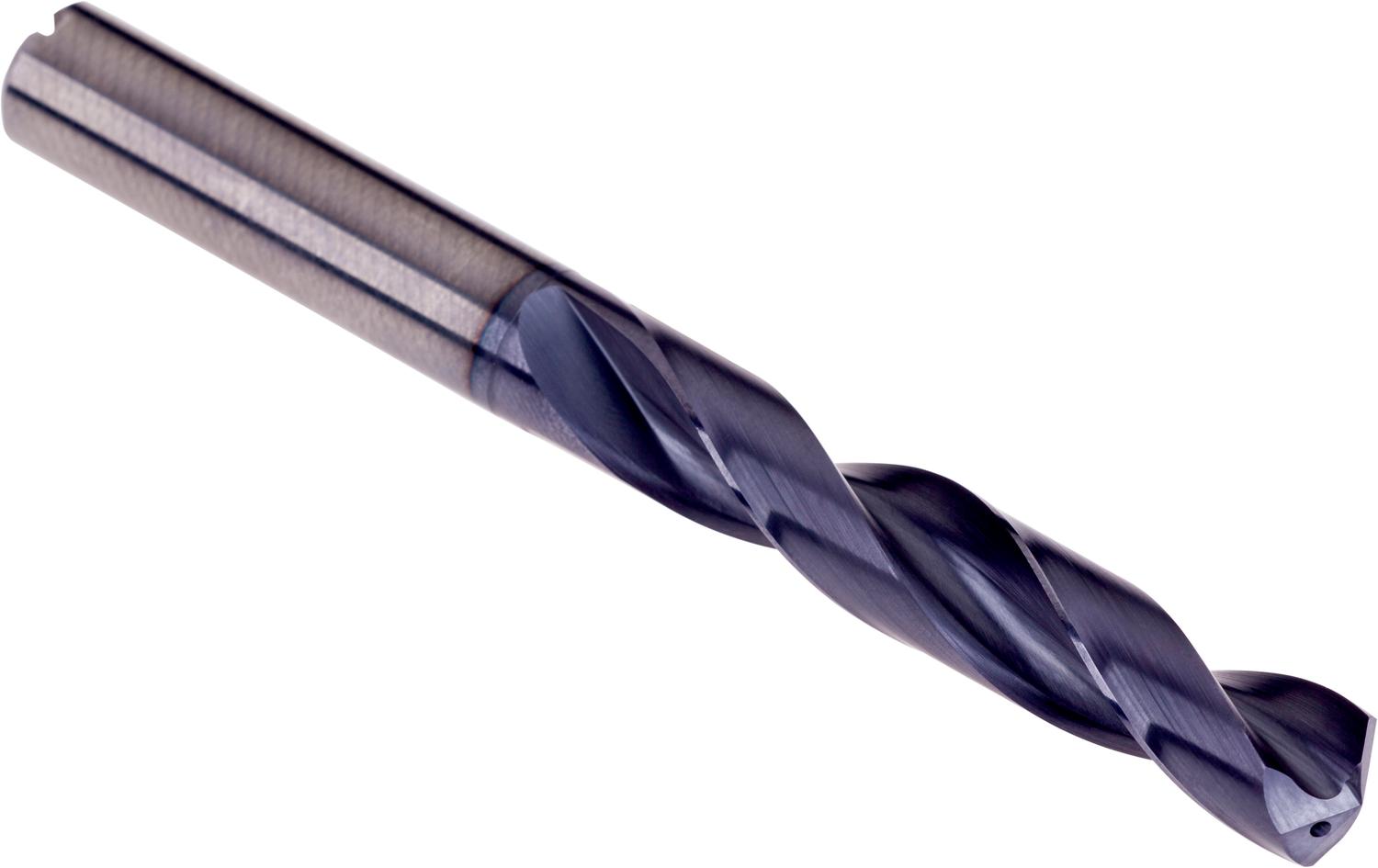

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 10mm with an overall length of 103mm and flute length of 61mm according to DIN 6537 L standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.2288 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760835555
Product number (SAP): 86034570
Ordering code ANSI: R46310.0
Product Line: FORCE M
Gross weight – grams: 88.3
Cutting diameter – millimeter (DC): 10 mm
Cutting diameter – inch (DC): 0.3937 inch
Length chip flute – millimeter (LCF): 61 mm
Overall length – millimeter (OAL): 103 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 2.4016 inch
ISO: R46310.0

Brand

DORMER
