DORMER R46310.3 Carbide Drills

Product Code: R46310.3

$342.17$311.06 Ex. GST

Product Code: R46310.3 SKU R46310.3 Categories , ,
DORMER R46310.3 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

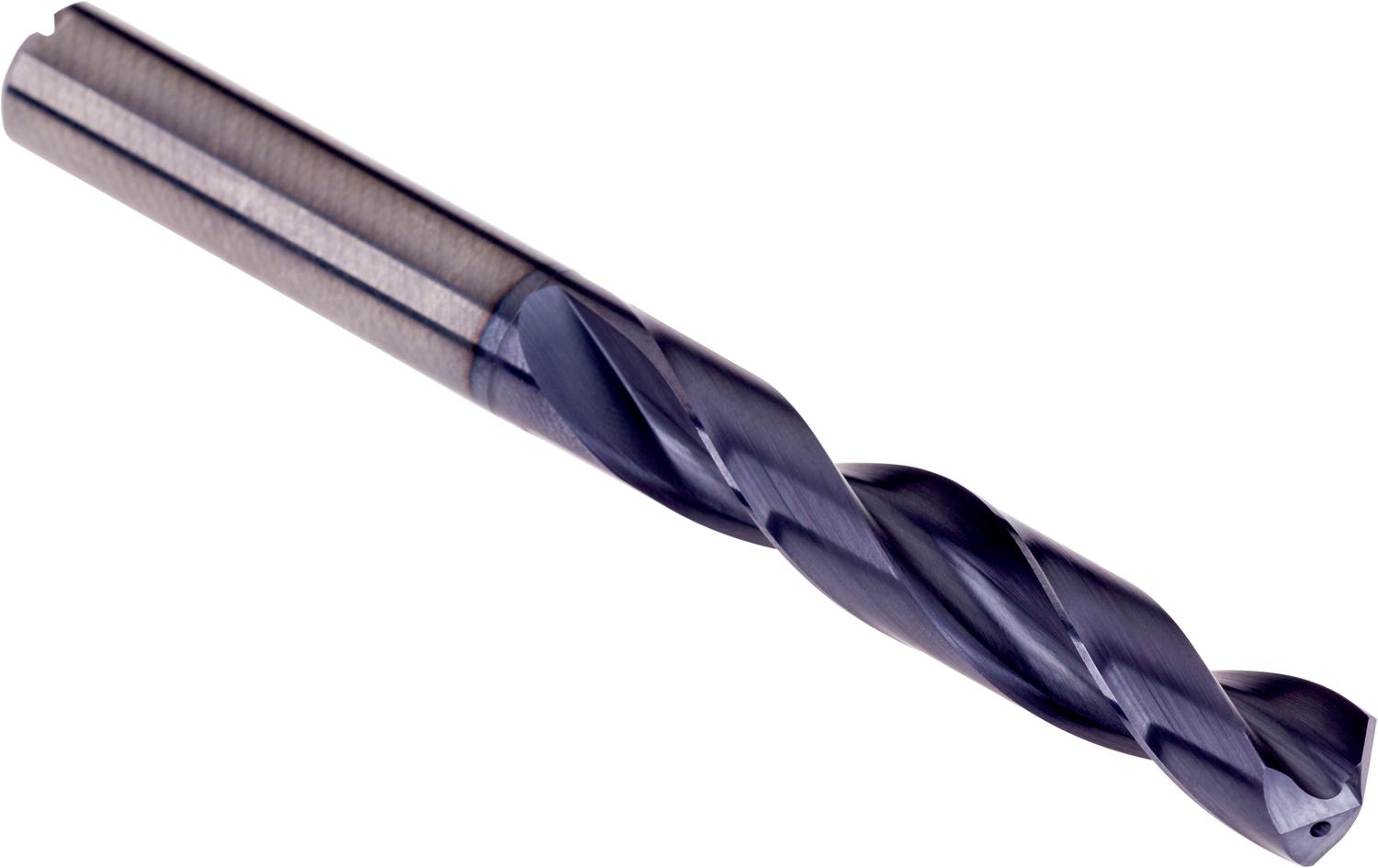

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 10.3mm with an overall length of 118mm and flute length of 70mm according to DIN 6537 L standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.3322 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760835593
Product number (SAP): 86034574
Ordering code ANSI: R46310.3
Product Line: FORCE M
Gross weight – grams: 123.6
Cutting diameter – millimeter (DC): 10.3 mm
Cutting diameter – inch (DC): 0.4055 inch
Length chip flute – millimeter (LCF): 70 mm
Overall length – millimeter (OAL): 118 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 2.7559 inch
ISO: R46310.3

Brand

DORMER
