DORMER R46315.5 Carbide Drills

Product Code: R46315.5

$572.17$520.15 Ex. GST

Product Code: R46315.5 SKU R46315.5 Categories , ,

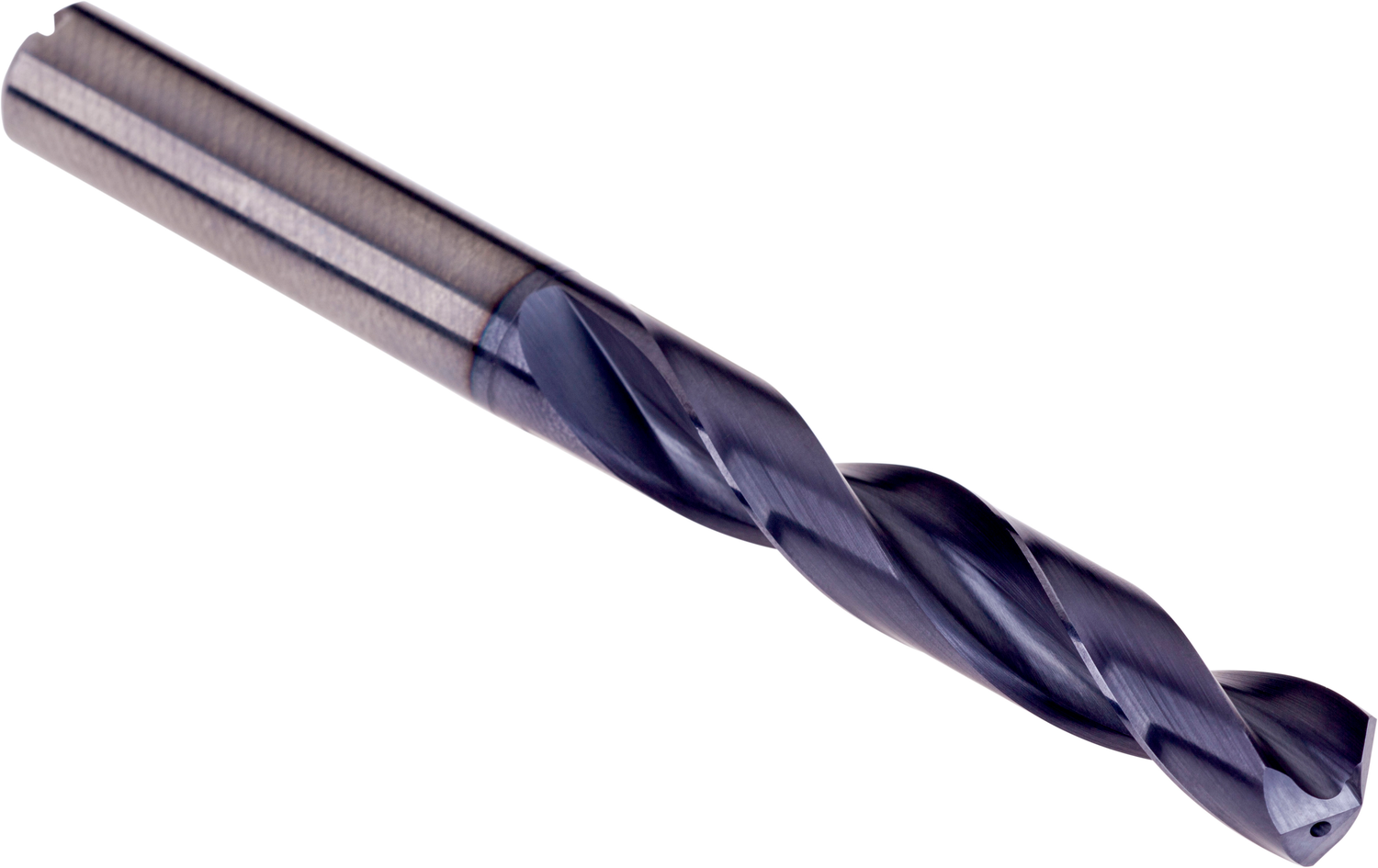

DORMER R46315.5 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 15.5mm with an overall length of 133mm and flute length of 82mm according to DIN 6537 L standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.5555 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760836033
Product number (SAP): 86034618
Ordering code ANSI: R46315.5
Product Line: FORCE M
Gross weight – grams: 274.5
Cutting diameter – millimeter (DC): 15.5 mm
Cutting diameter – inch (DC): 0.6102 inch
Length chip flute – millimeter (LCF): 82 mm
Overall length – millimeter (OAL): 133 mm
Shank length – millimeter (LS): 48 mm
Connection diameter – millimeter (DCON MS): 16 mm
Length chip flute – inch (LCF): 3.2283 inch
ISO: R46315.5

Brand

DORMER
