DORMER R46315/64 Carbide Drills

Product Code: R46315/64

$181.28$164.80 Ex. GST

Product Code: R46315/64 SKU R46315/64 Categories , ,
DORMER R46315/64 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

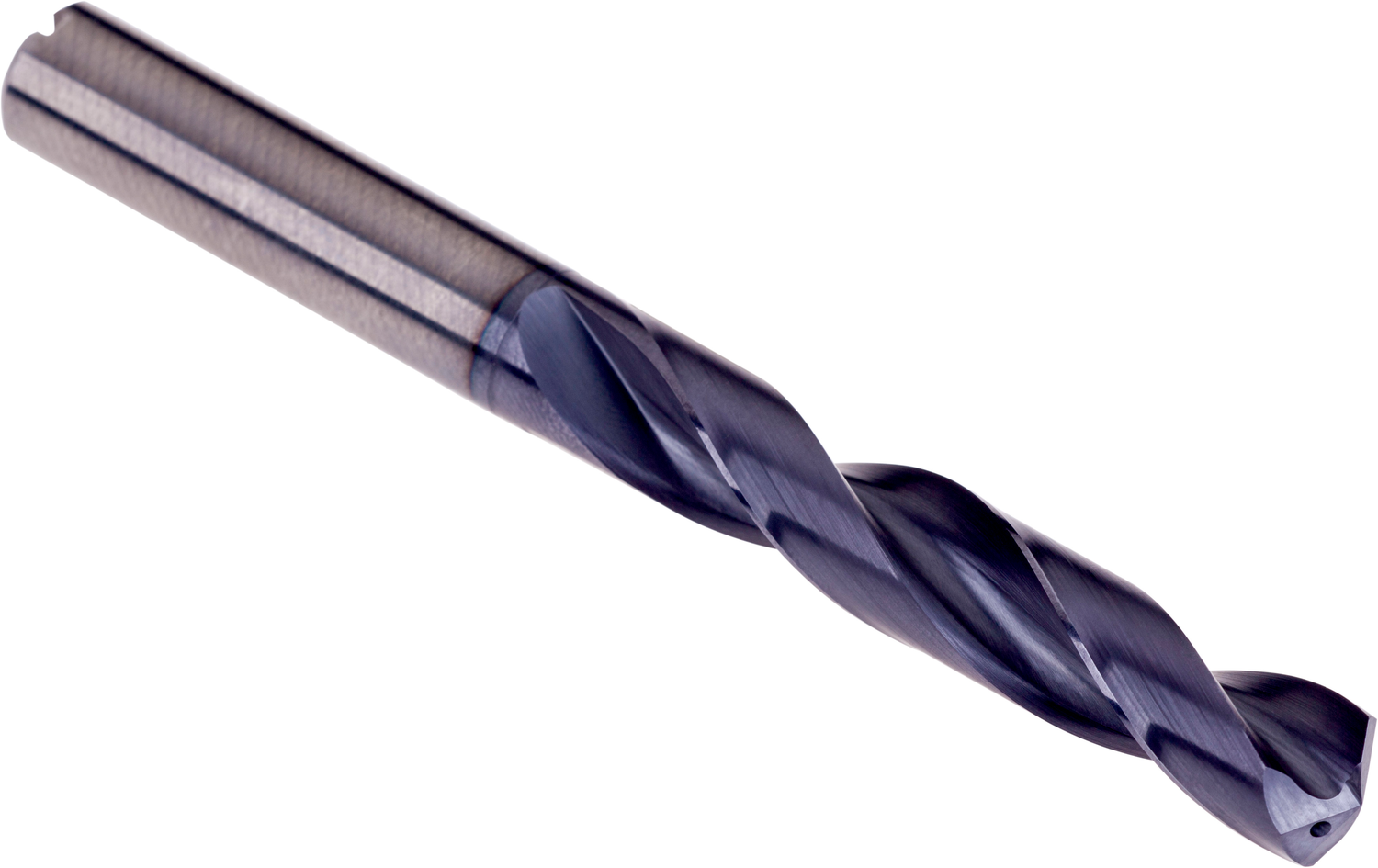

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 0.2344″ (15/64) with an overall length of 82mm and flute length of 44mm according to DIN 6537 L standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.1760 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760835029
Product number (SAP): 86034517
Ordering code ANSI: R46315/64
Product Line: FORCE M
Gross weight – grams: 29
Cutting diameter – fractional inch (DC): 15/64
Cutting diameter – millimeter (DC): 5.95 mm
Cutting diameter – inch (DC): 0.2344 inch
Length chip flute – millimeter (LCF): 44 mm
Overall length – millimeter (OAL): 82 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.7323 inch
ISO: R46315/64

Brand

DORMER
