DORMER R4633.2 Carbide Drills

Product Code: R4633.2

$175.62$159.65 Ex. GST

Product Code: R4633.2 SKU R4633.2 Categories , ,
DORMER R4633.2 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

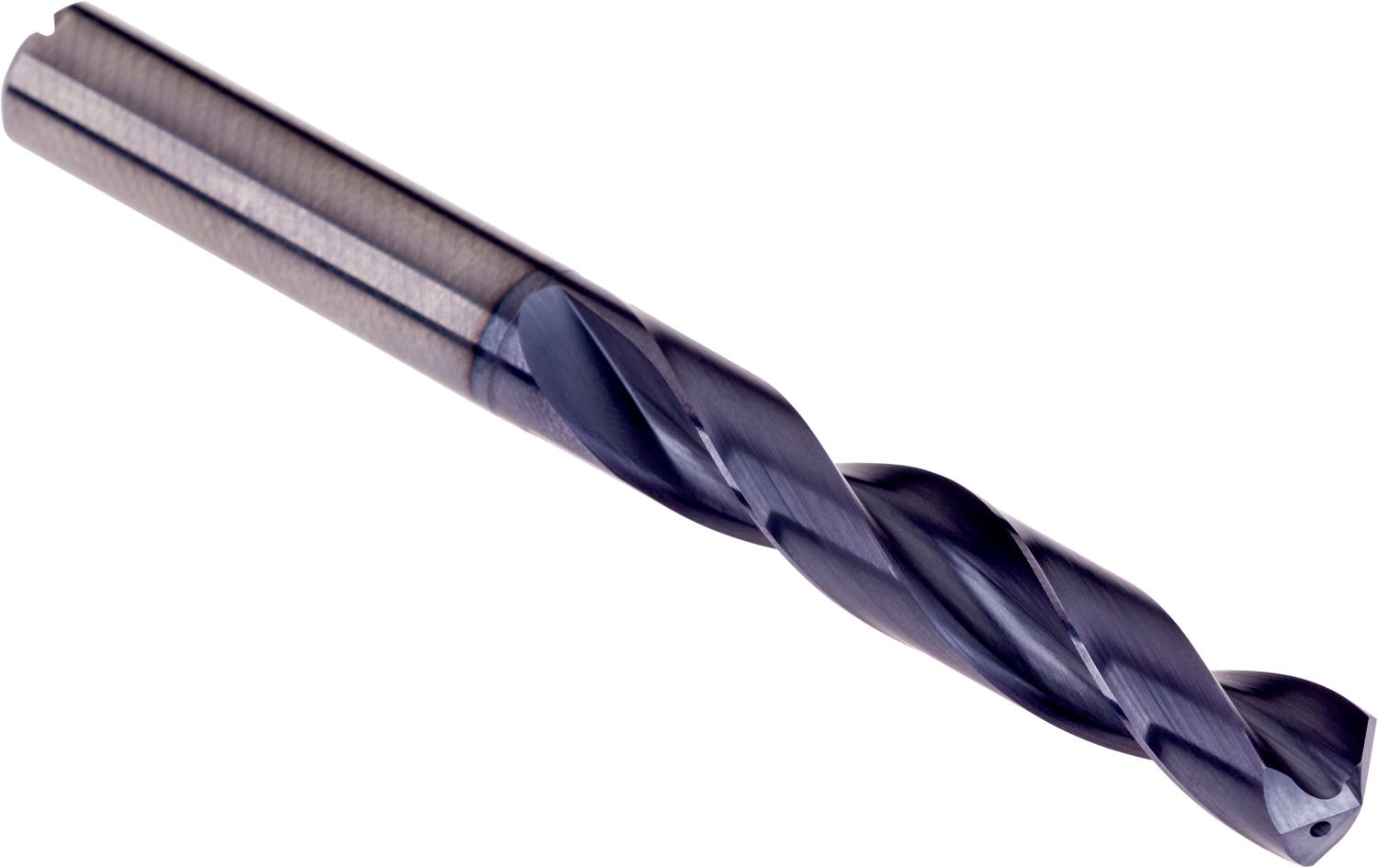

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 3.2mm with an overall length of 66mm and flute length of 28mm according to DIN 6537 L standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.1705 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760834633
Product number (SAP): 86034478
Ordering code ANSI: R4633.2
Product Line: FORCE M
Gross weight – grams: 6.04
Cutting diameter – millimeter (DC): 3.2 mm
Cutting diameter – inch (DC): 0.126 inch
Length chip flute – millimeter (LCF): 28 mm
Overall length – millimeter (OAL): 66 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.1024 inch
ISO: R4633.2

Brand

DORMER
