DORMER R4634.2 Carbide Drills

Product Code: R4634.2

$181.28$164.80 Ex. GST

Product Code: R4634.2 SKU R4634.2 Categories , ,

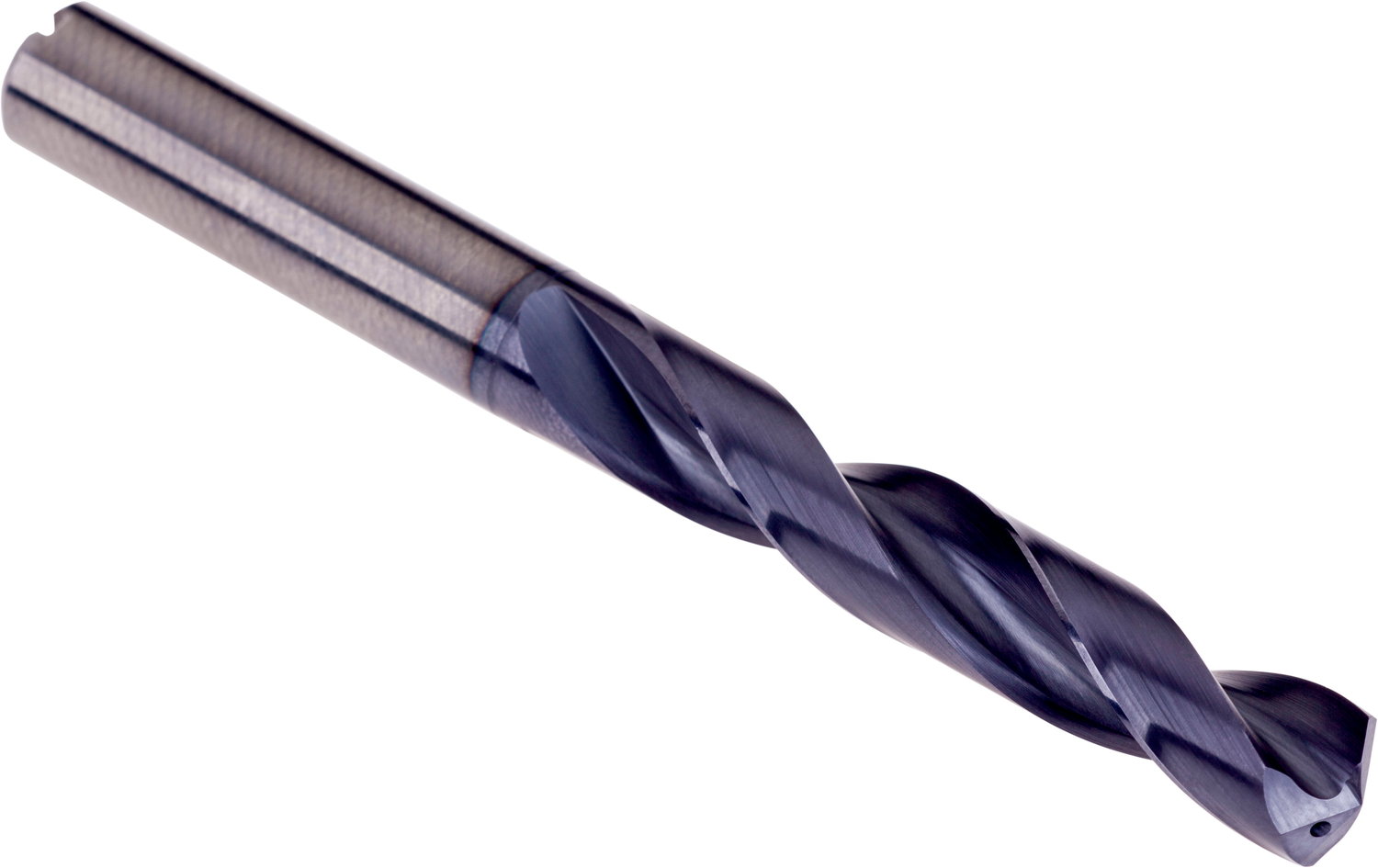

DORMER R4634.2 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 4.2mm with an overall length of 74mm and flute length of 36mm according to DIN 6537 L standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.1760 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760834770
Product number (SAP): 86034492
Ordering code ANSI: R4634.2
Product Line: FORCE M
Gross weight – grams: 21.1
Cutting diameter – millimeter (DC): 4.2 mm
Cutting diameter – inch (DC): 0.1654 inch
Length chip flute – millimeter (LCF): 36 mm
Overall length – millimeter (OAL): 74 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.4173 inch
ISO: R4634.2

Brand

DORMER
