DORMER R4637.5 Carbide Drills

Product Code: R4637.5

$208.47$189.52 Ex. GST

Product Code: R4637.5 SKU R4637.5 Categories , ,

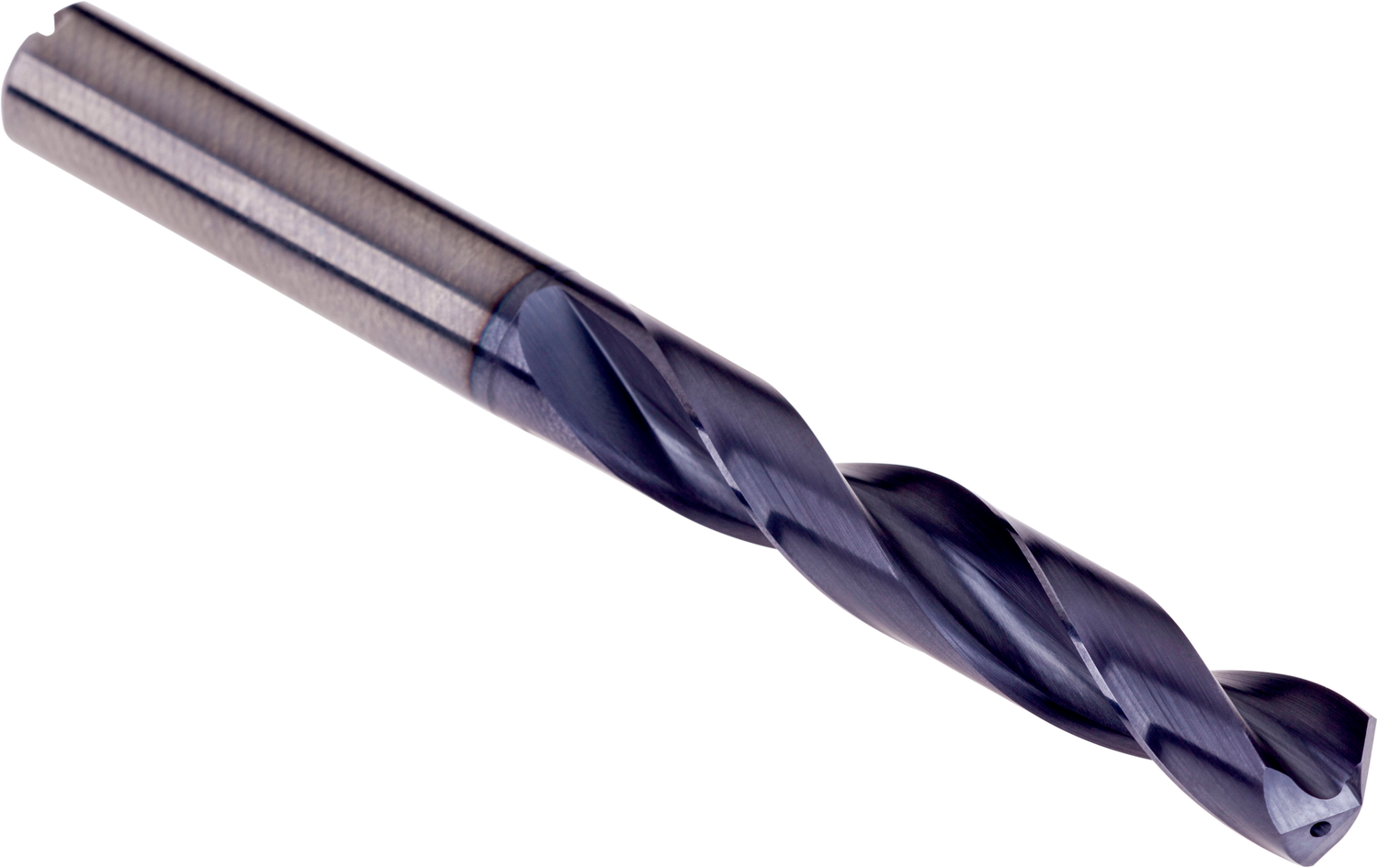

DORMER R4637.5 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 7.5mm with an overall length of 91mm and flute length of 53mm according to DIN 6537 L standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.2024 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760835227
Product number (SAP): 86034537
Ordering code ANSI: R4637.5
Product Line: FORCE M
Gross weight – grams: 47.7
Cutting diameter – millimeter (DC): 7.5 mm
Cutting diameter – inch (DC): 0.2953 inch
Length chip flute – millimeter (LCF): 53 mm
Overall length – millimeter (OAL): 91 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 2.0866 inch
ISO: R4637.5

Brand

DORMER
