DORMER R46710.1 Carbide Drills

Product Code: R46710.1

$313.84$285.31 Ex. GST

Product Code: R46710.1 SKU R46710.1 Categories , ,
DORMER R46710.1 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

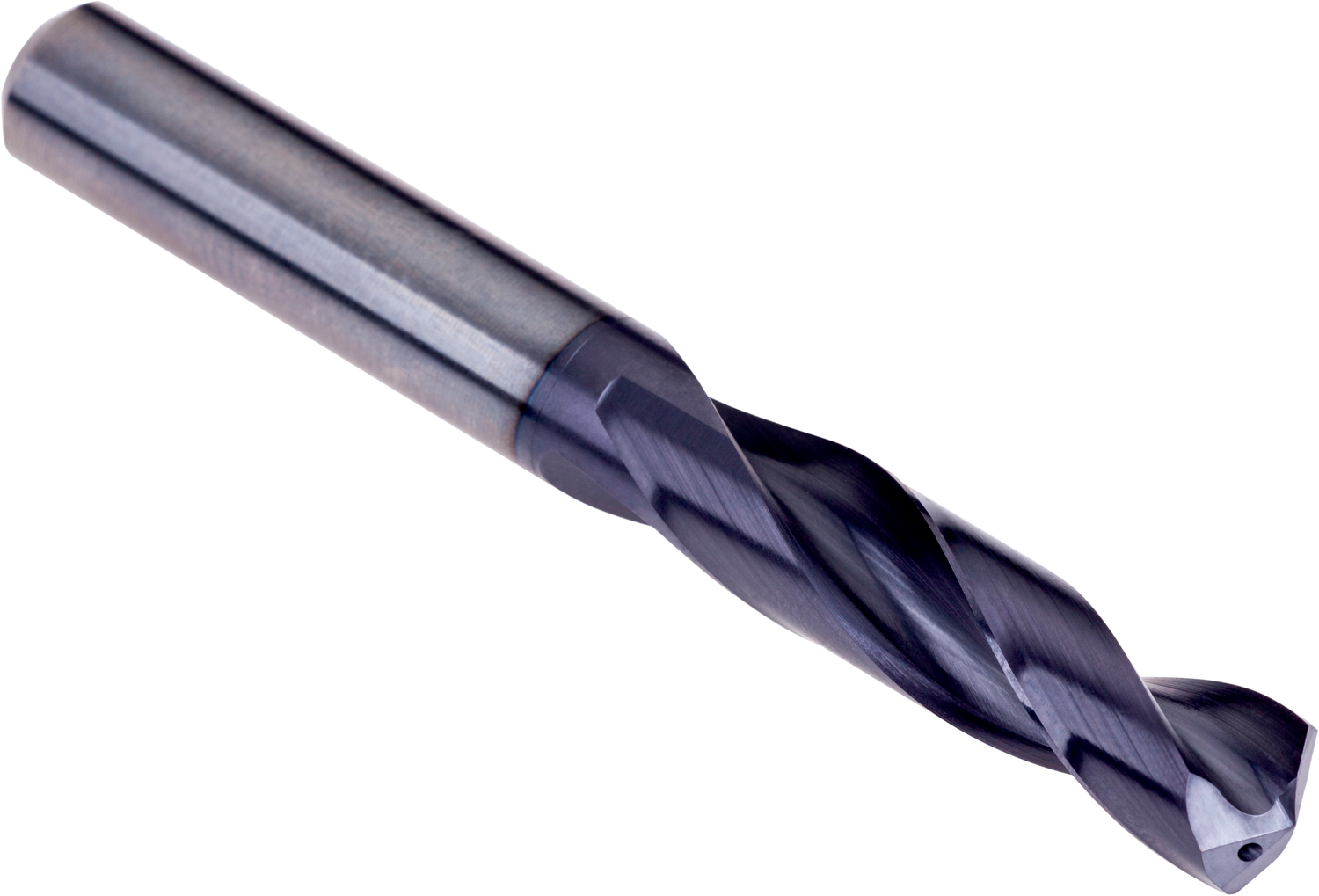

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 10.1mm with an overall length of 102mm and flute length of 55mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.3047 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760837047
Product number (SAP): 86034719
Ordering code ANSI: R46710.1
Product Line: FORCE M
Gross weight – grams: 110
Cutting diameter – millimeter (DC): 10.1 mm
Cutting diameter – inch (DC): 0.3976 inch
Length chip flute – millimeter (LCF): 55 mm
Overall length – millimeter (OAL): 102 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 2.1654 inch
ISO: R46710.1

Brand

DORMER
