DORMER R46713/64 Carbide Drills

Product Code: R46713/64

$166.55$151.41 Ex. GST

Product Code: R46713/64 SKU R46713/64 Categories , ,

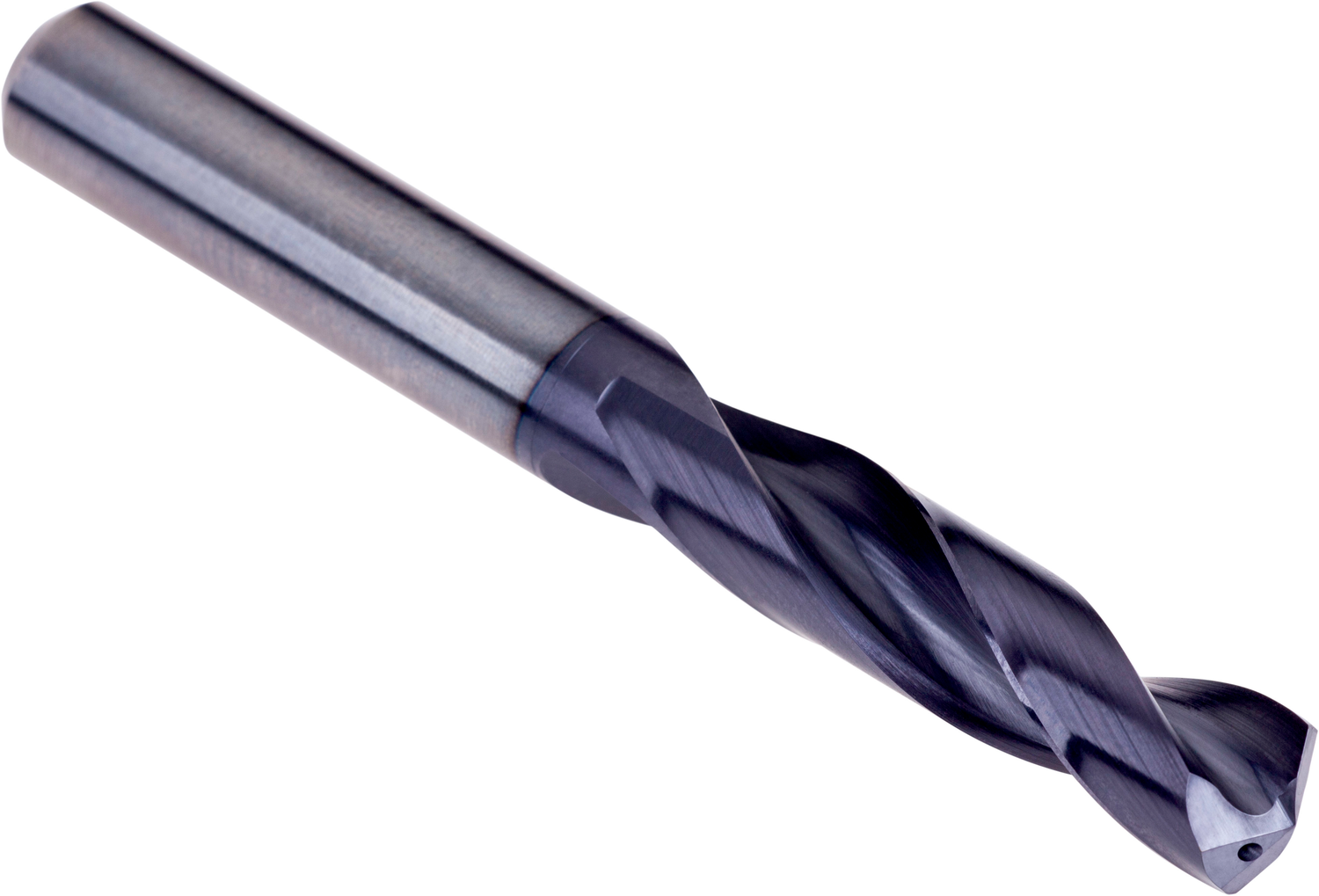

DORMER R46713/64 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 0.2031″ (13/64) with an overall length of 66mm and flute length of 28mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.1617 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760836385
Product number (SAP): 86034653
Ordering code ANSI: R46713/64
Product Line: FORCE M
Gross weight – grams: 23.6
Cutting diameter – fractional inch (DC): 13/64
Cutting diameter – millimeter (DC): 5.16 mm
Cutting diameter – inch (DC): 0.2031 inch
Length chip flute – millimeter (LCF): 28 mm
Overall length – millimeter (OAL): 66 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.1024 inch
ISO: R46713/64

Brand

DORMER
