DORMER R46723/64 Carbide Drills

Product Code: R46723/64

$216.40$196.73 Ex. GST

Product Code: R46723/64 SKU R46723/64 Categories , ,

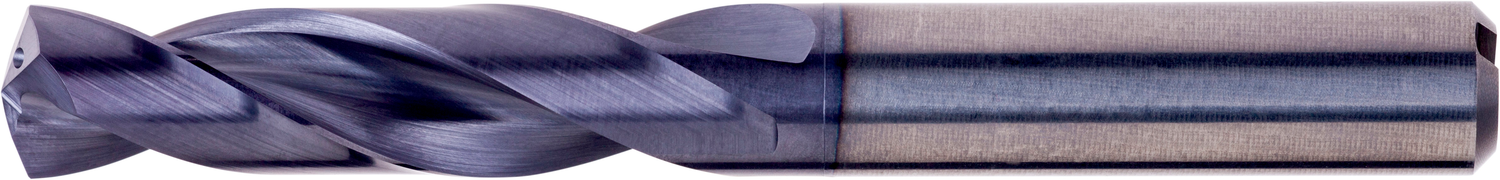

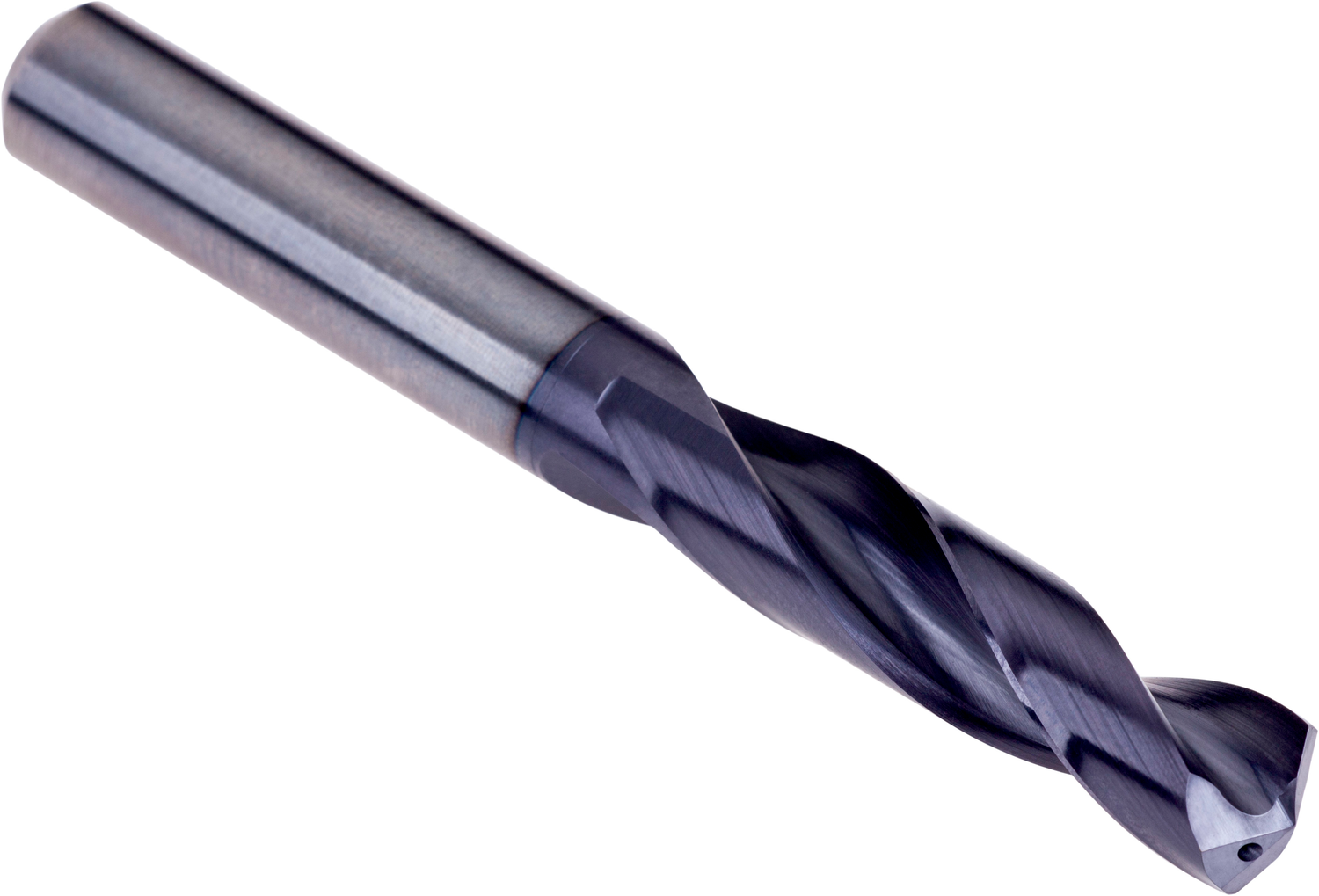

DORMER R46723/64 Carbide Drills
DORMER R46723/64 Carbide Drills - Image 2
DORMER R46723/64 Carbide Drills - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 0.3594″ (23/64) with an overall length of 89mm and flute length of 47mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.2101 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760836910
Product number (SAP): 86034706
Ordering code ANSI: R46723/64
Product Line: FORCE M
Gross weight – grams: 74.6

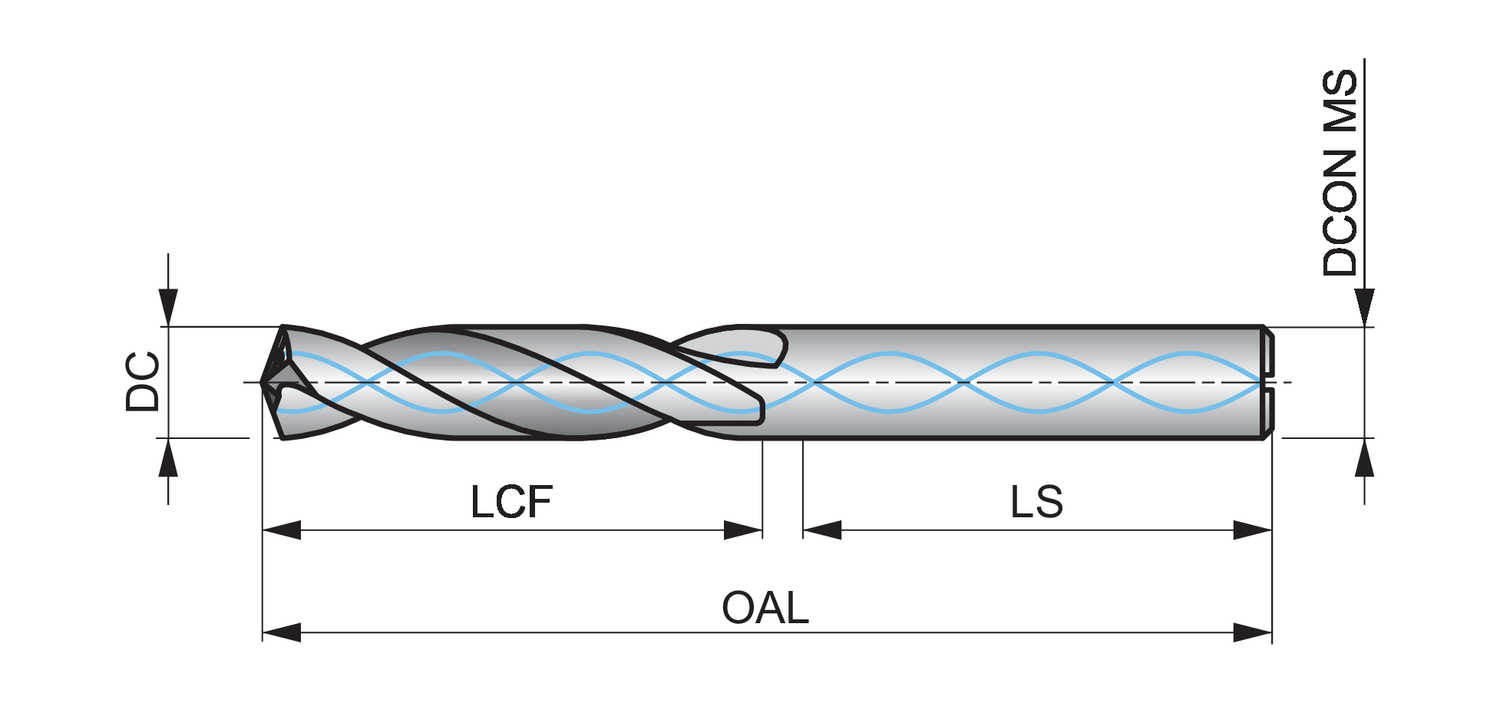

Cutting diameter – fractional inch (DC): 23/64
Cutting diameter – millimeter (DC): 9.13 mm
Cutting diameter – inch (DC): 0.3594 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 89 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: R46723/64

Brand

DORMER
