DORMER R4673.4 Carbide Drills

Product Code: R4673.4

$160.89$146.26 Ex. GST

Product Code: R4673.4 SKU R4673.4 Categories , ,
DORMER R4673.4 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

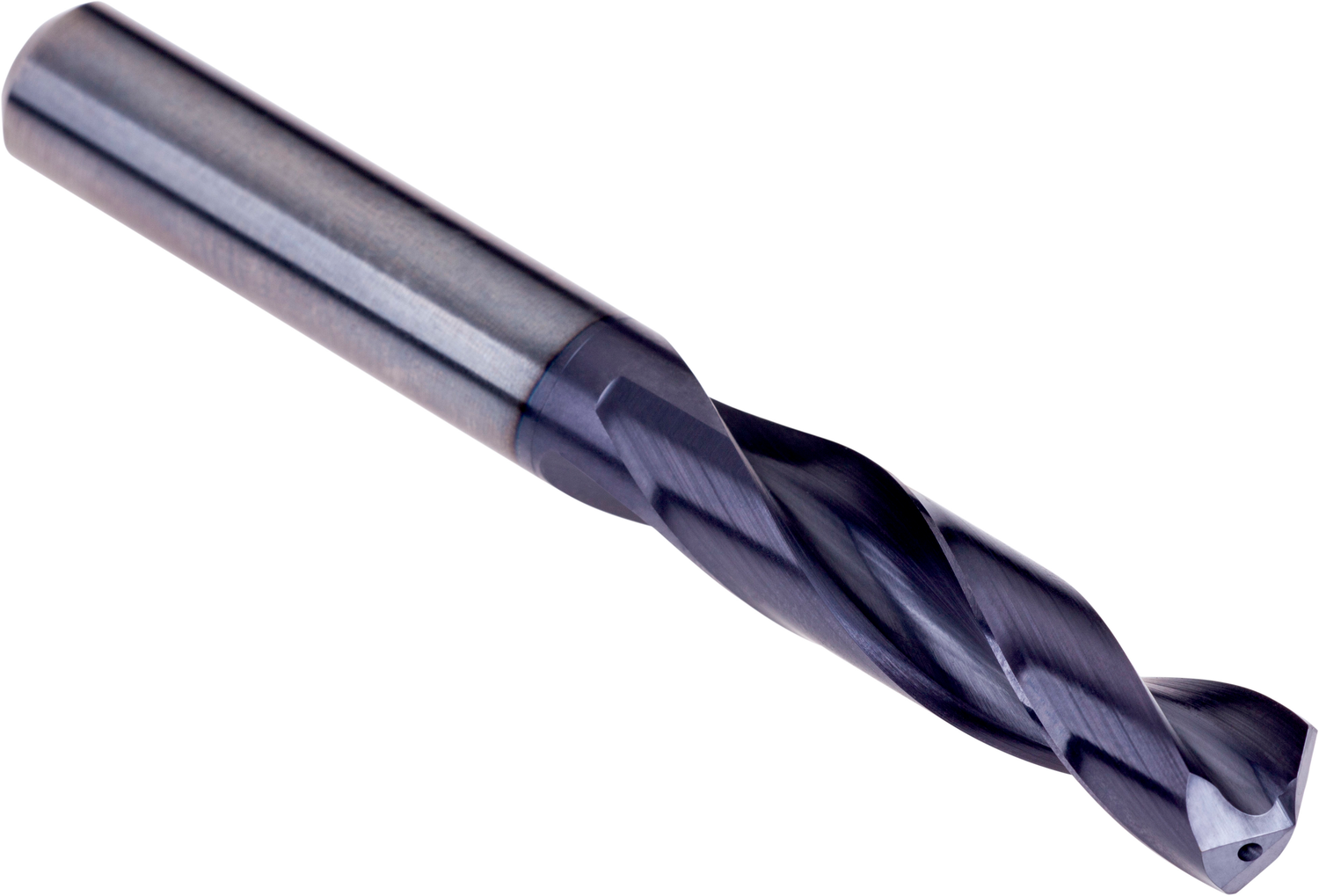

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 3.4mm with an overall length of 62mm and flute length of 20mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.1562 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760836125
Product number (SAP): 86034627
Ordering code ANSI: R4673.4
Product Line: FORCE M
Gross weight – grams: 19
Cutting diameter – millimeter (DC): 3.4 mm
Cutting diameter – inch (DC): 0.1339 inch
Length chip flute – millimeter (LCF): 20 mm
Overall length – millimeter (OAL): 62 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 0.7874 inch
ISO: R4673.4

Brand

DORMER
