DORMER R46731/64 Carbide Drills

Product Code: R46731/64

$407.88$370.80 Ex. GST

Product Code: R46731/64 SKU R46731/64 Categories , ,
DORMER R46731/64 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

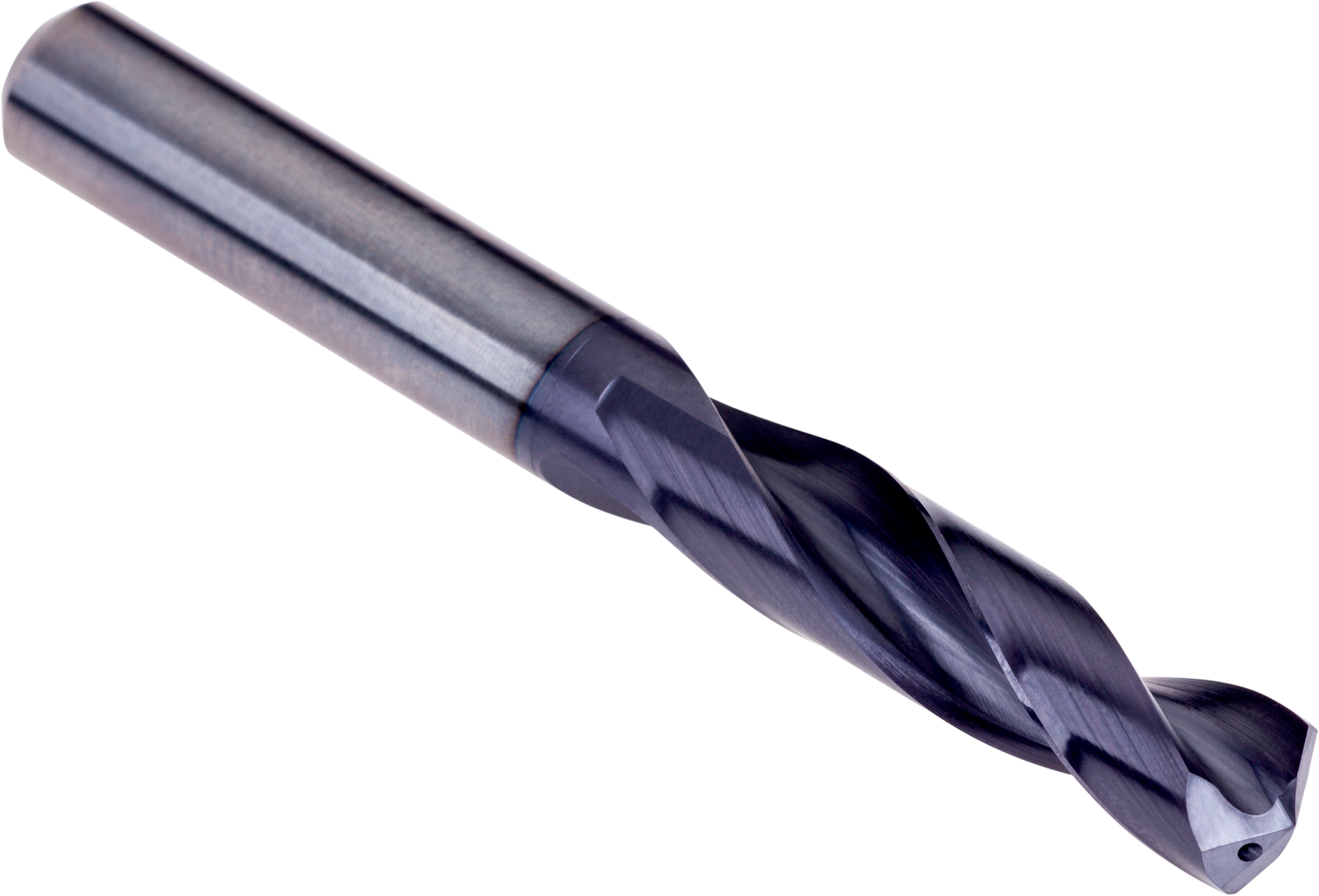

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 0.4844″ (31/64) with an overall length of 107mm and flute length of 60mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.3960 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760837283
Product number (SAP): 86034743
Ordering code ANSI: R46731/64
Product Line: FORCE M
Gross weight – grams: 162
Cutting diameter – fractional inch (DC): 31/64
Cutting diameter – millimeter (DC): 12.3 mm
Cutting diameter – inch (DC): 0.4844 inch
Length chip flute – millimeter (LCF): 60 mm
Overall length – millimeter (OAL): 107 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 14 mm
Length chip flute – inch (LCF): 2.3622 inch
ISO: R46731/64

Brand

DORMER
