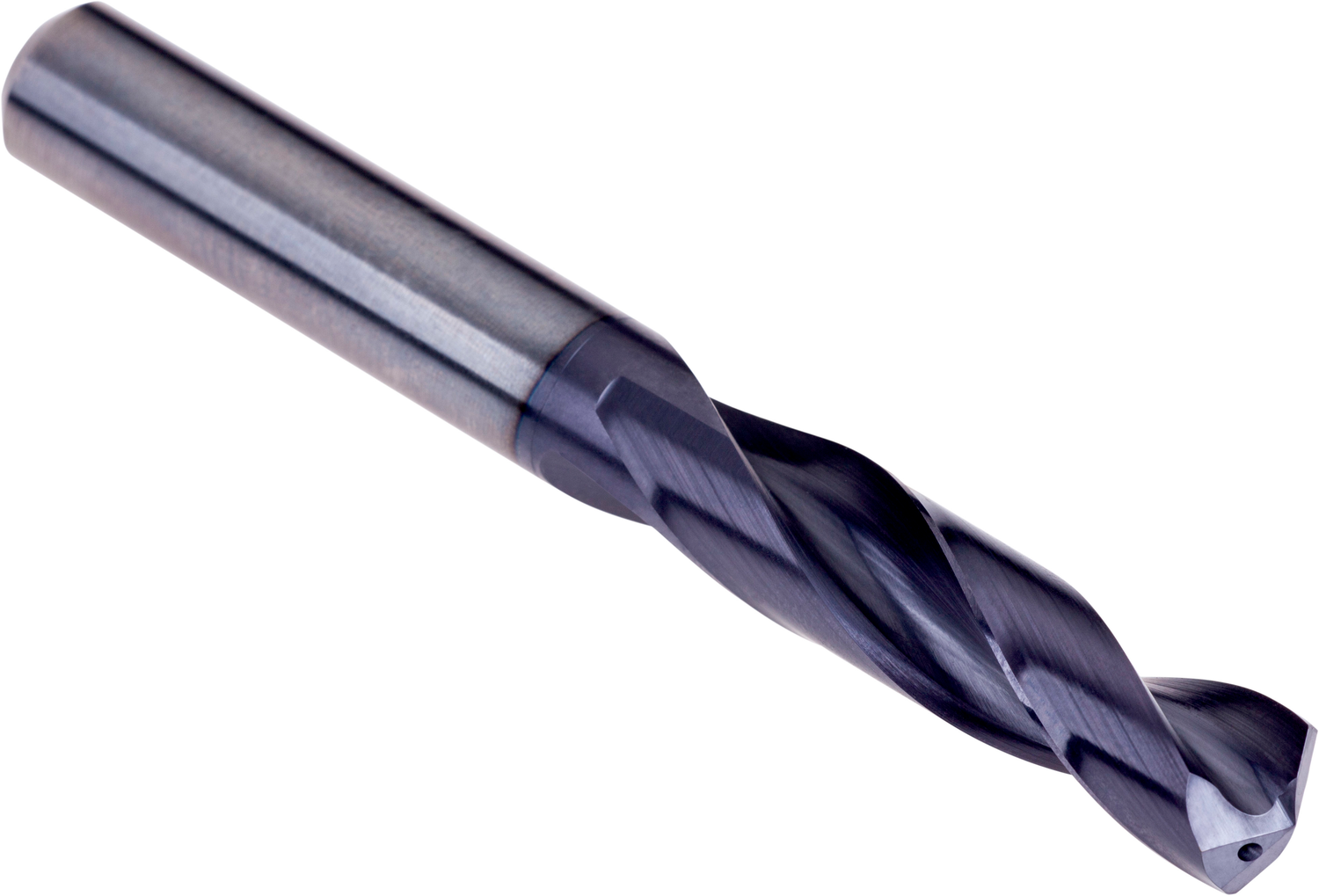

DORMER R4674.0 Carbide Drills

Product Code: R4674.0

$160.89$146.26 Ex. GST

Product Code: R4674.0 SKU R4674.0 Categories , ,
DORMER R4674.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 4mm with an overall length of 66mm and flute length of 24mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.1562 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760836217
Product number (SAP): 86034636
Ordering code ANSI: R4674.0
Product Line: FORCE M
Gross weight – grams: 20.4
Cutting diameter – millimeter (DC): 4 mm
Cutting diameter – inch (DC): 0.1575 inch
Length chip flute – millimeter (LCF): 24 mm
Overall length – millimeter (OAL): 66 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 0.9449 inch
ISO: R4674.0

Brand

DORMER
