DORMER R4677.3 Carbide Drills

Product Code: R4677.3

$191.48$174.07 Ex. GST

Product Code: R4677.3 SKU R4677.3 Categories , ,
DORMER R4677.3 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

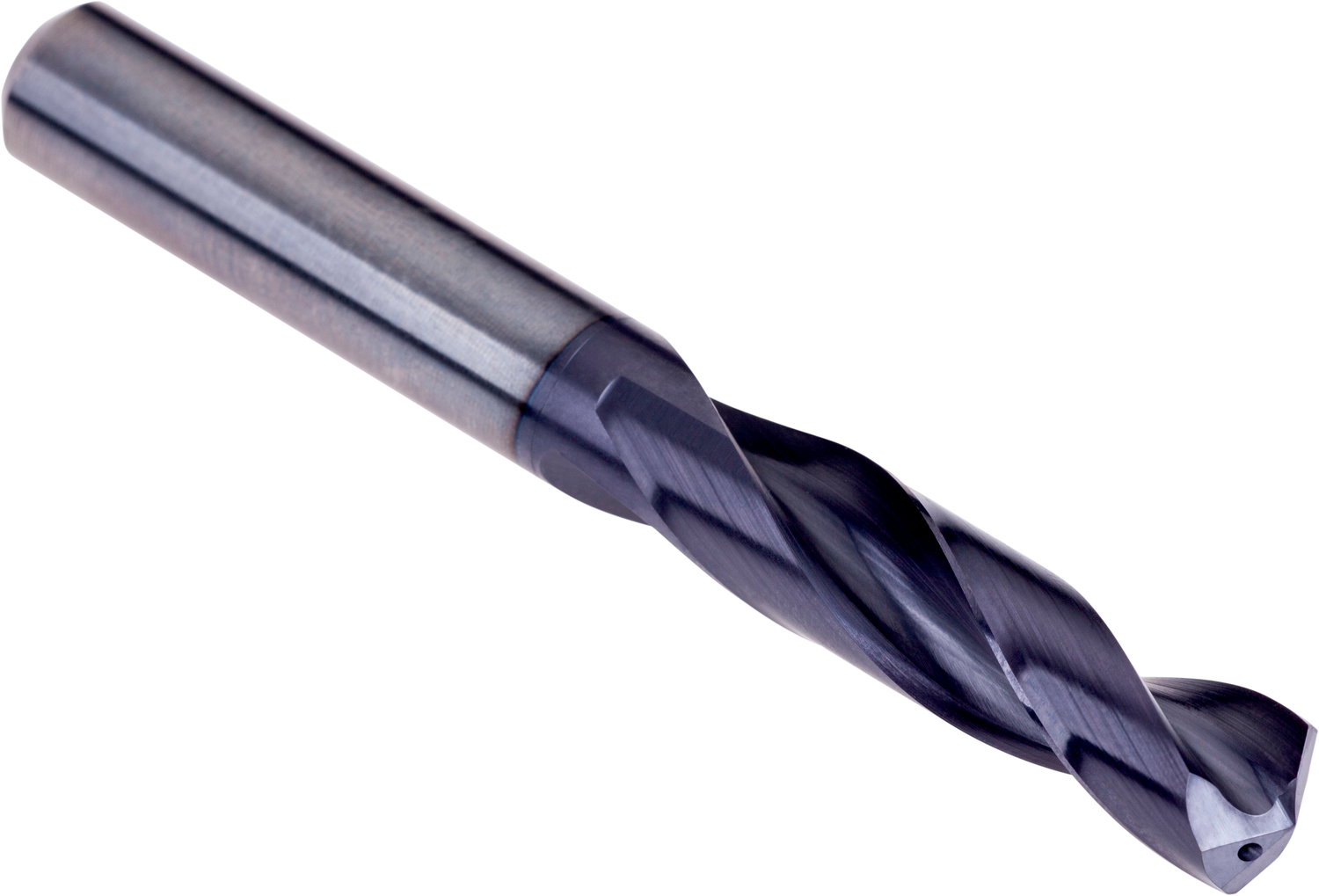

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 7.3mm with an overall length of 79mm and flute length of 41mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.1859 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760836675
Product number (SAP): 86034682
Ordering code ANSI: R4677.3
Product Line: FORCE M
Gross weight – grams: 45.4
Cutting diameter – millimeter (DC): 7.3 mm
Cutting diameter – inch (DC): 0.2874 inch
Length chip flute – millimeter (LCF): 41 mm
Overall length – millimeter (OAL): 79 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 1.6142 inch
ISO: R4677.3

Brand

DORMER
