DORMER R4678.5 Carbide Drills

Product Code: R4678.5

$216.40$196.73 Ex. GST

Product Code: R4678.5 SKU R4678.5 Categories , ,
DORMER R4678.5 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

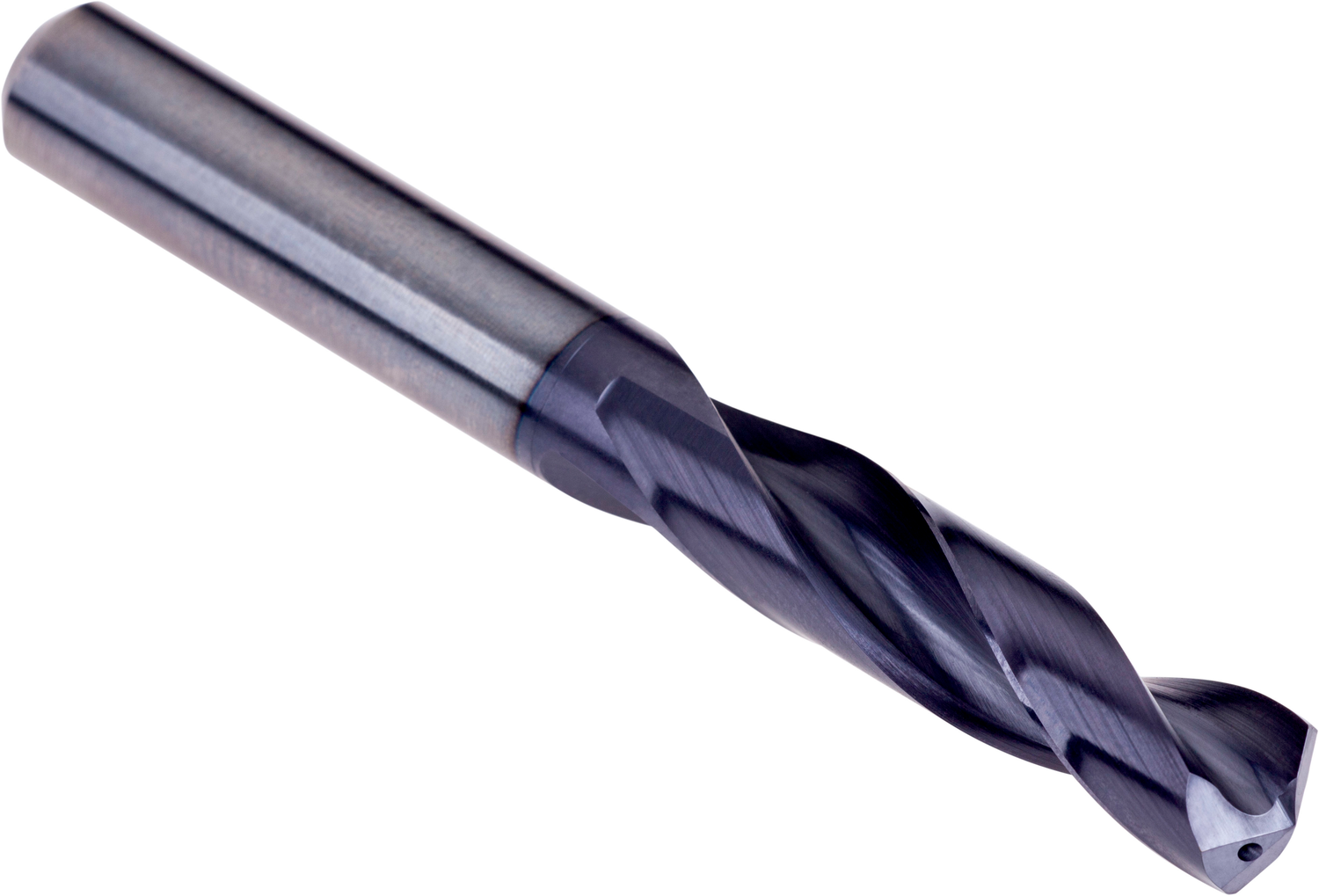

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 8.5mm with an overall length of 89mm and flute length of 47mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.2101 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760836835
Product number (SAP): 86034698
Ordering code ANSI: R4678.5
Product Line: FORCE M
Gross weight – grams: 69.2
Cutting diameter – millimeter (DC): 8.5 mm
Cutting diameter – inch (DC): 0.3346 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 89 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: R4678.5

Brand

DORMER
