DORMER R4679.1 Carbide Drills

Product Code: R4679.1

$216.40$196.73 Ex. GST

Product Code: R4679.1 SKU R4679.1 Categories , ,
DORMER R4679.1 Carbide Drills
DORMER R4679.1 Carbide Drills - Image 2
DORMER R4679.1 Carbide Drills - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 9.1mm with an overall length of 89mm and flute length of 47mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.2101 kg
Dimensions
barcode
Additional Information

Description: Value

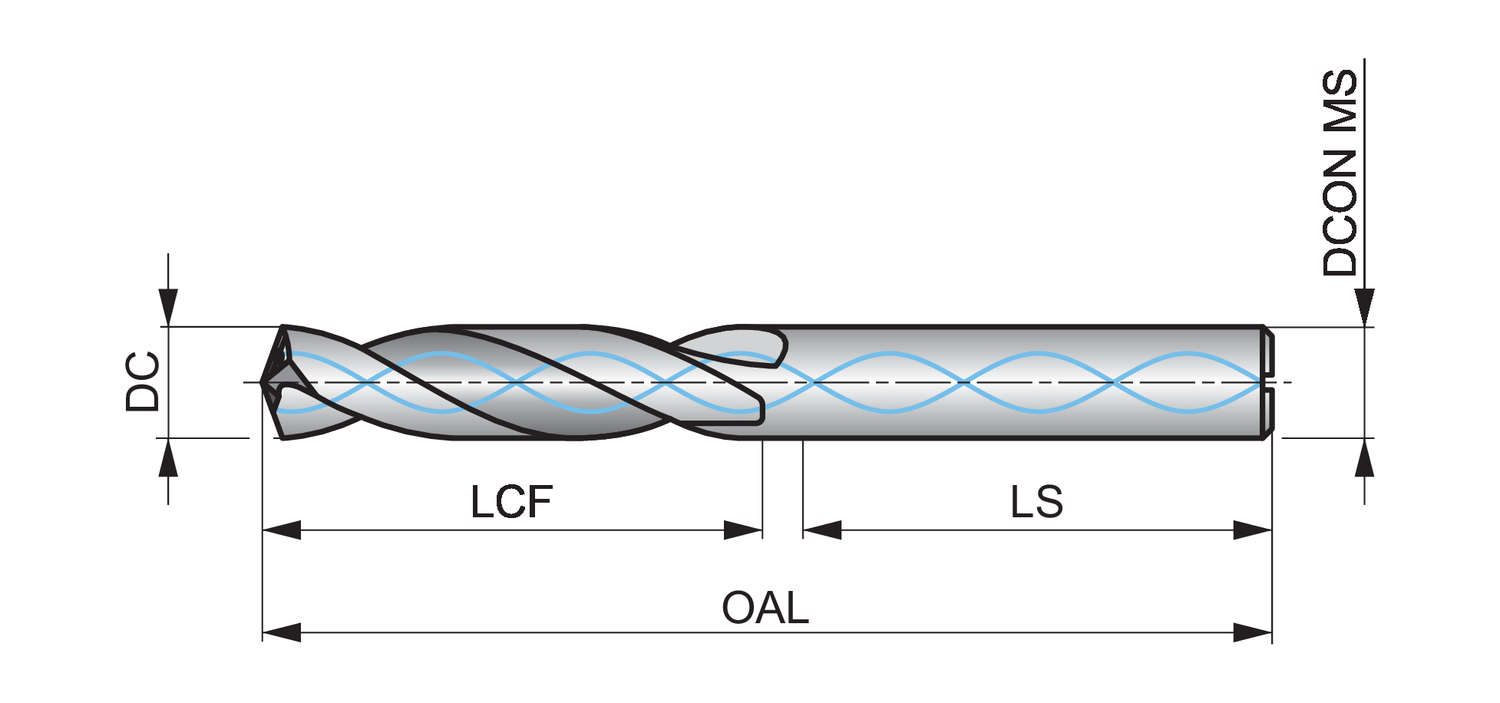

EAN number: 7320760836903 Product number (SAP): 86034705 Ordering code ANSI: R4679.1 Product Line: FORCE M Gross weight: 74.1 g Cutting diameter (DC): 9.1 mm / 0.3583 inch Length chip flute (LCF): 47 mm / 1.8504 inch Overall length (OAL): 89 mm Shank length (LS): 40 mm Connection diameter (DCON MS): 10 mm ISO: R4679.1

Brand

DORMER
