DORMER R4679/64 Carbide Drills

Product Code: R4679/64

$160.89$146.26 Ex. GST

Product Code: R4679/64 SKU R4679/64 Categories , ,
DORMER R4679/64 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

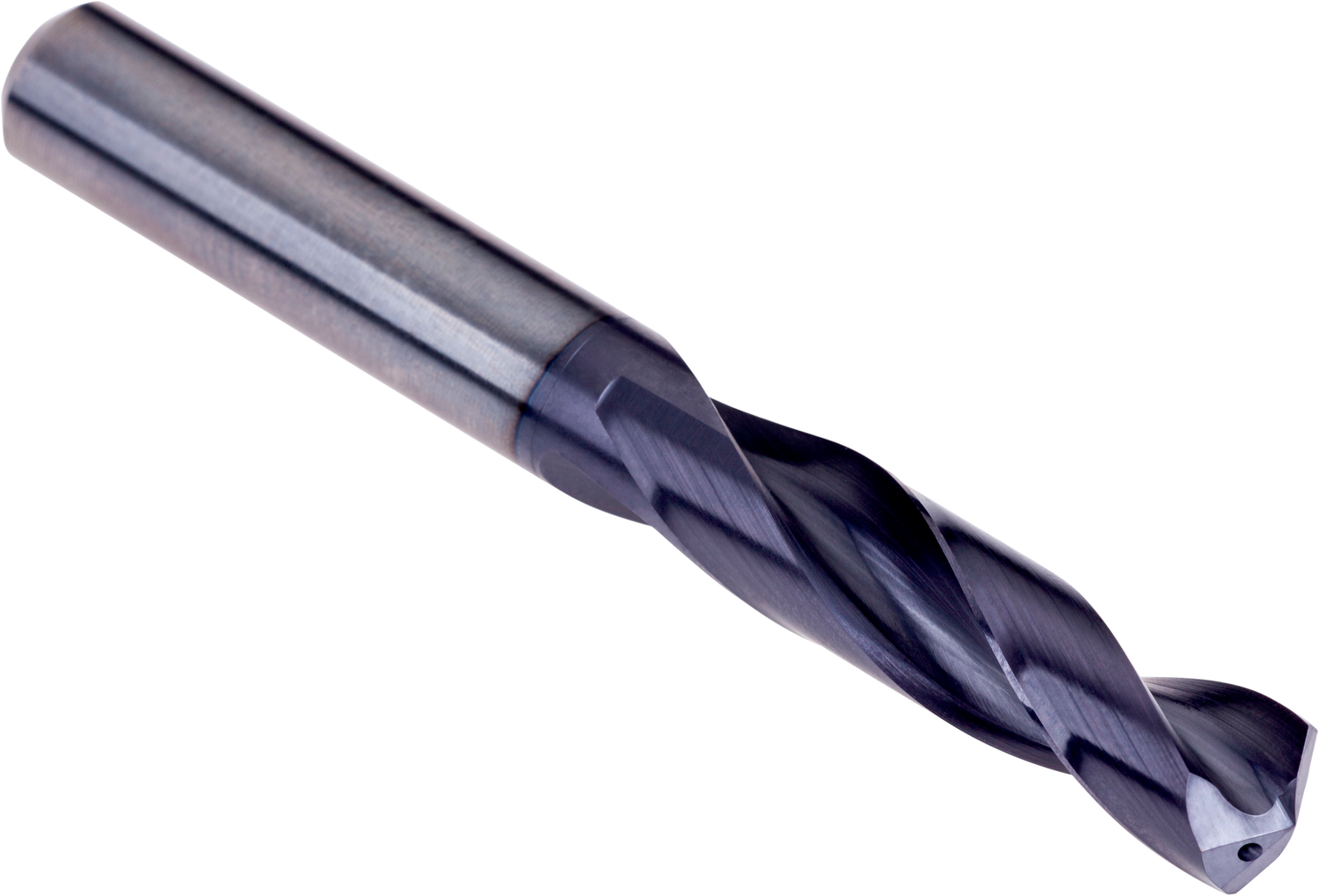

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 0.1406″ (9/64) with an overall length of 62mm and flute length of 20mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.1562 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760836156
Product number (SAP): 86034630
Ordering code ANSI: R4679/64
Product Line: FORCE M
Gross weight – grams: 19.7
Cutting diameter – fractional inch (DC): 9/64
Cutting diameter – millimeter (DC): 3.57 mm
Cutting diameter – inch (DC): 0.1406 inch
Length chip flute – millimeter (LCF): 20 mm
Overall length – millimeter (OAL): 62 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 0.7874 inch
ISO: R4679/64

Brand

DORMER
