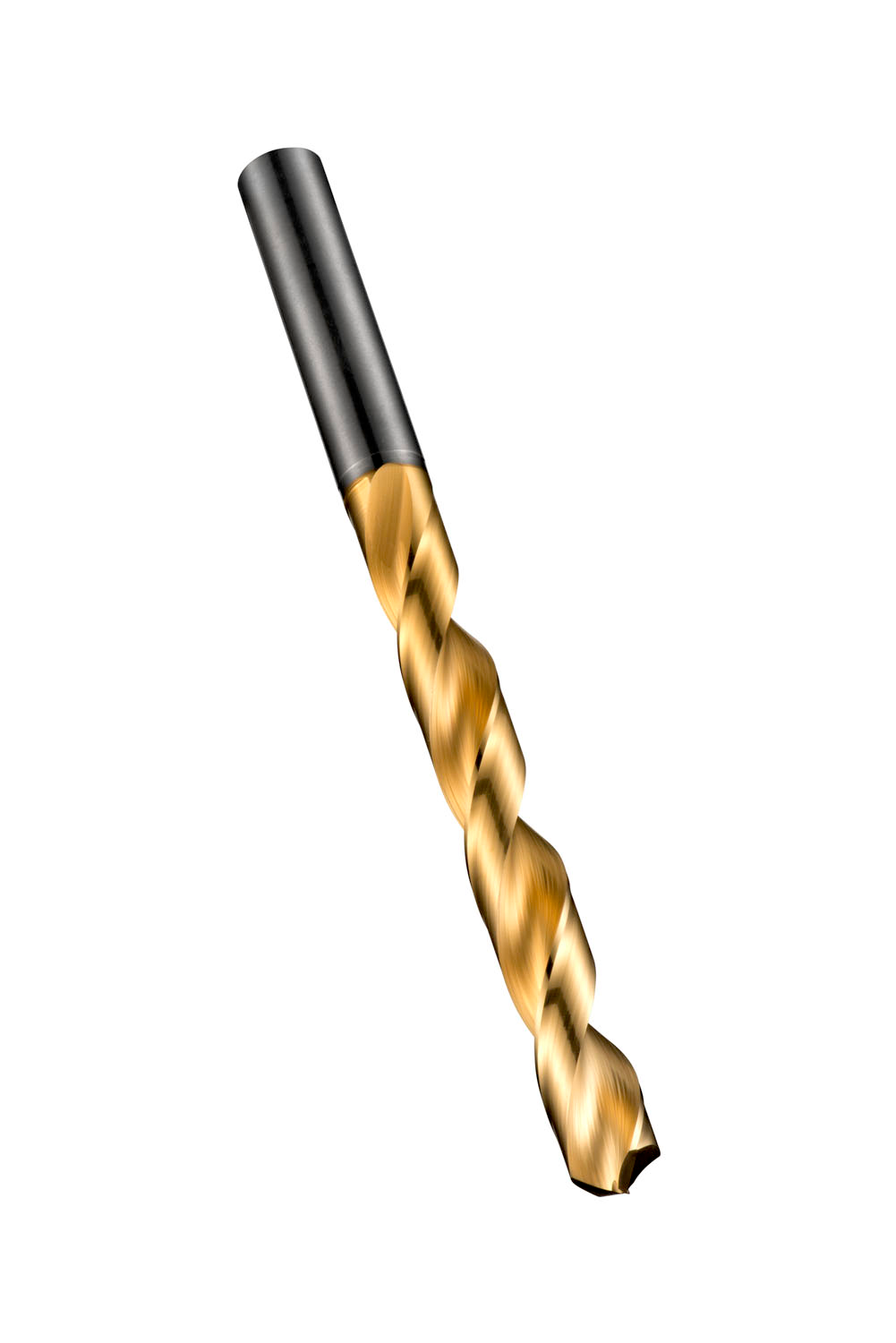

DORMER R5101/4 Carbide Drills

Product Code: R5101/4

$189.21$172.01 Ex. GST

Product Code: R5101/4 SKU R5101/4 Categories , ,
DORMER R5101/4 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance CDX drill with straight shank, diameter 0.2500″ (1/4) with an overall length of 101mm and flute length of 63mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.1837 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760381038
Product number (SAP): 86019744
Ordering code ANSI: R5101/4
Product Line: CDX
Gross weight – grams: 38.6
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Cutting diameter – inch (DC): 0.25 inch
Length chip flute – millimeter (LCF): 63 mm
Overall length – millimeter (OAL): 101 mm
Connection diameter – millimeter (DCON MS): 6.35 mm
Length chip flute – inch (LCF): 2.4803 inch
ISO: R5101/4

Brand

DORMER
