DORMER R51010.3 Carbide Drills

Product Code: R51010.3

$300.25$272.95 Ex. GST

Product Code: R51010.3 SKU R51010.3 Categories , ,

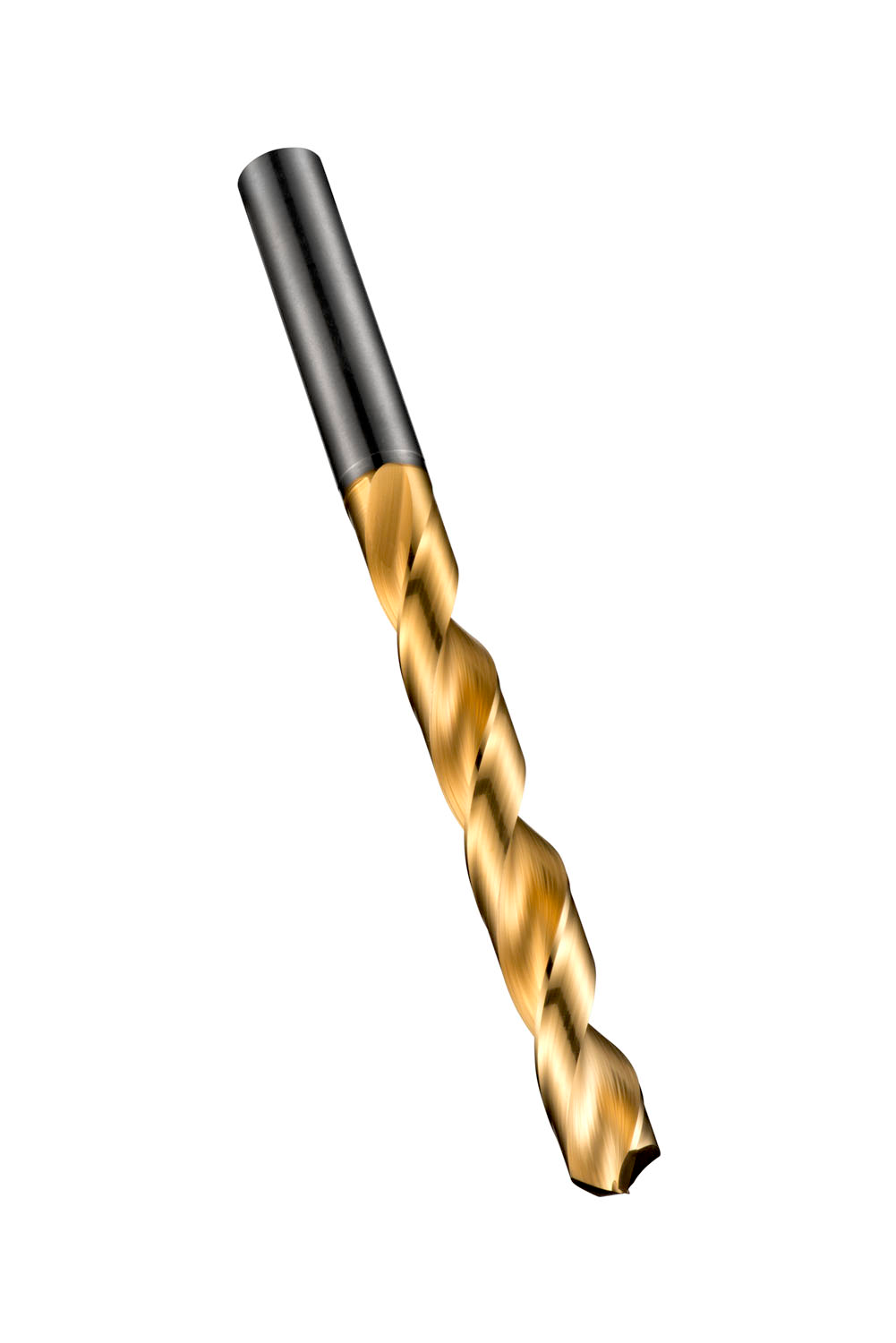

DORMER R51010.3 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance CDX drill with straight shank, diameter 10.3mm with an overall length of 133mm and flute length of 87mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.2915 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760216842
Product number (SAP): 86019748
Ordering code ANSI: R51010.3
Product Line: CDX
Gross weight – grams: 111.4
Cutting diameter – millimeter (DC): 10.3 mm
Cutting diameter – inch (DC): 0.4055 inch
Length chip flute – millimeter (LCF): 87 mm
Overall length – millimeter (OAL): 133 mm
Connection diameter – millimeter (DCON MS): 10.3 mm
Length chip flute – inch (LCF): 3.4252 inch
ISO: R51010.3

Brand

DORMER
