DORMER R5103.0 Carbide Drills

Product Code: R5103.0

$120.10$109.18 Ex. GST

Product Code: R5103.0 SKU R5103.0 Categories , ,
DORMER R5103.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

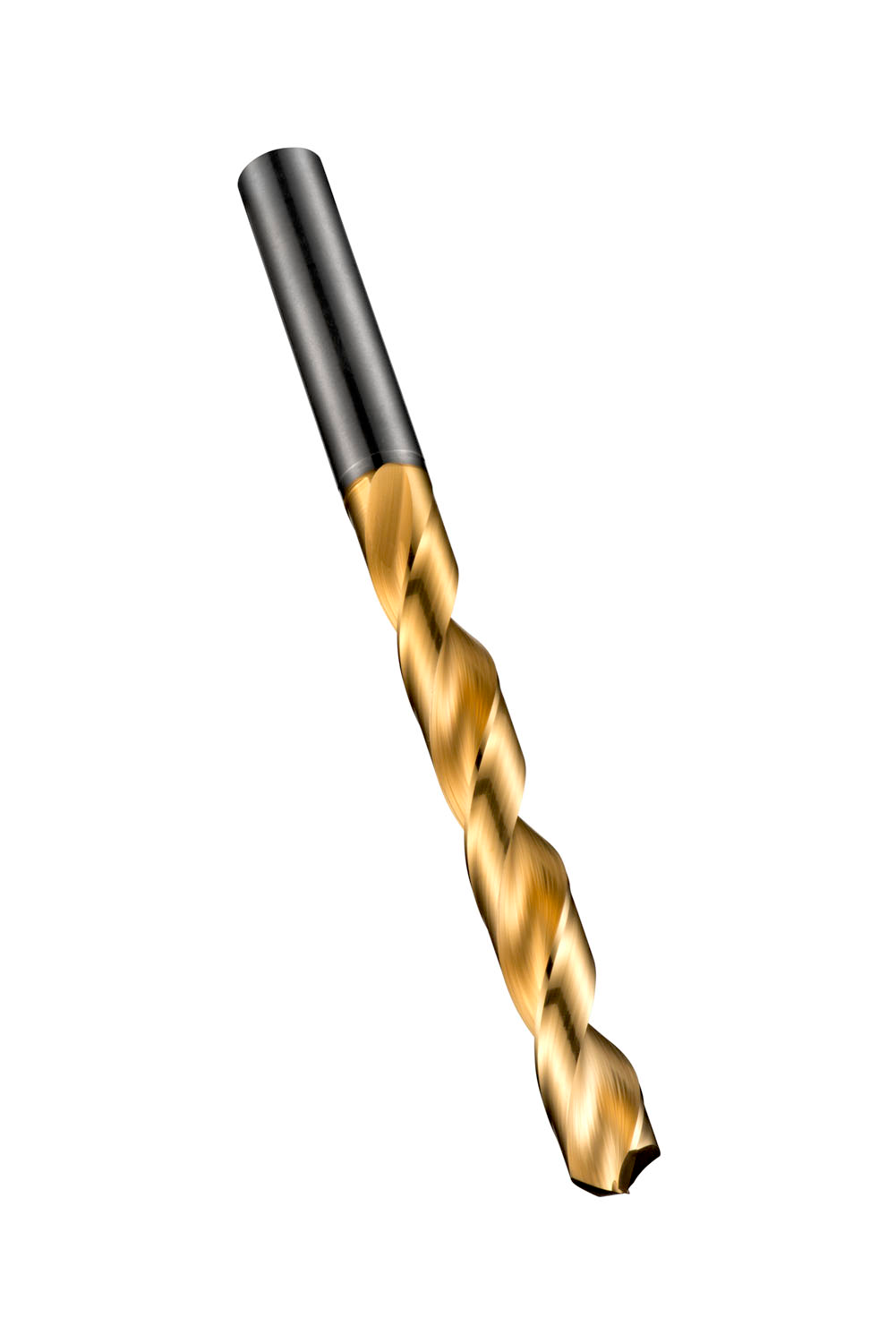

High-performance CDX drill with straight shank, diameter 3mm with an overall length of 61mm and flute length of 33mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.1166 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760115657
Product number (SAP): 86019772
Ordering code ANSI: R5103.0
Product Line: CDX
Gross weight – grams: 7.3
Cutting diameter – millimeter (DC): 3 mm
Cutting diameter – inch (DC): 0.1181 inch
Length chip flute – millimeter (LCF): 33 mm
Overall length – millimeter (OAL): 61 mm
Connection diameter – millimeter (DCON MS): 3 mm
Length chip flute – inch (LCF): 1.2992 inch
ISO: R5103.0

Brand

DORMER
