DORMER R5103/8 Carbide Drills

Product Code: R5103/8

$260.59$236.90 Ex. GST

Product Code: R5103/8 SKU R5103/8 Categories , ,
DORMER R5103/8 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

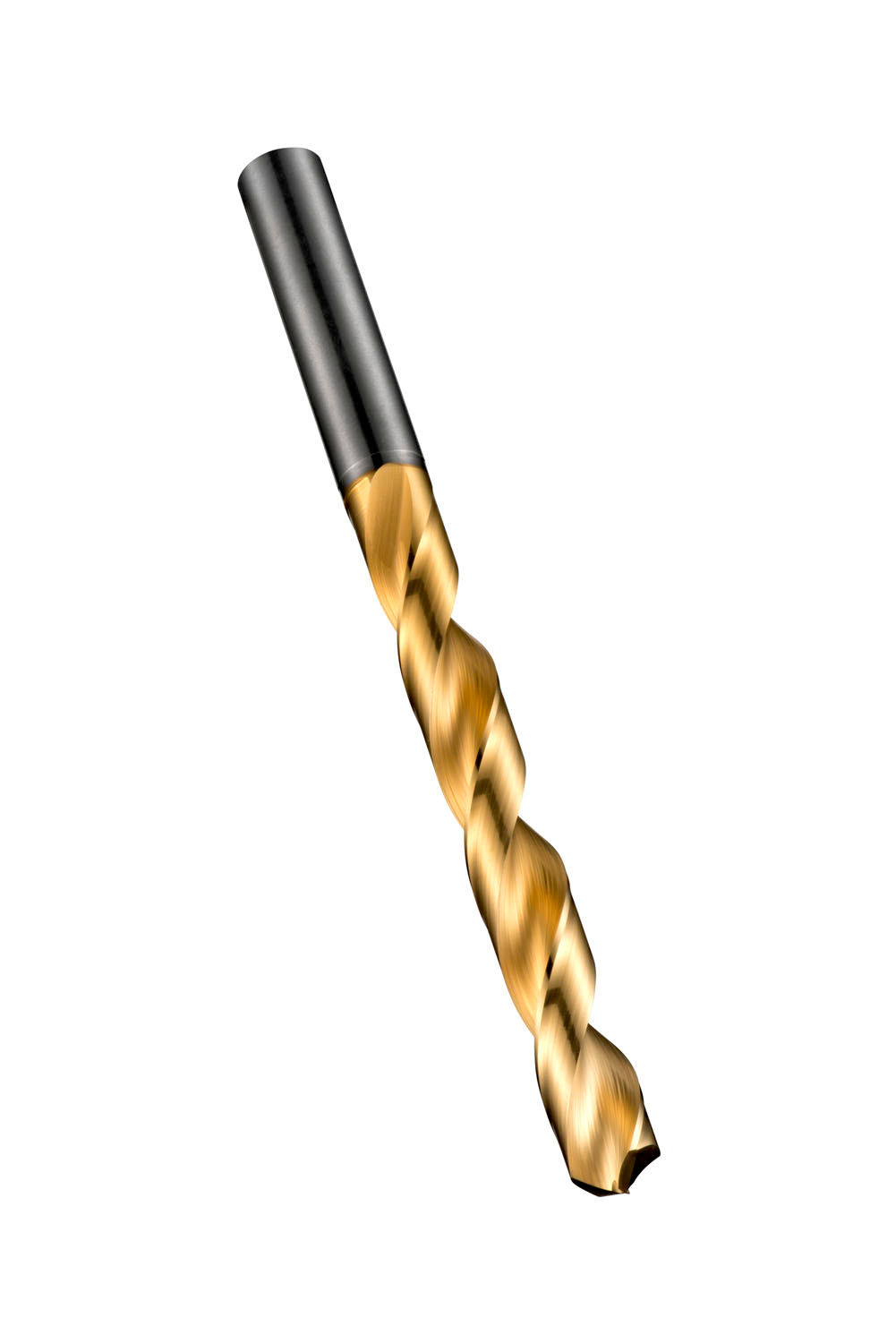

High-performance CDX drill with straight shank, diameter 0.3748″ (3/8) with an overall length of 133mm and flute length of 87mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.2530 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760381045
Product number (SAP): 86019780
Ordering code ANSI: R5103/8
Product Line: CDX
Gross weight – grams: 96
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – millimeter (DC): 9.52 mm
Cutting diameter – inch (DC): 0.3748 inch
Length chip flute – millimeter (LCF): 87 mm
Overall length – millimeter (OAL): 133 mm
Connection diameter – millimeter (DCON MS): 9.52 mm
Length chip flute – inch (LCF): 3.4252 inch
ISO: R5103/8

Brand

DORMER
