DORMER R5104.9 Carbide Drills

Product Code: R5104.9

$160.89$146.26 Ex. GST

Product Code: R5104.9 SKU R5104.9 Categories , ,
DORMER R5104.9 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

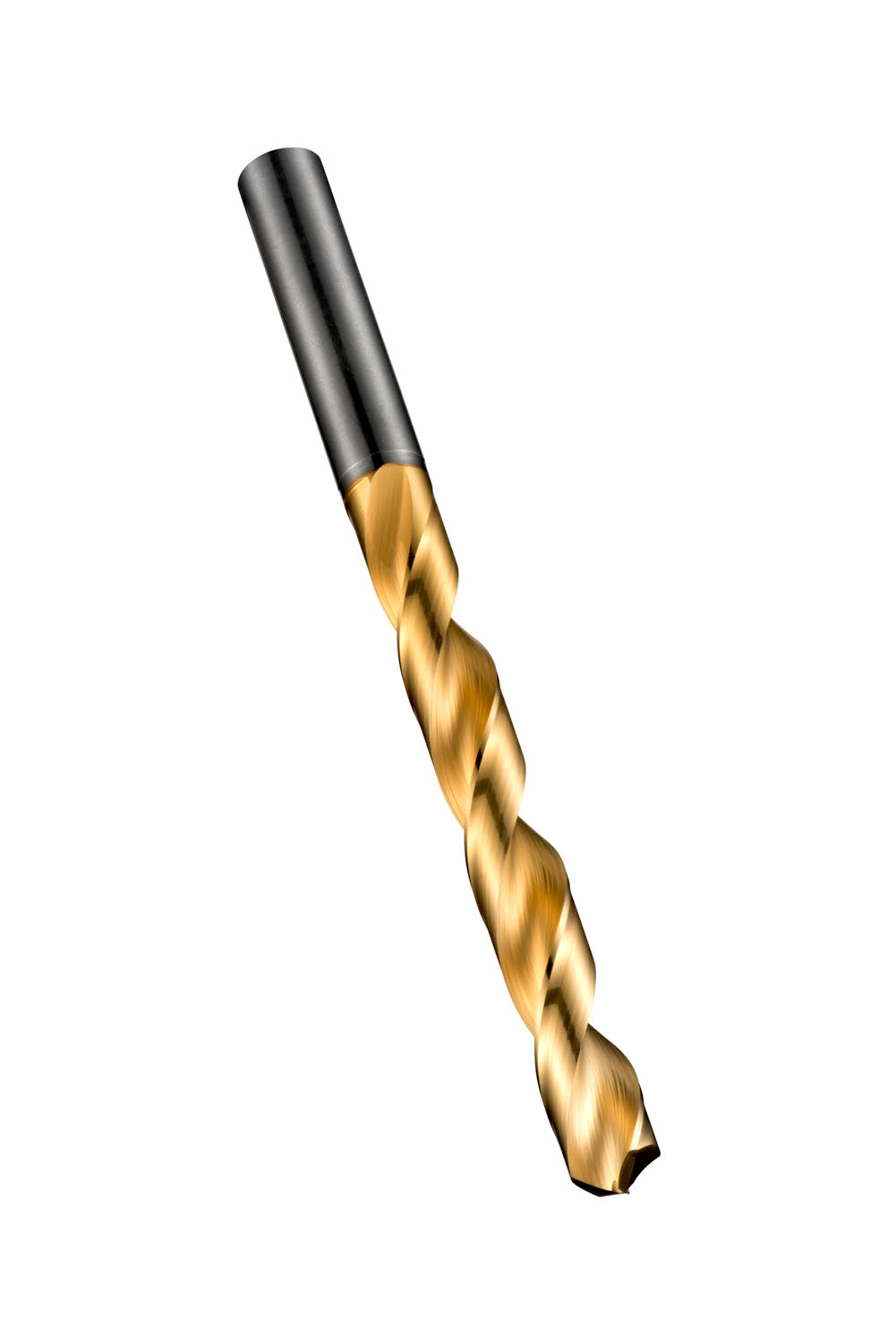

High-performance CDX drill with straight shank, diameter 4.9mm with an overall length of 86mm and flute length of 52mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.1562 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760115749
Product number (SAP): 86019789
Ordering code ANSI: R5104.9
Product Line: CDX
Gross weight – grams: 23.7
Cutting diameter – millimeter (DC): 4.9 mm
Cutting diameter – inch (DC): 0.1929 inch
Length chip flute – millimeter (LCF): 52 mm
Overall length – millimeter (OAL): 86 mm
Connection diameter – millimeter (DCON MS): 4.9 mm
Length chip flute – inch (LCF): 2.0472 inch
ISO: R5104.9

Brand

DORMER
