DORMER R5105/16 Carbide Drills

Product Code: R5105/16

$207.34$188.49 Ex. GST

Product Code: R5105/16 SKU R5105/16 Categories , ,

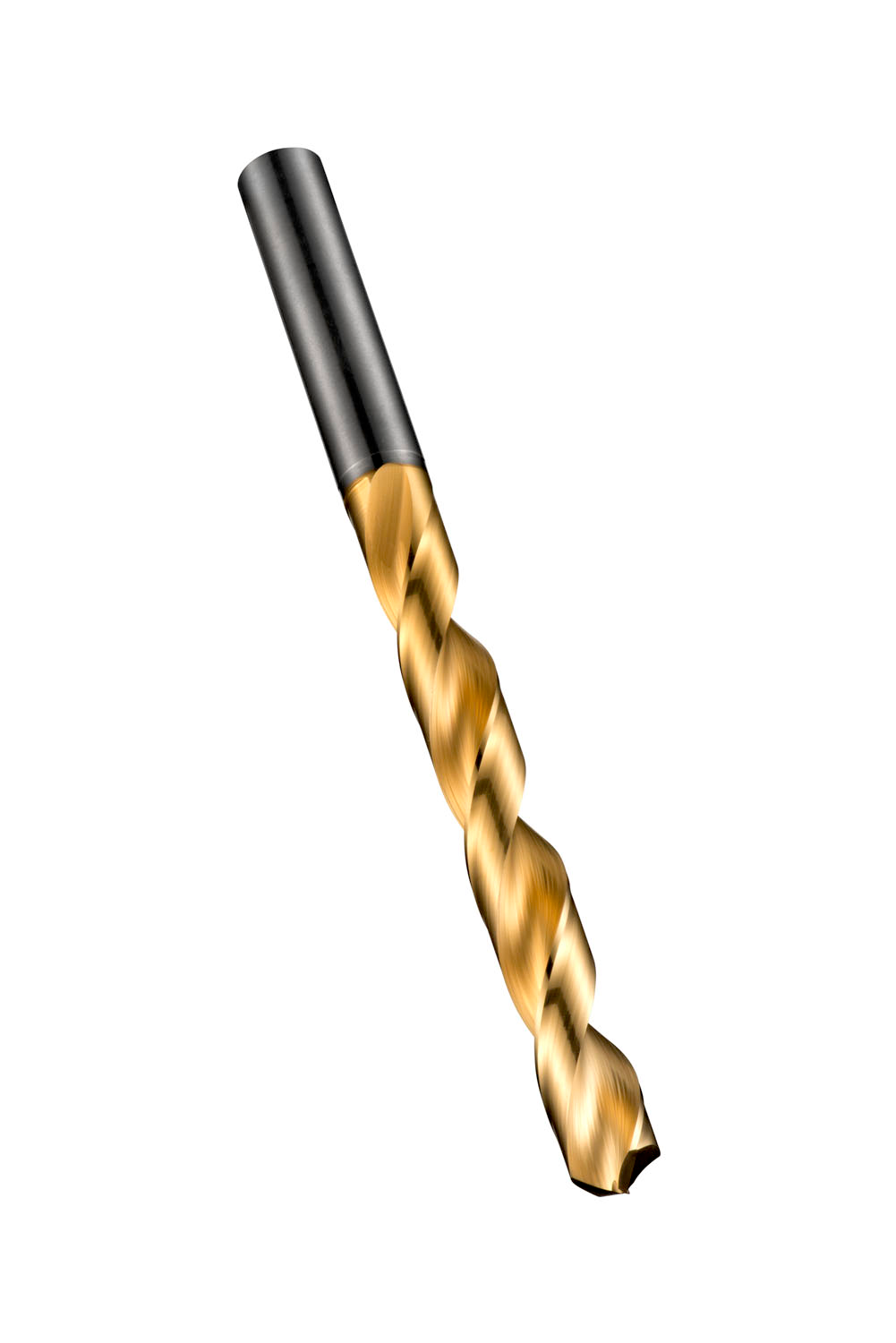

DORMER R5105/16 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance CDX drill with straight shank, diameter 0.3126″ (5/16) with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.2013 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760380963
Product number (SAP): 86019795
Ordering code ANSI: R5105/16
Product Line: CDX
Gross weight – grams: 67
Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – millimeter (DC): 7.94 mm
Cutting diameter – inch (DC): 0.3126 inch
Length chip flute – millimeter (LCF): 75 mm
Overall length – millimeter (OAL): 117 mm
Connection diameter – millimeter (DCON MS): 7.94 mm
Length chip flute – inch (LCF): 2.9528 inch
ISO: R5105/16

Brand

DORMER
