DORMER R5106.0 Carbide Drills

Product Code: R5106.0

$183.55$166.86 Ex. GST

Product Code: R5106.0 SKU R5106.0 Categories , ,

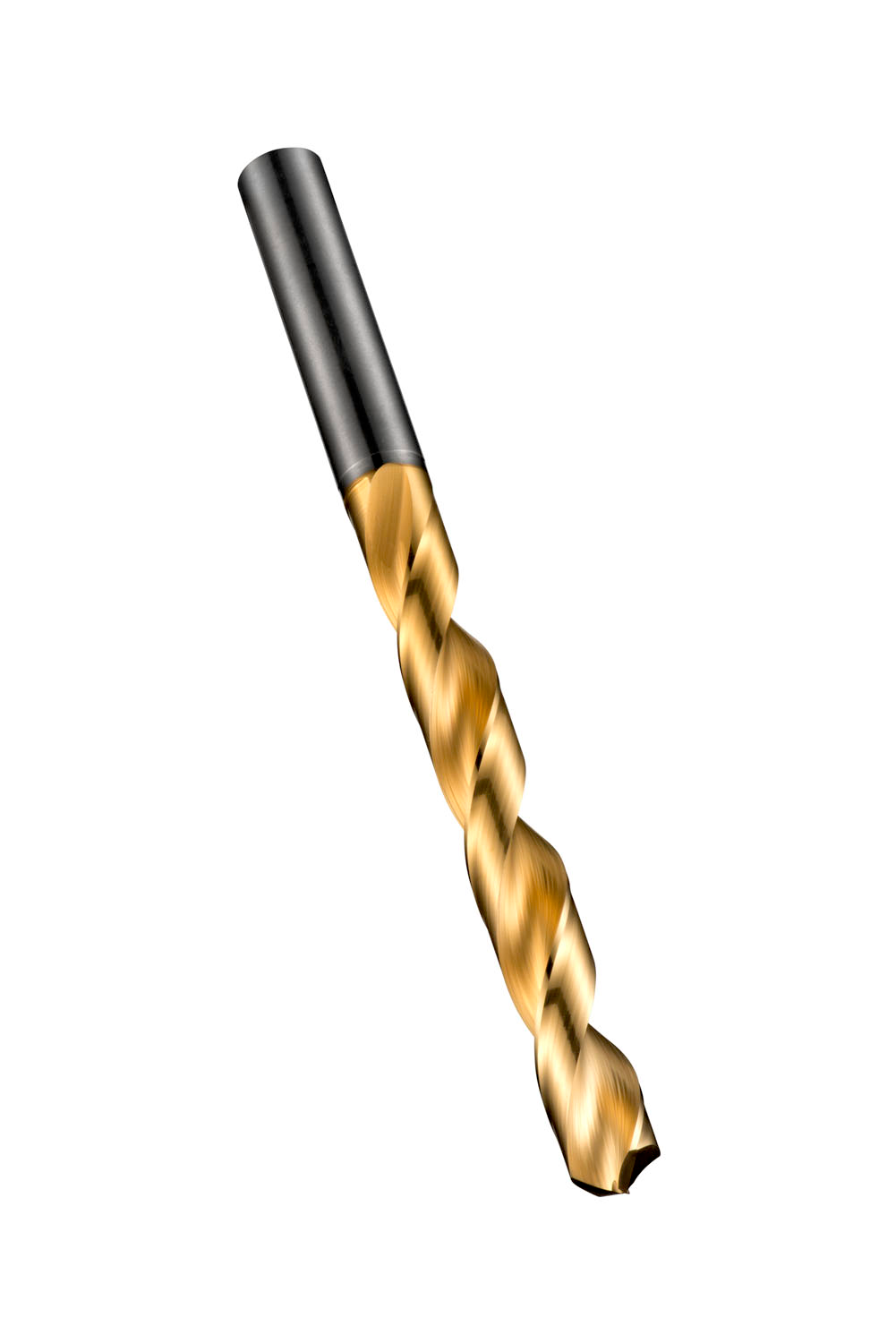

DORMER R5106.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance CDX drill with straight shank, diameter 6mm with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.1782 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760115787
Product number (SAP): 86019797
Ordering code ANSI: R5106.0
Product Line: CDX
Gross weight – grams: 33.2
Cutting diameter – millimeter (DC): 6 mm
Cutting diameter – inch (DC): 0.2362 inch
Length chip flute – millimeter (LCF): 57 mm
Overall length – millimeter (OAL): 93 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 2.2441 inch
ISO: R5106.0

Brand

DORMER
