DORMER R5107/16 Carbide Drills

Product Code: R5107/16

$347.83$316.21 Ex. GST

Product Code: R5107/16 SKU R5107/16 Categories , ,
DORMER R5107/16 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

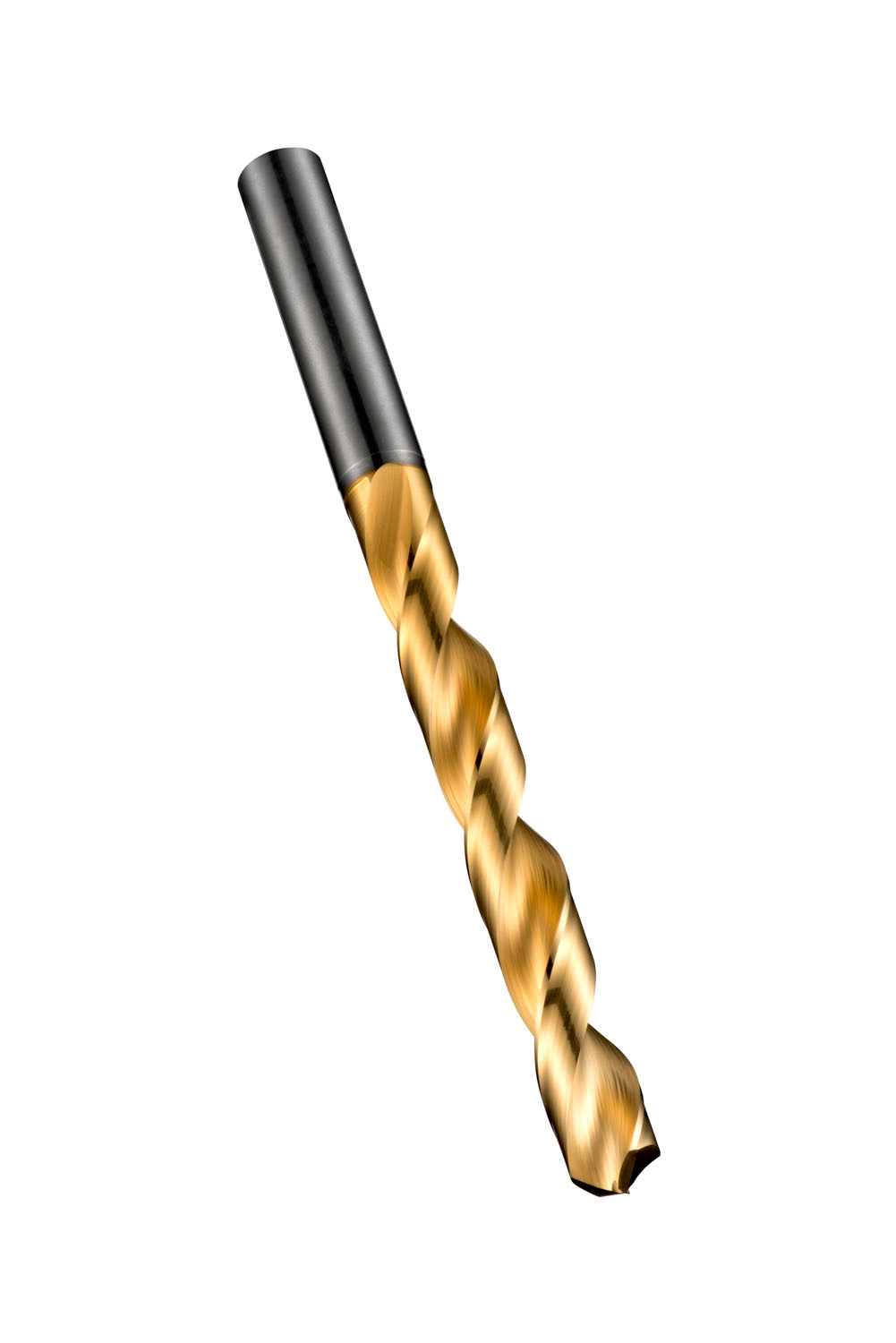

High-performance CDX drill with straight shank, diameter 0.4374″ (7/16) with an overall length of 142mm and flute length of 94mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.3377 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760380987
Product number (SAP): 86019808
Ordering code ANSI: R5107/16
Product Line: CDX
Gross weight – grams: 141
Cutting diameter – fractional inch (DC): 7/16
Cutting diameter – millimeter (DC): 11.11 mm
Cutting diameter – inch (DC): 0.4374 inch
Length chip flute – millimeter (LCF): 94 mm
Overall length – millimeter (OAL): 142 mm
Connection diameter – millimeter (DCON MS): 11.11 mm
Length chip flute – inch (LCF): 3.7008 inch
ISO: R5107/16

Brand

DORMER
