DORMER R5109.0 Carbide Drills

Product Code: R5109.0

$249.26$226.60 Ex. GST

Product Code: R5109.0 SKU R5109.0 Categories , ,
DORMER R5109.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

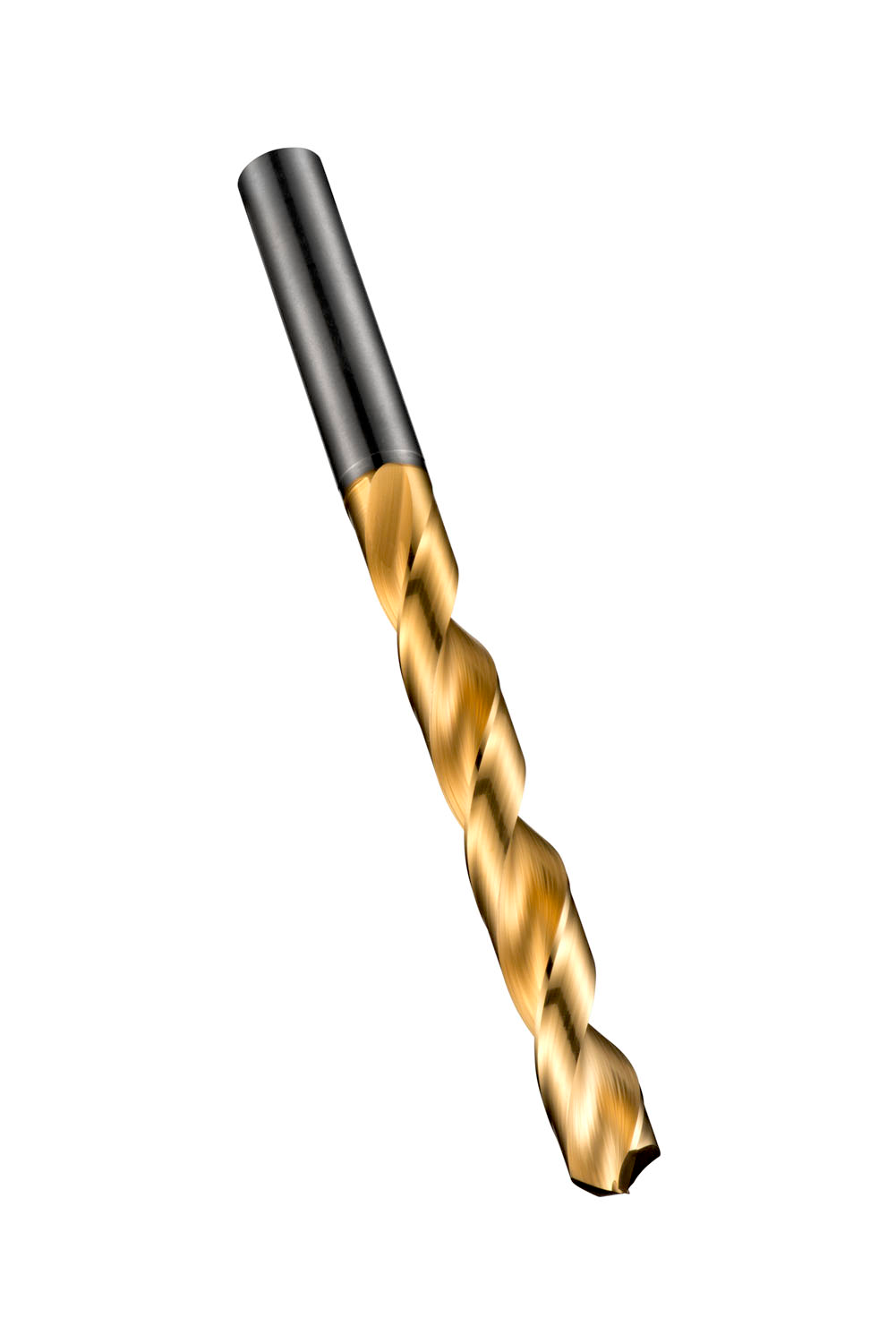

High-performance CDX drill with straight shank, diameter 9mm with an overall length of 125mm and flute length of 81mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.2420 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760115886
Product number (SAP): 86019814
Ordering code ANSI: R5109.0
Product Line: CDX
Gross weight – grams: 88.2
Cutting diameter – millimeter (DC): 9 mm
Cutting diameter – inch (DC): 0.3543 inch
Length chip flute – millimeter (LCF): 81 mm
Overall length – millimeter (OAL): 125 mm
Connection diameter – millimeter (DCON MS): 9 mm
Length chip flute – inch (LCF): 3.189 inch
ISO: R5109.0

Brand

DORMER
