DORMER R52011.0 Carbide Drills

Product Code: R52011.0

$249.26$226.60 Ex. GST

Product Code: R52011.0 SKU R52011.0 Categories , ,
DORMER R52011.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

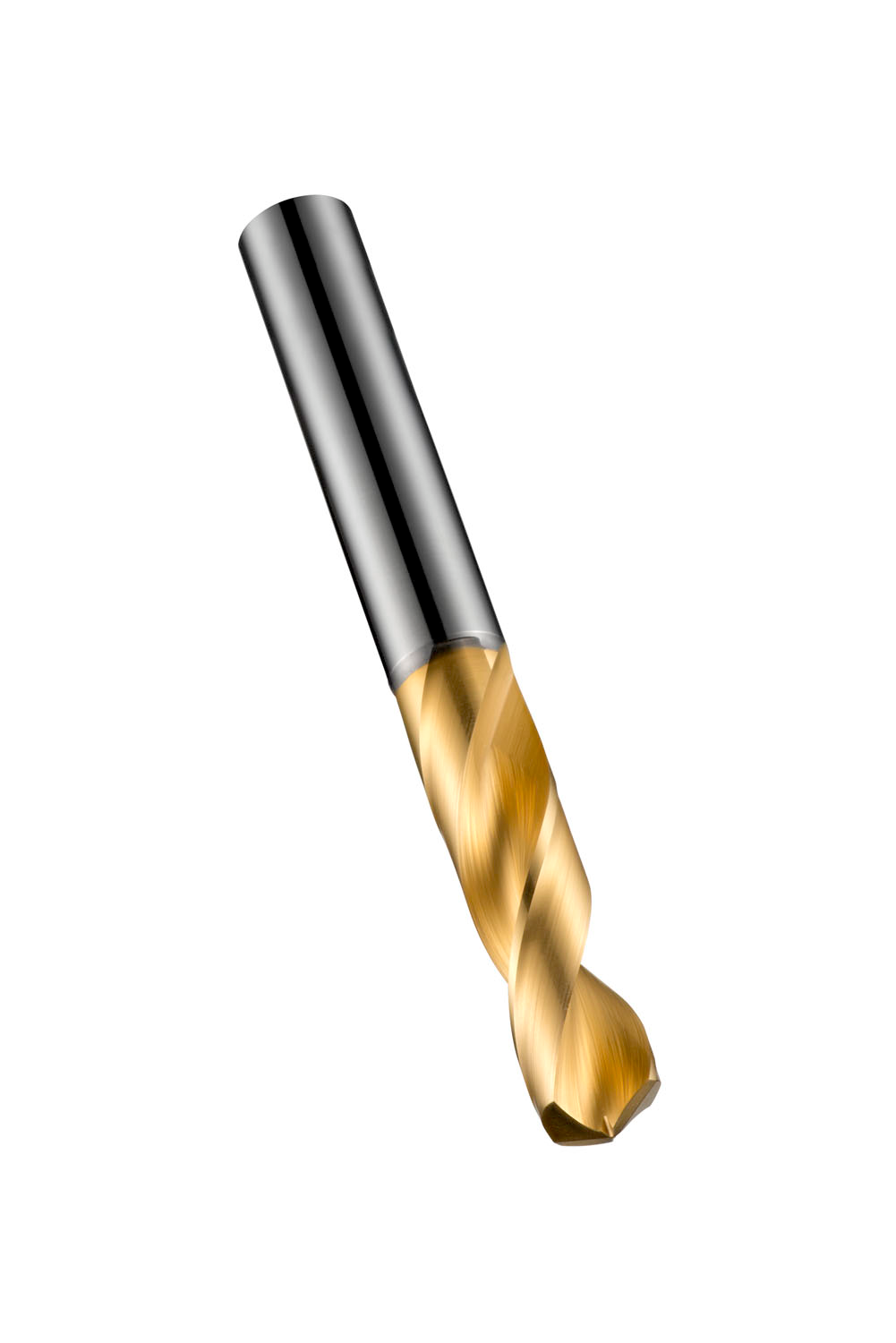

High-performance CDX drill with straight shank, diameter 11mm with an overall length of 95mm and flute length of 47mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.2420 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760115961
Product number (SAP): 86019831
Ordering code ANSI: R52011.0
Product Line: CDX
Gross weight – grams: 102.6
Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.4331 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 95 mm
Connection diameter – millimeter (DCON MS): 11 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: R52011.0

Brand

DORMER
