DORMER R5203.5 Carbide Drills

Product Code: R5203.5

$91.77$83.43 Ex. GST

Product Code: R5203.5 SKU R5203.5 Categories , ,
DORMER R5203.5 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

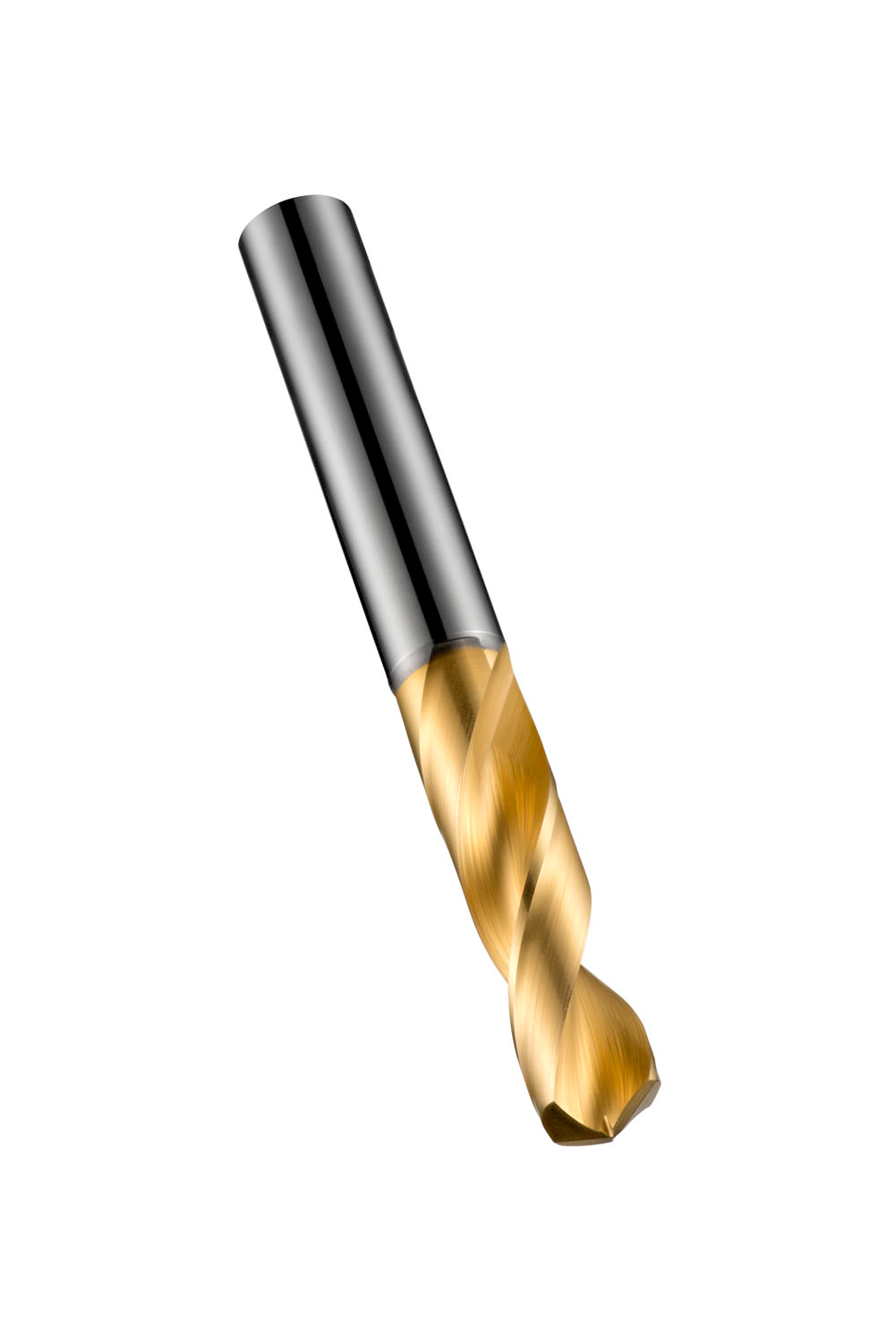

High-performance CDX drill with straight shank, diameter 3.5mm with an overall length of 52mm and flute length of 20mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.0891 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760116111
Product number (SAP): 86019864
Ordering code ANSI: R5203.5
Product Line: CDX
Gross weight – grams: 8.9
Cutting diameter – millimeter (DC): 3.5 mm
Cutting diameter – inch (DC): 0.1378 inch
Length chip flute – millimeter (LCF): 20 mm
Overall length – millimeter (OAL): 52 mm
Connection diameter – millimeter (DCON MS): 3.5 mm
Length chip flute – inch (LCF): 0.7874 inch
ISO: R5203.5

Brand

DORMER
