DORMER R5203/8 Carbide Drills

Product Code: R5203/8

$190.34$173.04 Ex. GST

Product Code: R5203/8 SKU R5203/8 Categories , ,

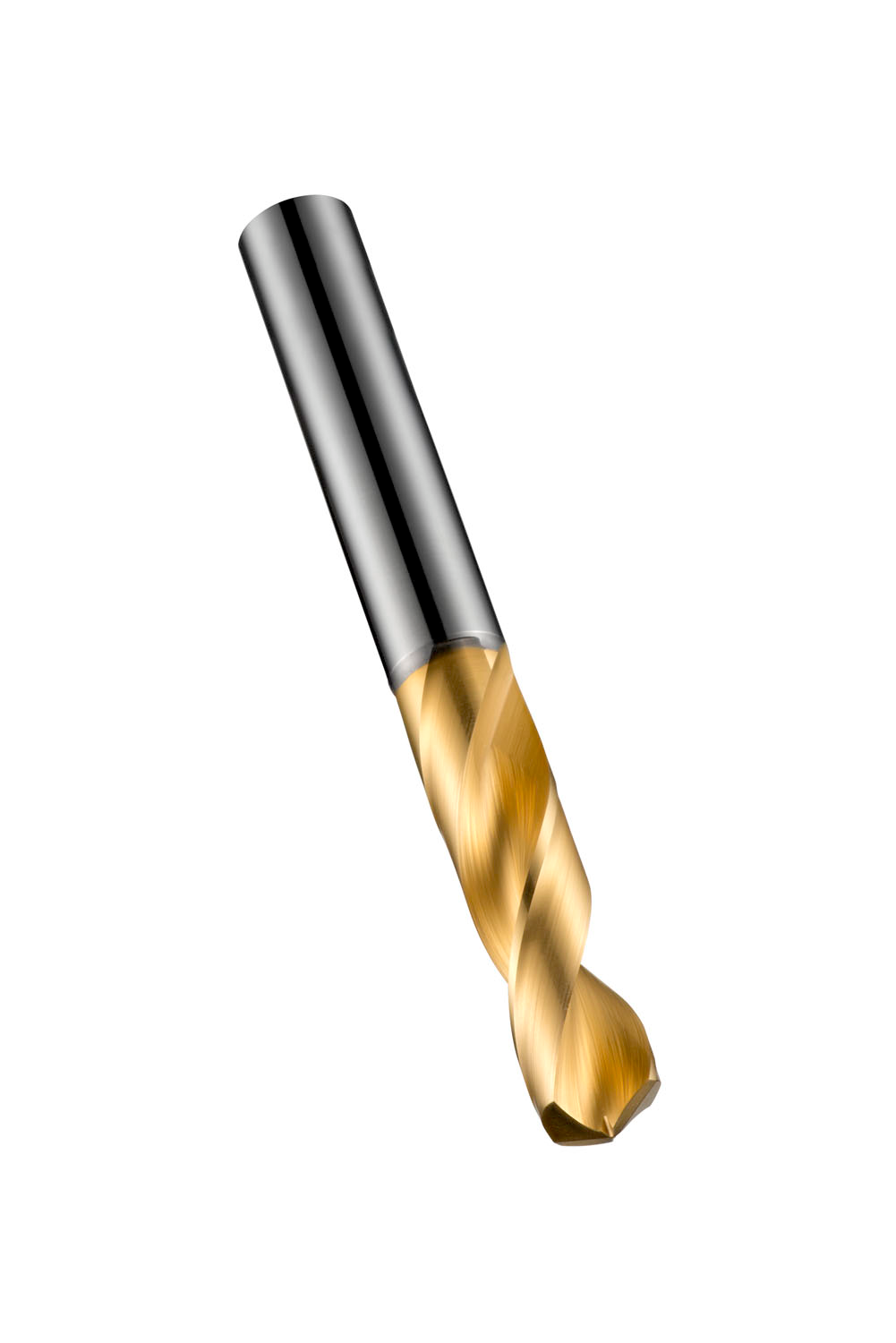

DORMER R5203/8 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance CDX drill with straight shank, diameter 0.3748″ (3/8) with an overall length of 89mm and flute length of 43mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.1848 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760210826
Product number (SAP): 86019870
Ordering code ANSI: R5203/8
Product Line: CDX
Gross weight – grams: 74
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – millimeter (DC): 9.52 mm
Cutting diameter – inch (DC): 0.3748 inch
Length chip flute – millimeter (LCF): 43 mm
Overall length – millimeter (OAL): 89 mm
Connection diameter – millimeter (DCON MS): 9.52 mm
Length chip flute – inch (LCF): 1.6929 inch
ISO: R5203/8

Brand

DORMER
