DORMER R5205.0 Carbide Drills

Product Code: R5205.0

$109.90$99.91 Ex. GST

Product Code: R5205.0 SKU R5205.0 Categories 04 - SC Drills, CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

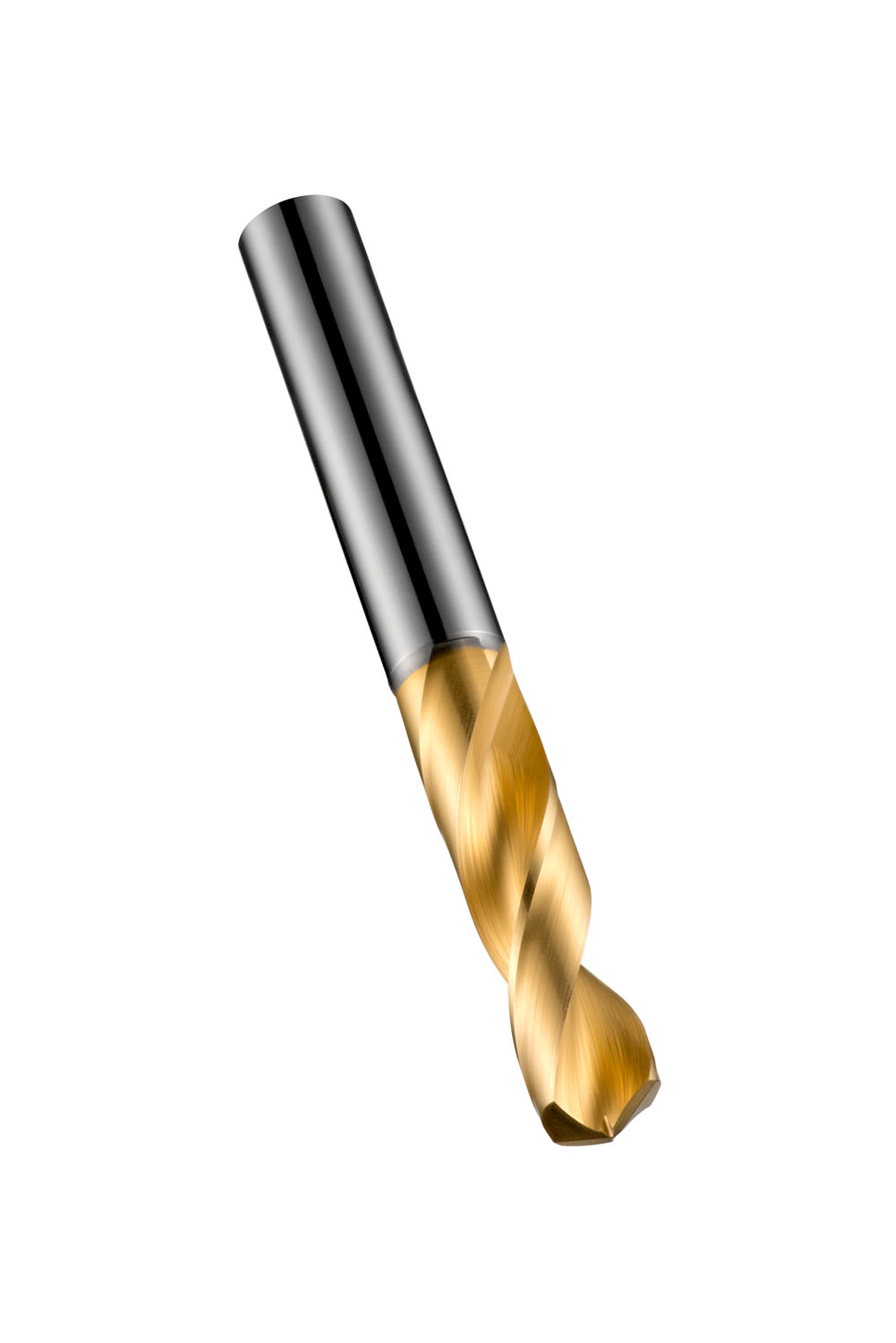

High-performance CDX drill with straight shank, diameter 5mm with an overall length of 62mm and flute length of 26mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight	0.1067 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760116265 Product number (SAP): 86019882 Ordering code ANSI: R5205.0 Product Line: CDX Gross weight: 18.8 g Cutting diameter (DC): 5 mm / 0.1969 inch Length chip flute (LCF): 26 mm / 1.0236 inch Overall length (OAL): 62 mm Connection diameter (DCON MS): 5 mm ISO: R5205.0
